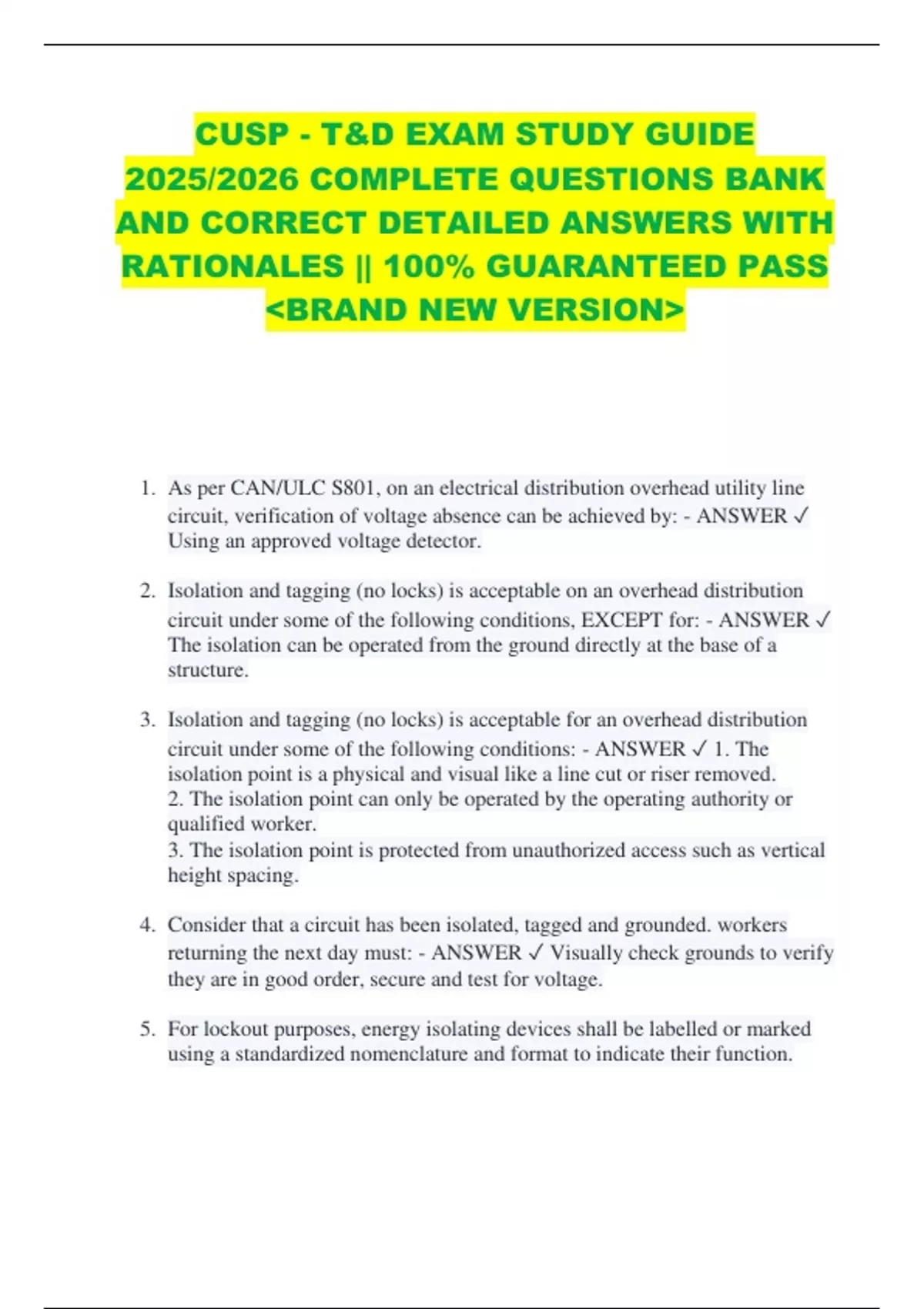

CUSP - T&D EXAM STUDY GUIDE
2025/2026 COMPLETE QUESTIONS BANK
AND CORRECT DETAILED ANSWERS WITH
RATIONALES || 100% GUARANTEED PASS
<BRAND NEW VERSION>
1. As per CAN/ULC S801, on an electrical distribution overhead utility line
circuit, verification of voltage absence can be achieved by: - ANSWER ✓
Using an approved voltage detector.
2. Isolation and tagging (no locks) is acceptable on an overhead distribution
circuit under some of the following conditions, EXCEPT for: - ANSWER ✓
The isolation can be operated from the ground directly at the base of a
structure.
3. Isolation and tagging (no locks) is acceptable for an overhead distribution
circuit under some of the following conditions: - ANSWER ✓ 1. The
isolation point is a physical and visual like a line cut or riser removed.
2. The isolation point can only be operated by the operating authority or
qualified worker.
3. The isolation point is protected from unauthorized access such as vertical
height spacing.
4. Consider that a circuit has been isolated, tagged and grounded. workers
returning the next day must: - ANSWER ✓ Visually check grounds to verify
they are in good order, secure and test for voltage.
5. For lockout purposes, energy isolating devices shall be labelled or marked
using a standardized nomenclature and format to indicate their function.
, Identification shall include: - ANSWER ✓ The equipment type, energy type,
and magnitude.
6. Utilities often use a permitting system due to special circumstances of which
conventional lockout is impracticable. The following is NOT a justified
approach to this process: - ANSWER ✓ The isolation points are only simple
single step actions.
7. A high voltage utility or electrical company is authorized to use Complex
Lockout (tag permitting) under what regulatory condition: - ANSWER ✓ A
variance application has been approved by the provincial authority.
8. Static created while fueling a commercial motor vehicle could be controlled
by: - ANSWER ✓ Keeping the fuel nozzle in contact with the fuel spout of
the vehicle.
9. When describing core leadership qualities, commanding respect and
exhibiting respect for others are important qualities. Other important core
qualities include: - ANSWER ✓ Capable of clear communication, trains
effectively, gives feedback and follows up.
10.A truck driver maneuvers a corner and accelerates to posted speed, slows to
accommodate traffic ahead, then accelerates again, keeping flow with traffic.
Suddenly he hears a siren and sees an ambulance approaching from behind;
he touches the brake, looks for a clear space, signals and moves right to
allow the emergency vehicle to pass. In correct order, which two decision-
making modes has the driver demonstrated? - ANSWER ✓ Skill-based and
rule-based
11.Hazard controls are measured, audited and evaluated: - ANSWER ✓ To
ensure that the control methods designed for the hazard are appropriate and
effective.
12.T/F: Bonding can be defined as the physical act of electrically connecting
two or more pieces of equipment together to ensure they are as close as
possible to the same electrical potential. - ANSWER ✓ True
,13.In rural areas, the neutral is grounded much less frequently. As a result, the
neutral may often be at potential ____ than that of ground. - ANSWER ✓
Higher
14.T/F: An isolated (de-energized) line can accidentally be re-energized from
equipment failure, human error, induction and a lightning strike. - ANSWER
✓ True
15.T/F: Wood poles have varying levels of resistance depending on such factors
as age, moisture, and wood preservatives. - ANSWER ✓ True
16.T/F: Grounding jumpers should be sized according to the maximum
available fault current at the point of grounding. - ANSWER ✓ True
17.T/F: Except for a running ground, all grounds shall be installed using a live
line tool (hot stick). - ANSWER ✓ True
18.T/F: You should always jumper the side phases to the center phase. You
should never jumper an outside phase to the other outside phase. - ANSWER
✓ True
19.If you are a ground rod, install it as ___ ___ the work area as possible,
preferably away from the roadside. - ANSWER ✓ Close to.
20.In the event of a fault connection, large electrical ground gradients can be
generated around the ground rod. These in turn can result in dangerous
_____ potentials. - ANSWER ✓ Step
21.T/F: In a substation, all non-energized substation components are electrically
bonded to a mat beneath the substation. - ANSWER ✓ True
22.T/F: In a proper conductor stringing setup, the conductor, the equipment,
and the ground gradient mat are electrically connected so they can be as
close as possible to the same potential> - ANSWER ✓ True
23.T/F: When stringing conductors, there must be a running ground installed on
each conductor and sub-conductor. - ANSWER ✓ True
, 24.T/F: Before installing ground clamps on a conductor or buss, the conductor
or buss and the clamp must be cleaned using a wire brush. - ANSWER ✓
True
25.When installing a grounding cluster bracket, the cluster bracket should be
installed as ___________ the line workers feet as possible. - ANSWER ✓
Close to
26.When installing grounds, the ground end connection must be installed
__________ using a live line tool. - ANSWER ✓ First
27.When removing grounds, the ground end connection must be removed
_________ using a live line tool. - ANSWER ✓ Last
28.T/F: Grounds, when installed should be as short and straight as possible.
Ground cables should never be coiled because of the act of coiling the
ground can lower the cables ability to conduct current. - ANSWER ✓ True
29.single bolt, parallel groove connector - ANSWER ✓ a type of mechanical
connector that consists of a single threaded bold that fits through two plates
30.Which of the following is usually not the generating voltage?
A. 11 kV
B. 13.2 kV
C. 9.9 kV
D. 6.6 kV - ANSWER ✓ C. 9.9 kV
31.The fact that a conductor carries more current on the surface as compared to
core is known as
A. corona
B. permeability
C. unsymmetrical fault
D. skin effect - ANSWER ✓ D. skin effect
32.Transmission efficiency increases as
