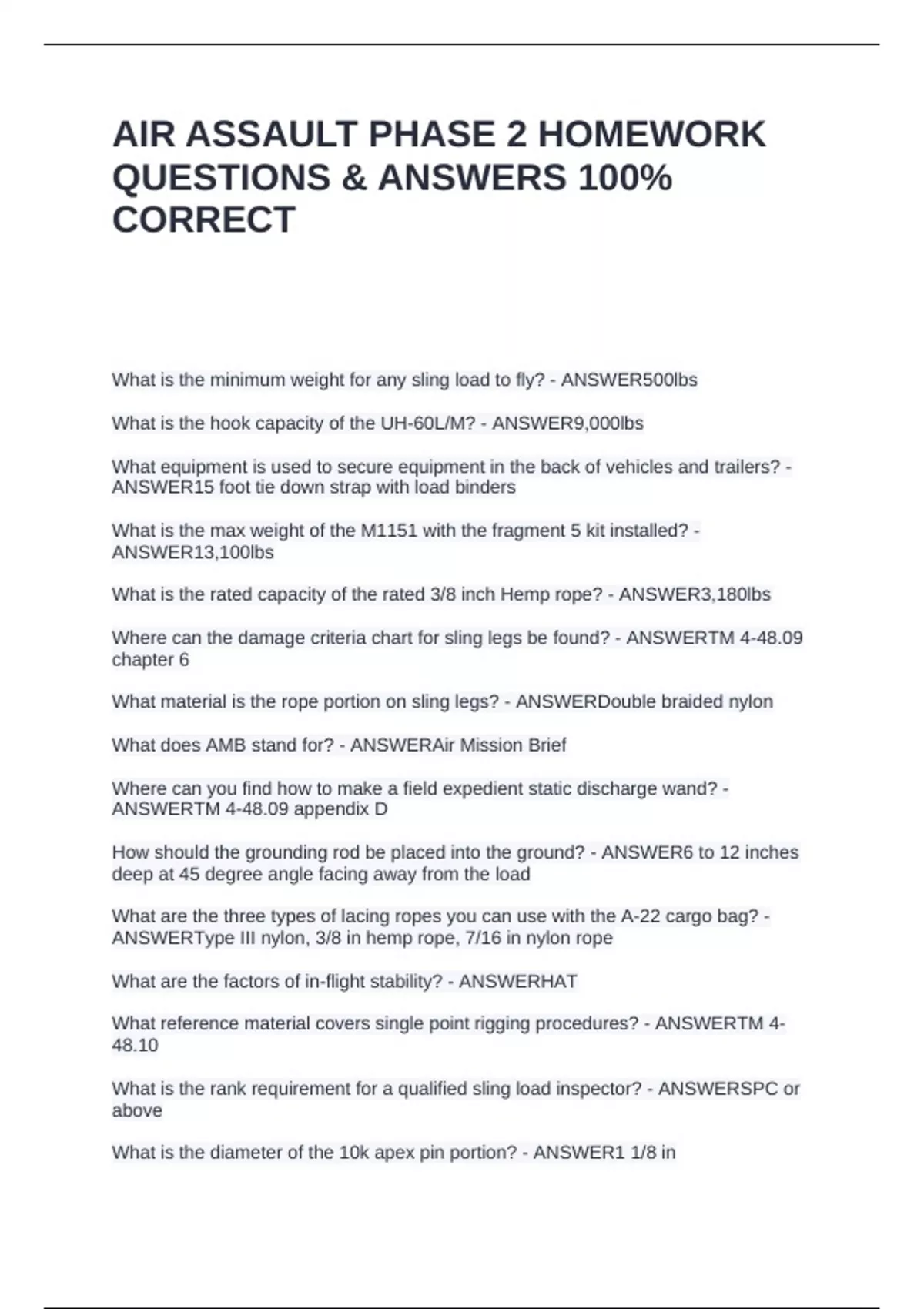

AIR ASSAULT PHASE 2 HOMEWORK
QUESTIONS & ANSWERS 100%
CORRECT
What is the minimum weight for any sling load to fly? - ANSWER500lbs
What is the hook capacity of the UH-60L/M? - ANSWER9,000lbs
What equipment is used to secure equipment in the back of vehicles and trailers? -
ANSWER15 foot tie down strap with load binders
What is the max weight of the M1151 with the fragment 5 kit installed? -
ANSWER13,100lbs
What is the rated capacity of the rated 3/8 inch Hemp rope? - ANSWER3,180lbs
Where can the damage criteria chart for sling legs be found? - ANSWERTM 4-48.09
chapter 6
What material is the rope portion on sling legs? - ANSWERDouble braided nylon
What does AMB stand for? - ANSWERAir Mission Brief
Where can you find how to make a field expedient static discharge wand? -
ANSWERTM 4-48.09 appendix D
How should the grounding rod be placed into the ground? - ANSWER6 to 12 inches
deep at 45 degree angle facing away from the load
What are the three types of lacing ropes you can use with the A-22 cargo bag? -
ANSWERType III nylon, 3/8 in hemp rope, 7/16 in nylon rope
What are the factors of in-flight stability? - ANSWERHAT
What reference material covers single point rigging procedures? - ANSWERTM 4-
48.10
What is the rank requirement for a qualified sling load inspector? - ANSWERSPC or
above
What is the diameter of the 10k apex pin portion? - ANSWER1 1/8 in
, What are the three units involved in a sling load operation? - ANSWERSupported
unit, Aviation unit, Receiving unit
What is the primary lift point on the 500 gallon fuel blivet? - ANSWER5/8 screw pin
clevis
How often should you inspect sling load equipment? - ANSWERBefore and after
each use, and/or every six months
What is the least preferred method of improving in-flight stability? -
ANSWERReducing flight speed
What are the phases of a sling load operation? - ANSWER1.) preparation in rigging
2.) inspection and preparation of rigging
3.) sling load operation itself
What is the rated capacity of the green and black bottom loop cargo hook reach
pendant? - ANSWER11,000lbs
What is the maximum weight of a single fuel blivet? - ANSWER275lbs
What is the rated capacity of a single 25k sling leg? - ANSWER6250lbs
What is the hook capacity of the fore or aft cargo hooks individually on a CH-47? -
ANSWER17,000lbs
What is the weight of a complete 10k sling set? - ANSWER52lbs
What is the weight of a complete 25k sling set? - ANSWER114lbs
What is the link count for the cargo net? - ANSWER3
How many breakaways are required on the cargo net? - ANSWER3 breakaways
How can the large clevis be used? - ANSWERAs a field expedient apex
Where can you find DA Form 7382? - ANSWERTM 4-48.09 Appendix I
When a link count is 10 or less, how will excess links be secured? -
ANSWERSecured to one of the standing ends, not bac to itself (Excess)
What is the rated capacity of the black load binder? - ANSWER10,000lbs
What are the dimensions of the green cargo net? - ANSWER15x15ft
What is the link count for the single fuel blivet? - ANSWER3 at each lift point
What is the rule of thumb when inspecting the stitching on the A-22 cargo bag? -
ANSWER3 consecutive broken stiches, or 5 in an area
