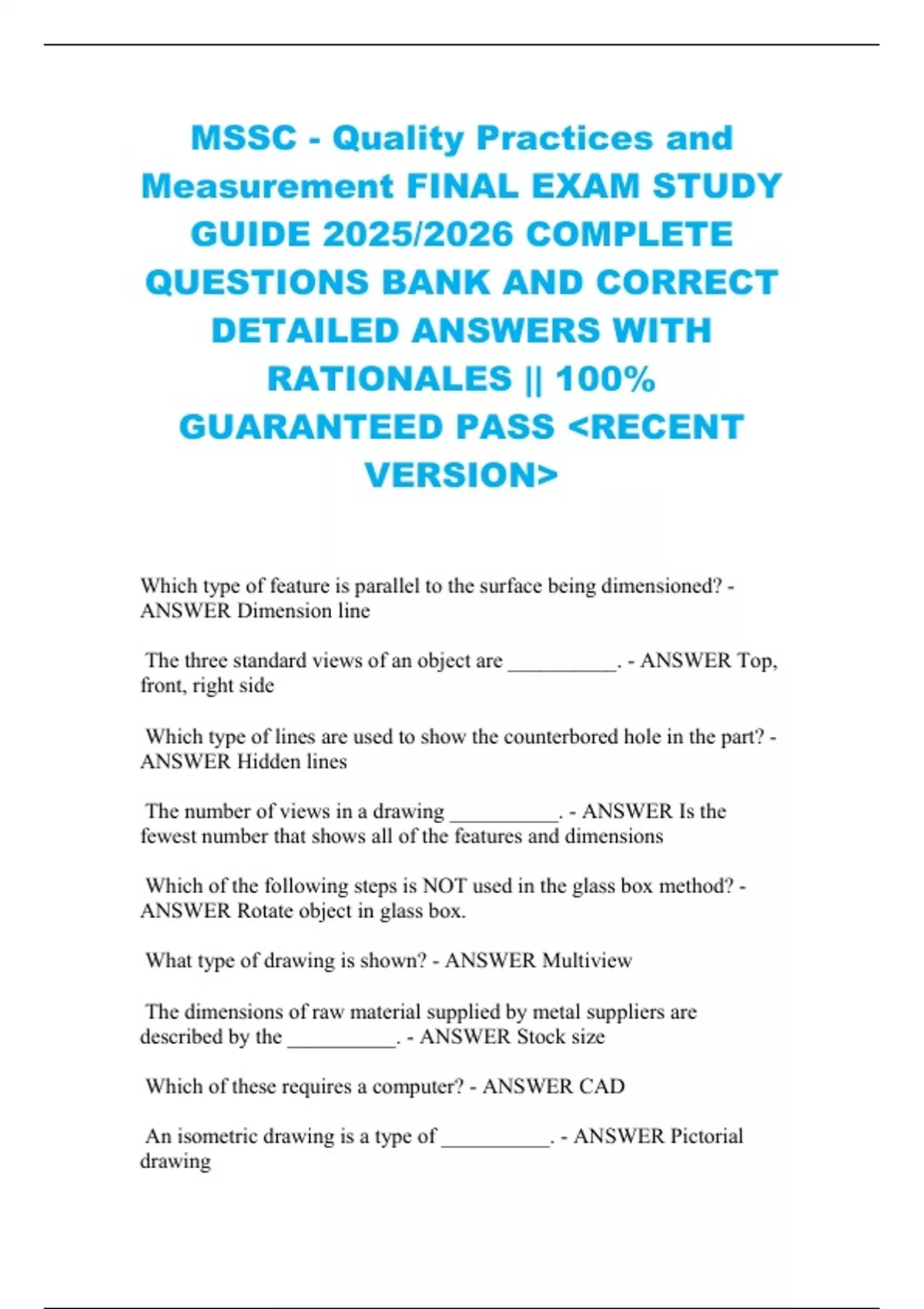

MSSC - Quality Practices and
Measurement FINAL EXAM STUDY
GUIDE 2025/2026 COMPLETE
QUESTIONS BANK AND CORRECT
DETAILED ANSWERS WITH
RATIONALES || 100%
GUARANTEED PASS <RECENT
VERSION>
Which type of feature is parallel to the surface being dimensioned? -
ANSWER Dimension line
The three standard views of an object are __________. - ANSWER Top,
front, right side
Which type of lines are used to show the counterbored hole in the part? -
ANSWER Hidden lines
The number of views in a drawing __________. - ANSWER Is the
fewest number that shows all of the features and dimensions
Which of the following steps is NOT used in the glass box method? -
ANSWER Rotate object in glass box.
What type of drawing is shown? - ANSWER Multiview
The dimensions of raw material supplied by metal suppliers are
described by the __________. - ANSWER Stock size
Which of these requires a computer? - ANSWER CAD
An isometric drawing is a type of __________. - ANSWER Pictorial
drawing
,In the graphic shown, the two circles are __________. - ANSWER
Concentric
Dimensions are used to specify the __________ and location of the
features of an object. - ANSWER Size
What feature in the figure shown is a Chamfer? - ANSWER D
A __________ dimension is described in inches per foot. - ANSWER
Shaft taper
What is the order of precedence of lines in a drawing? - ANSWER
Object, Hidden, Center
Which of the following is not one of the six rules for dimensioning an
object? - ANSWER Dimension hidden lines
Engineers sometimes use a __________ to measure angles on a drawing.
- ANSWER Protractor
What dimension is indicated in this graphic? - ANSWER Height
There are 60 minutes of arc in one __________. - ANSWER Degree
In manufacturing, a blueprint is also called what? - ANSWER A
technical drawing
The distance across the flats of the hex head shown in the part drawing is
__________ inches. - ANSWER 2 ¼
The length of the part shown in the drawing is __________ inches. -
ANSWER 9 ¾
Which type best describes the line indicated in the graphic? - ANSWER
Object Line
Which of the following bolts is a grade 2? - ANSWER A
The hole shown in the graphic is a __________ hole. - ANSWER
Counterbore
, What are the two types of assembly drawings? - ANSWER Exploded
and basic
A sectional view __________. - ANSWER All of the above
Which of the following is not used to specify a threaded fastener? -
ANSWER Minor diameter
Two types of threads are __________. - ANSWER Internal and external
In the assembly drawing shown, part 3 screws into part __________. -
ANSWER 4
The material that will be used to create the gear is indicated in the part
drawing's title block to be __________. - ANSWER Cast iron
In a threaded fastener assembly what is designed to protect the threads? -
ANSWER Shank
Manufacturing workers can use a calibrated torque wrench to
__________. - ANSWER Measure the proper amount of torque
The part of a drawing that indicates that the drawing has the most up to
date information on it is __________. - ANSWER Drawing revision level
What type hole is shown in the figure? - ANSWER Counterbored
The minor diameter of a screw thread is measured at the __________. -
ANSWER Root of screw thread
Section lines in a sectional view are __________. - ANSWER All of the
above
To establish on a drawing that 1/4 inch equals 1 inch, the designer would
write __________. - ANSWER 1/4=1
Metals treated by __________ processes become soft. - ANSWER
Annealing
Where would you look in a title block to see if there has been changes? -
ANSWER Revision number
