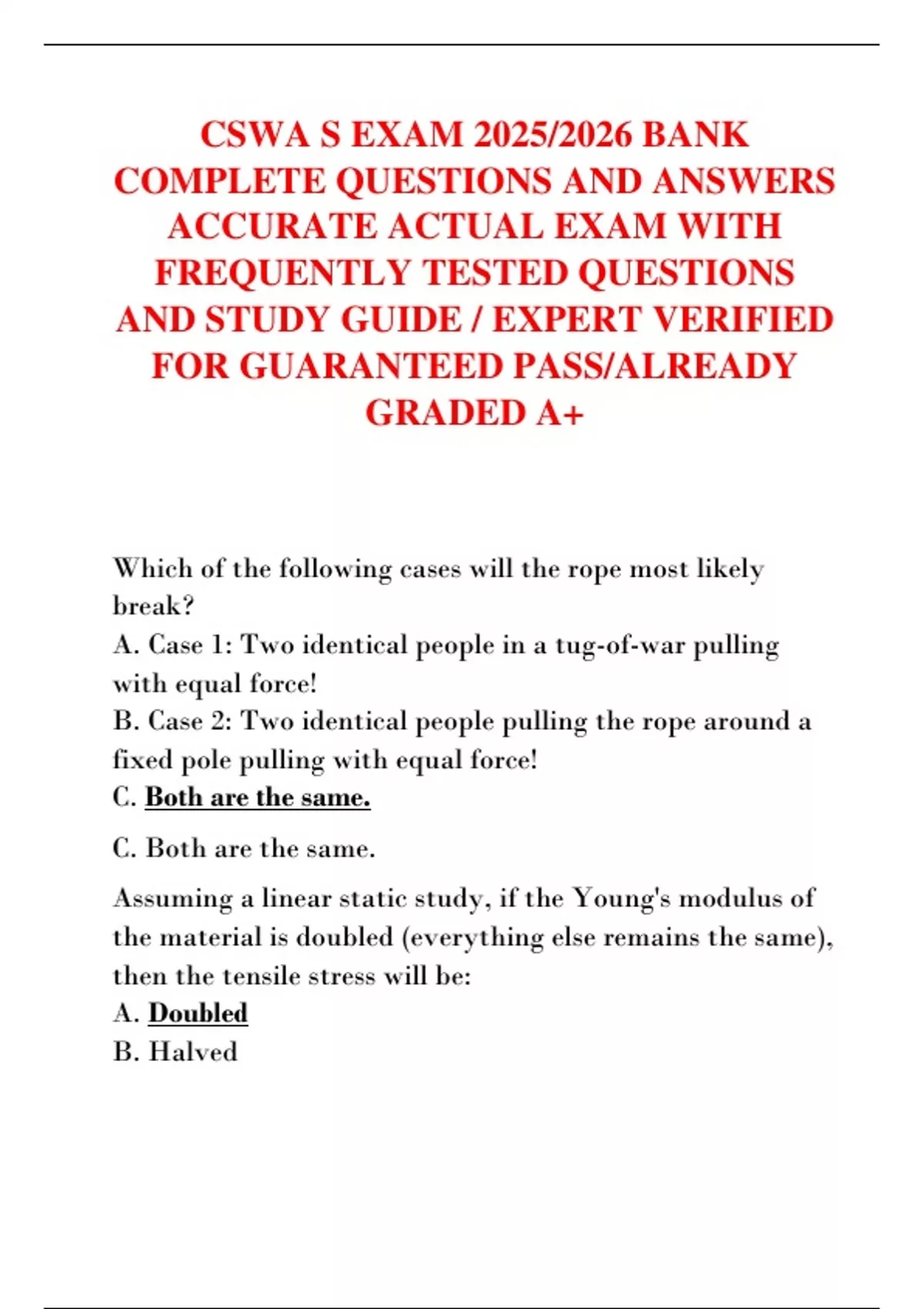

CSWA S EXAM 2025/2026 BANK
COMPLETE QUESTIONS AND ANSWERS
ACCURATE ACTUAL EXAM WITH
FREQUENTLY TESTED QUESTIONS
AND STUDY GUIDE / EXPERT VERIFIED
FOR GUARANTEED PASS/ALREADY
GRADED A+
Which of the following cases will the rope most likely
break?
A. Case 1: Two identical people in a tug-of-war pulling
with equal force!
B. Case 2: Two identical people pulling the rope around a
fixed pole pulling with equal force!
C. Both are the same.
C. Both are the same.
Assuming a linear static study, if the Young's modulus of
the material is doubled (everything else remains the same),
then the tensile stress will be:
A. Doubled
B. Halved
,C. Remains the same
D. Need more information
A. Doubled
Is it possible to model breaking of a glass on the floor using
linear Static analysis?
A. Yes
B. No
B. No
The structure displayed in the following illustration is best
analyzed using:
A. Shell elements
B. Solid elements
C. Beam elements
D. A mixture of Beam and Shell elements
C. Beam Elements
The statement that the displacement at a particular
location in a specific direction can be larger than the
resultant displacement at that location is:
A. True
B. False
B. False
Which of the following is not an available connector type
that can be added to a simulation study?
,A. Pin
B. Bolt
C. Hinge
D. Spring
C. Hinge
When defining a Bolt connector type, which of the
following is not required to be defined?
A. The diameter of the shank
B. The bolt material
C. The diameter of the head.
D. The thread count.
D. The thread count
A "Contact" interaction type allows parts to move away
from one another but not pass through one another.
A. True
B. False
A. True
Remote loads can only be applied using the global
coordinate system.
B. False
Applying a torque pre-load to a bolt connector creates
stresses in the components that it's connecting.
, A. True
B. False
A. True
When creating the shell definition, each face selected to
create the shell must have a material applied to it.
A. True
B. False
A. True
What is the default color assigned as the "bottom" face of
a shell mesh?
A. Grey
B. Orange
C. White
D. The color of the part model
B. Orange
Which of the following is not an available connector type?
A. Pin
B. Spring
C. Ball
D. Rigid
C. Ball
The advanced meshing option "Enable common nodes
with touching boundaries" must be disabled in order to
