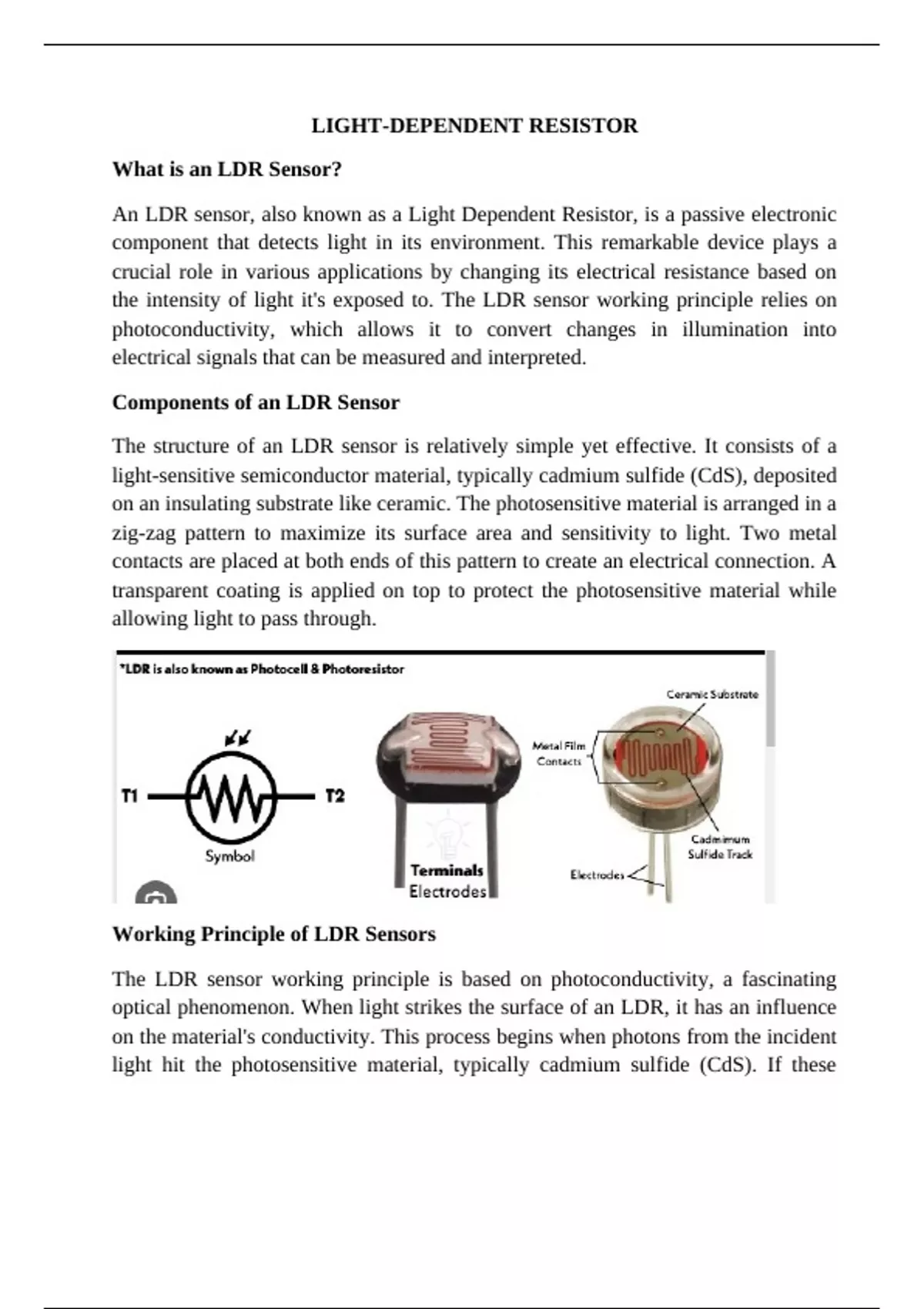

LIGHT-DEPENDENT RESISTOR
What is an LDR Sensor?
An LDR sensor, also known as a Light Dependent Resistor, is a passive electronic
component that detects light in its environment. This remarkable device plays a
crucial role in various applications by changing its electrical resistance based on
the intensity of light it's exposed to. The LDR sensor working principle relies on
photoconductivity, which allows it to convert changes in illumination into
electrical signals that can be measured and interpreted.
Components of an LDR Sensor
The structure of an LDR sensor is relatively simple yet effective. It consists of a
light-sensitive semiconductor material, typically cadmium sulfide (CdS), deposited
on an insulating substrate like ceramic. The photosensitive material is arranged in a
zig-zag pattern to maximize its surface area and sensitivity to light. Two metal
contacts are placed at both ends of this pattern to create an electrical connection. A
transparent coating is applied on top to protect the photosensitive material while
allowing light to pass through.
Working Principle of LDR Sensors
The LDR sensor working principle is based on photoconductivity, a fascinating
optical phenomenon. When light strikes the surface of an LDR, it has an influence
on the material's conductivity. This process begins when photons from the incident
light hit the photosensitive material, typically cadmium sulfide (CdS). If these
,photons have energy greater than the material's bandgap, they excite electrons in
the valence band, causing them to jump to the conduction band.
As more electrons make this transition, the number of charge carriers in the
material increases. This leads to a decrease in the LDR's resistance and an increase
in its conductivity. The relationship between light intensity and resistance in an
LDR is inversely proportional, making it an effective tool for detecting changes in
ambient light levels.
Resistance Changes in Light and Dark
The sensitivity of an LDR sensor to light variations is remarkable. In complete
darkness, an LDR can have a resistance as high as several megaohms. However,
when exposed to bright light, this resistance can drop dramatically to just a few
hundred ohms. This significant change in resistance is what makes LDRs so
valuable in various applications.
The resistance-light intensity relationship is non-linear and follows a hyperbolic
curve. As the light intensity increases, the resistance decreases rapidly at first, then
more gradually. This non-linear behavior allows LDRs to detect a wide range of
light intensities, from near-darkness to bright sunlight.
Light Dependent Resistor Circuit
The LDR sensor works thanks to its internal circuitry. It requires a steady power
supply to function correctly. A bridge rectifier circuit or a battery typically
provides the needed DC voltage. This step is crucial because it converts AC to DC,
, giving the sensor a stable power source. A step-down transformer reduces the
voltage, and a regulator makes it even more precise. This way, the sensor gets the
right amount of power it needs.
The LDR Sensor is key in this circuit. During the day or when light hits the LDR,
its low resistance lets current flow easily. This helps the LDR Sensor module
control lights by directing the current along the easiest path. This makes the LDR
Sensor great for smart, energy-saving solutions like automatically adjusting street
and indoor lights
Types of LDR Sensors
LDR sensors come in various types, each designed to suit different applications
and light detection needs. Understanding these types is crucial for selecting the
right sensor for your project. Let's explore the main categories of LDR sensors and
their unique characteristics.
Intrinsic Photoresistors
Intrinsic photoresistors are the simplest form of LDR sensors. These devices use
pure semiconductors like silicon or germanium without any added impurities. The
LDR working principle in intrinsic photoresistors is straightforward: when light
with sufficient energy hits the semiconductor, it excites electrons, causing them to
jump from the valence band to the conduction band. This process increases the
