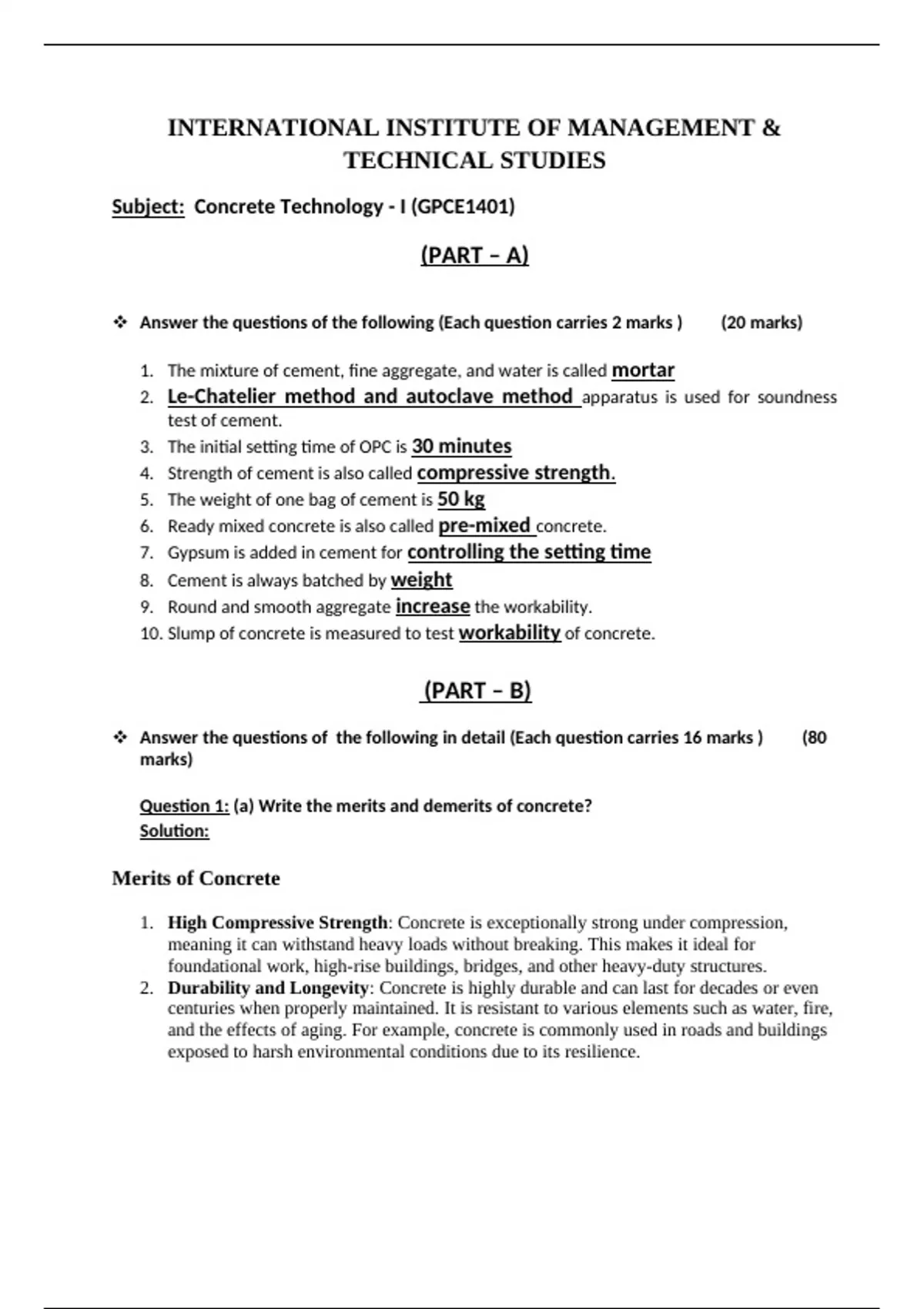

INTERNATIONAL INSTITUTE OF MANAGEMENT &
TECHNICAL STUDIES
Subject: Concrete Technology - I (GPCE1401)
(PART – A)
Answer the questions of the following (Each question carries 2 marks ) (20 marks)
1. The mixture of cement, fine aggregate, and water is called mortar
2. Le-Chatelier method and autoclave method apparatus is used for soundness
test of cement.
3. The initial setting time of OPC is 30 minutes
4. Strength of cement is also called compressive strength.
5. The weight of one bag of cement is 50 kg
6. Ready mixed concrete is also called pre-mixed concrete.
7. Gypsum is added in cement for controlling the setting time
8. Cement is always batched by weight
9. Round and smooth aggregate increase the workability.
10. Slump of concrete is measured to test workability of concrete.
(PART – B)
Answer the questions of the following in detail (Each question carries 16 marks ) (80
marks)
Question 1: (a) Write the merits and demerits of concrete?
Solution:
Merits of Concrete
1. High Compressive Strength: Concrete is exceptionally strong under compression,
meaning it can withstand heavy loads without breaking. This makes it ideal for
foundational work, high-rise buildings, bridges, and other heavy-duty structures.
2. Durability and Longevity: Concrete is highly durable and can last for decades or even
centuries when properly maintained. It is resistant to various elements such as water, fire,
and the effects of aging. For example, concrete is commonly used in roads and buildings
exposed to harsh environmental conditions due to its resilience.
, 3. Fire Resistance: Concrete is non-combustible, making it fire-resistant. It does not burn,
warp, or melt under fire exposure. This makes it an excellent material for enhancing the
safety of buildings, especially in fire-prone areas.
4. Low Maintenance: Concrete structures generally require minimal maintenance over
their lifespan. Unlike wood, which is prone to rot and pests, concrete does not deteriorate
easily, saving time and money on upkeep.
5. Energy Efficiency: Concrete has high thermal mass, meaning it can absorb and store
heat from the environment. This helps maintain consistent indoor temperatures, reducing
the need for additional heating or cooling. As a result, concrete buildings are more
energy-efficient and may reduce long-term energy costs.
6. Versatility: Concrete can be molded into almost any shape, allowing for versatile
applications in construction. It can be used for sidewalks, foundations, flooring, beams,
and more. Additionally, it is adaptable to modern architectural styles, offering both
functional and aesthetic value.
7. Availability and Cost-Effectiveness: Concrete is made from locally available materials
such as cement, sand, and aggregates, which makes it relatively inexpensive. It is also
easy to source and produce, especially in large quantities, making it ideal for large-scale
construction projects.
Demerits of Concrete
1. Low Tensile Strength: Concrete is strong under compression but weak when subjected
to tension. It can crack easily when pulled or stretched. To compensate for this, concrete
is often reinforced with steel bars (rebar) or mesh to improve its tensile strength.
2. Heavy Weight: Concrete is quite dense and heavy, which can be a disadvantage in some
situations. For example, in tall buildings or in areas with weak foundations, the weight of
concrete structures may require additional support or specialized engineering to bear the
load.
3. Cracking: Concrete is prone to cracking, especially when it dries and shrinks, or when
exposed to extreme weather conditions or heavy loads. Cracking can affect the aesthetics
and integrity of concrete structures if not managed properly.
4. Environmental Impact: The production of cement, a key component of concrete, is
energy-intensive and produces a large amount of carbon dioxide (CO₂), contributing to
global warming. The cement industry is responsible for a significant percentage of global
CO₂ emissions, raising concerns about its environmental sustainability.
5. Long Curing Time: Concrete requires time to set and gain strength, a process known as
curing. Depending on the mixture, curing can take anywhere from several days to weeks.
During this period, the concrete is vulnerable to damage from environmental conditions
like temperature fluctuations or excessive moisture.
6. Limited Flexibility: Once concrete has set and hardened, it is a rigid material. Unlike
wood or steel, it cannot be easily adjusted or modified without causing significant
structural damage. This lack of flexibility can make concrete less suitable for certain
applications, especially in dynamic environments or places requiring frequent
adjustments.
7. Difficult to Repair: While concrete is durable, once it is damaged or cracked, repairs can
be challenging. Filling in cracks or restoring integrity may require specialized techniques
, or expensive repairs, which may not always match the original appearance of the
structure.
Conclusion
Concrete remains one of the most popular and widely used construction materials in the world
due to its numerous advantages like strength, durability, fire resistance, and versatility. However,
it is not without its drawbacks, including environmental concerns, low tensile strength, and the
need for proper maintenance and repair. By understanding both the merits and demerits of
concrete, engineers and architects can make informed decisions on how to best use it in
construction projects.
(b) What do you mean by batching? What are the different techniques of batching?
Solution:
Batching in Construction
Batching refers to the process of measuring and combining the ingredients (such as cement,
water, aggregates) in the correct proportions to produce concrete or mortar. It is a crucial step in
concrete production because the quality of the final mix depends heavily on the precise
measurement of these materials. Proper batching ensures that the concrete will have the desired
strength, workability, and durability.
Different Techniques of Batching
Batching can be done in two primary ways: by weight and by volume. Each method has its own
advantages and applications.
1. Weight Batching:
In weight batching, the ingredients of concrete (cement, aggregates, water) are measured by
weight using scales or digital weighers. This method is considered more accurate and reliable
compared to volume batching, ensuring that the proportions of the mix remain consistent. It is
commonly used in large-scale projects where precise mix ratios are critical.
Advantages of weight batching:
Higher accuracy in mix proportions.
Less likelihood of human error.
Ideal for large-scale or industrial concrete production.
