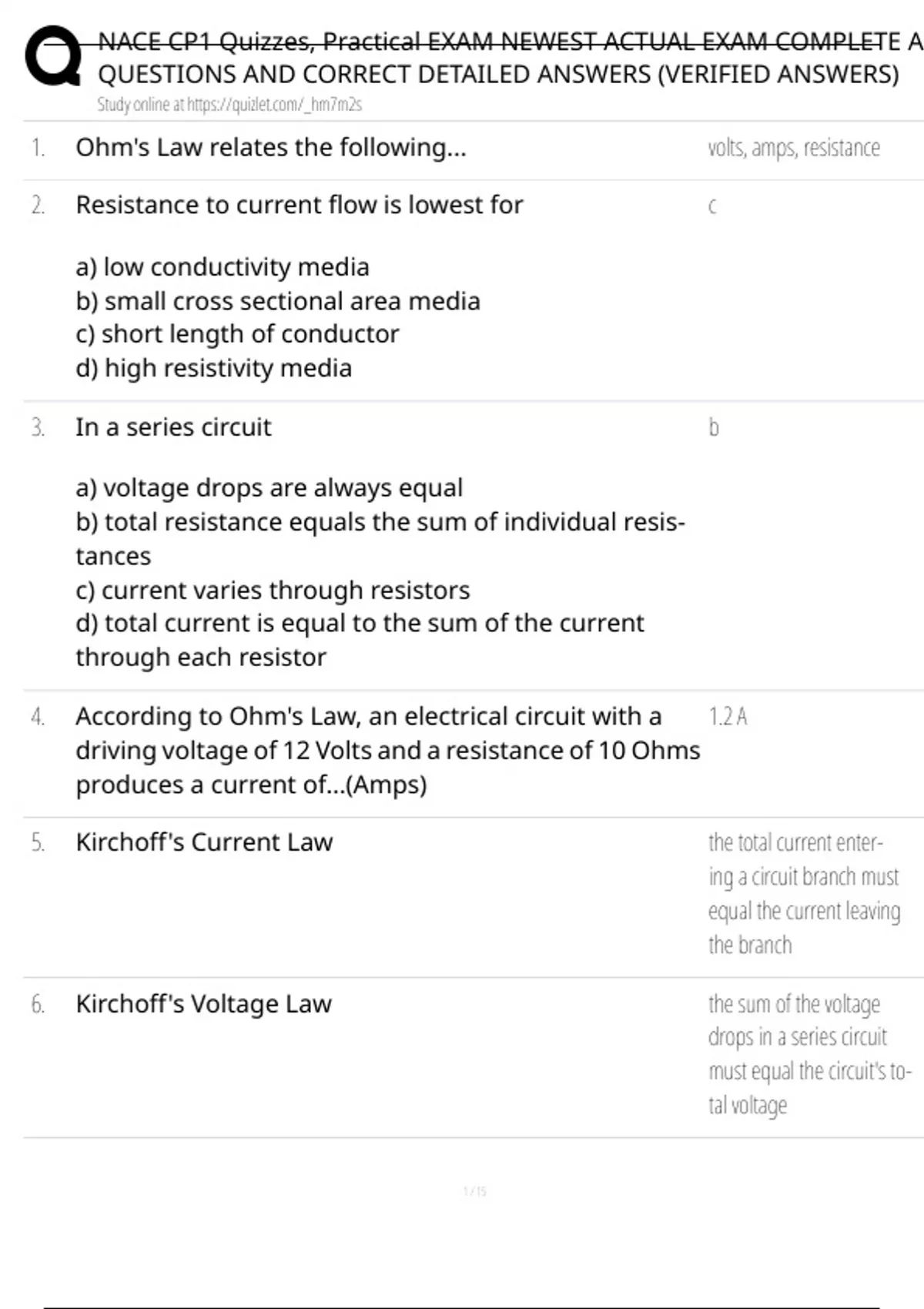

NACE CP1 Quizzes, Practical EXAM NEWEST ACTUAL EXAM COMPLETE A
QUESTIONS AND CORRECT DETAILED ANSWERS (VERIFIED ANSWERS)
Study online at https://quizlet.com/_hm7m2s
1. Ohm's Law relates the following... volts, amps, resistance
2. Resistance to current flow is lowest for c
a) low conductivity media
b) small cross sectional area media
c) short length of conductor
d) high resistivity media
3. In a series circuit b
a) voltage drops are always equal
b) total resistance equals the sum of individual resis-
tances
c) current varies through resistors
d) total current is equal to the sum of the current
through each resistor
4. According to Ohm's Law, an electrical circuit with a 1.2 A
driving voltage of 12 Volts and a resistance of 10 Ohms
produces a current of...(Amps)
5. Kirchoff's Current Law the total current enter-
ing a circuit branch must
equal the current leaving
the branch
6. Kirchoff's Voltage Law the sum of the voltage
drops in a series circuit
must equal the circuit's to-
tal voltage
, NACE CP1 Quizzes, Practical EXAM NEWEST ACTUAL EXAM COMPLETE A
QUESTIONS AND CORRECT DETAILED ANSWERS (VERIFIED ANSWERS)
Study online at https://quizlet.com/_hm7m2s
7. In a series electrical circuit b
a) current is different across each resistor
b) Kirchoff's Voltage Law is obeyed
c) voltage is the same across each resistor
d) total resistance is the sum of the reciprocal of each
resistance
8. In a parallel electrical circuit d
a) total resistance is the sum of all of the resistors
b) current is the same through each resistor
c) voltage is different across each resistor
d) voltage is the same across each resistor
9. The driving voltage of an electrical circuit with a resis- 0.1 V
tance of 1 Ohm and 100 mA is...(Volts)
10. What is the total resistance in a series circuit consisting 13 Ohms
of three resistances: 1 Ohm, 2 Ohms, and 10 Ohms?
11. If a resistance of 0.17 Ohms was measured across a 0.13 Ohm-cm
conductive material L = 1 m, D = 10 cm, what is its
resistivity?
12. Cations are _____ charged ions positively
13. Anions are ______ charged ions negatively
14. Which of the follow is true about an electrochemical b
cell?
a) as polarization decreases, current will decrease
