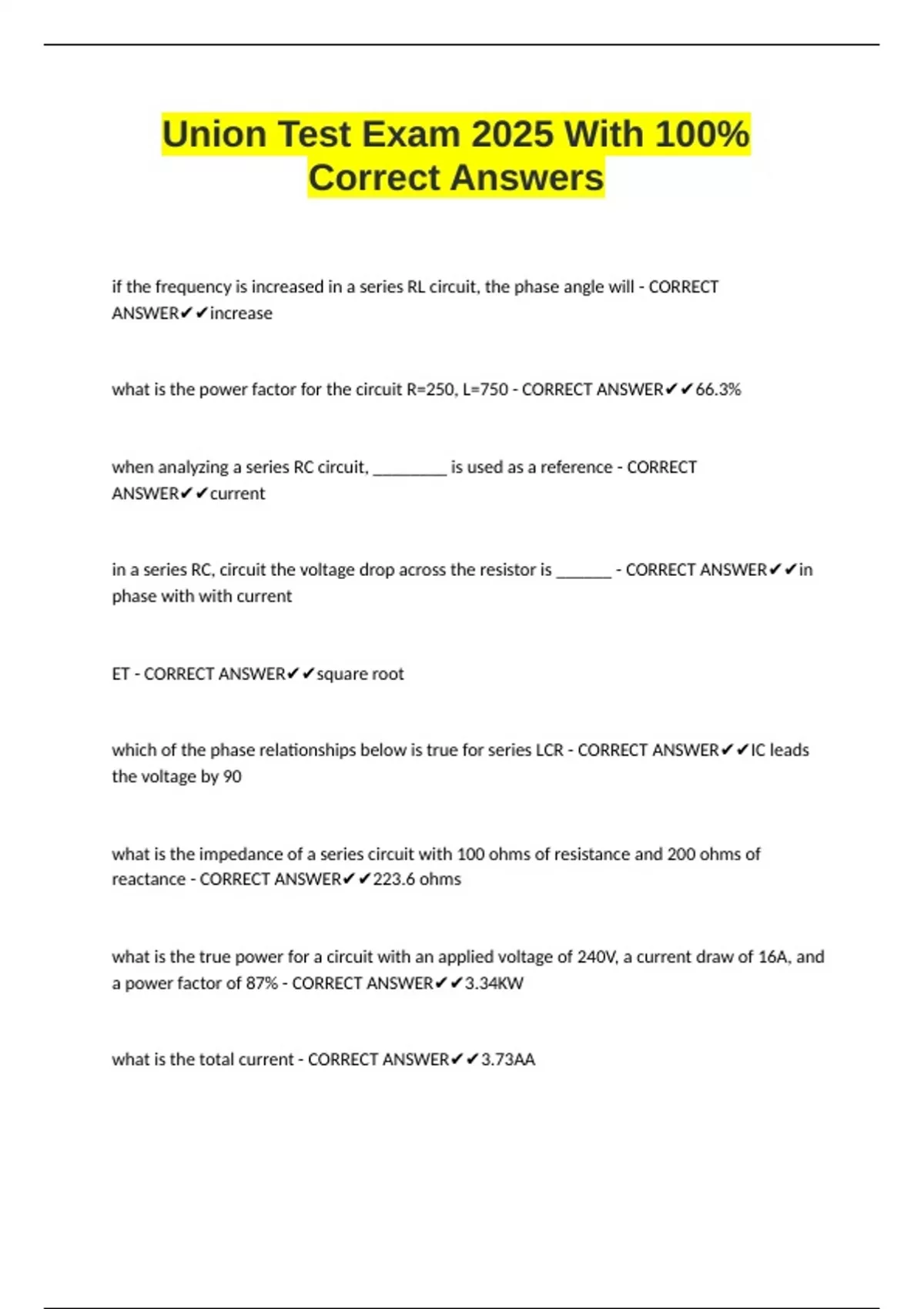

Union Test Exam 2025 With 100%
Correct Answers
if the frequency is increased in a series RL circuit, the phase angle will - CORRECT
ANSWER✔✔increase
what is the power factor for the circuit R=250, L=750 - CORRECT ANSWER✔✔66.3%
when analyzing a series RC circuit, ________ is used as a reference - CORRECT
ANSWER✔✔current
in a series RC, circuit the voltage drop across the resistor is ______ - CORRECT ANSWER✔✔in
phase with with current
ET - CORRECT ANSWER✔✔square root
which of the phase relationships below is true for series LCR - CORRECT ANSWER✔✔IC leads
the voltage by 90
what is the impedance of a series circuit with 100 ohms of resistance and 200 ohms of
reactance - CORRECT ANSWER✔✔223.6 ohms
what is the true power for a circuit with an applied voltage of 240V, a current draw of 16A, and
a power factor of 87% - CORRECT ANSWER✔✔3.34KW
what is the total current - CORRECT ANSWER✔✔3.73AA
