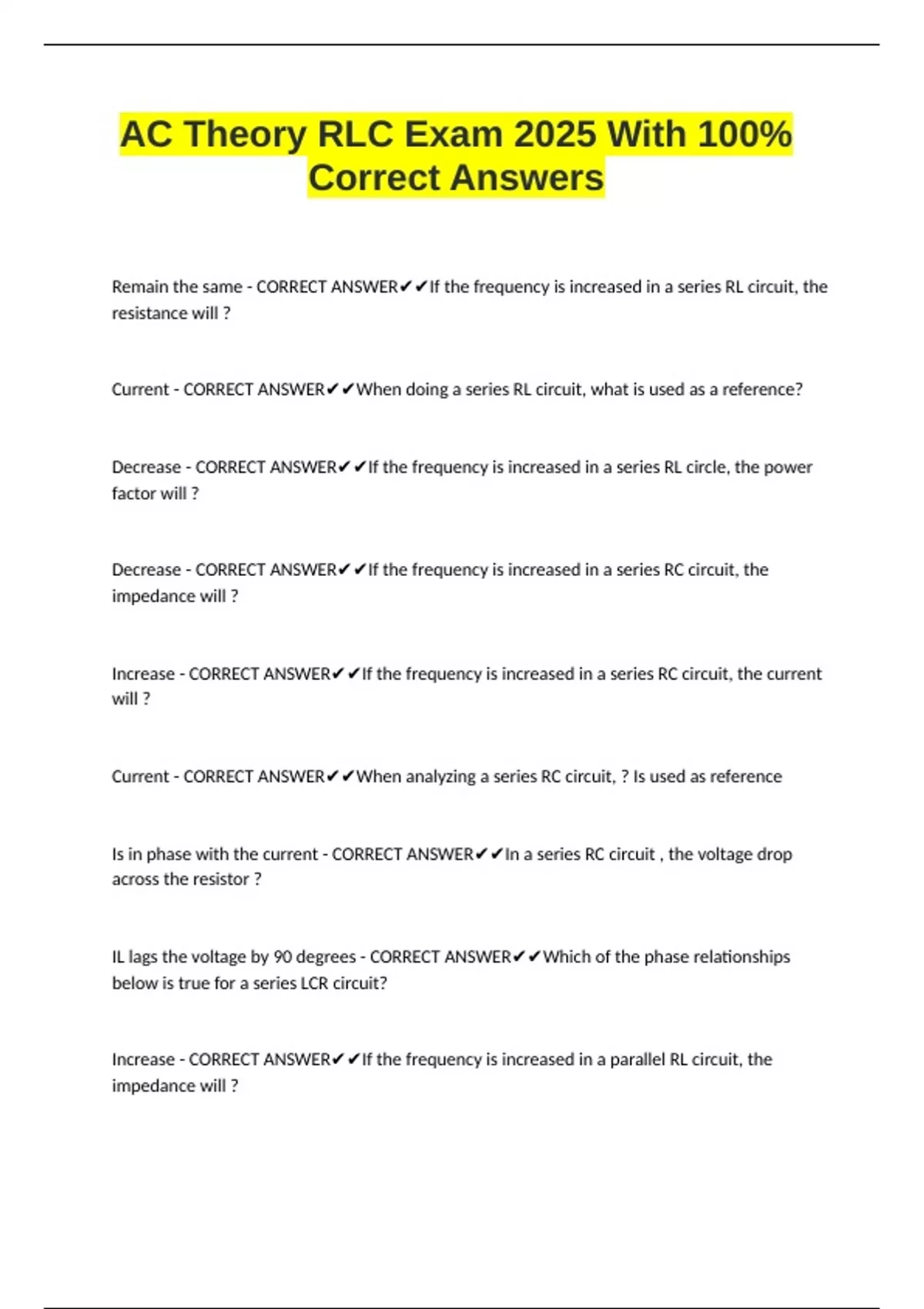

AC Theory RLC Exam 2025 With 100%
Correct Answers
Remain the same - CORRECT ANSWER✔✔If the frequency is increased in a series RL circuit, the
resistance will ?
Current - CORRECT ANSWER✔✔When doing a series RL circuit, what is used as a reference?
Decrease - CORRECT ANSWER✔✔If the frequency is increased in a series RL circle, the power
factor will ?
Decrease - CORRECT ANSWER✔✔If the frequency is increased in a series RC circuit, the
impedance will ?
Increase - CORRECT ANSWER✔✔If the frequency is increased in a series RC circuit, the current
will ?
Current - CORRECT ANSWER✔✔When analyzing a series RC circuit, ? Is used as reference
Is in phase with the current - CORRECT ANSWER✔✔In a series RC circuit , the voltage drop
across the resistor ?
IL lags the voltage by 90 degrees - CORRECT ANSWER✔✔Which of the phase relationships
below is true for a series LCR circuit?
Increase - CORRECT ANSWER✔✔If the frequency is increased in a parallel RL circuit, the
impedance will ?
