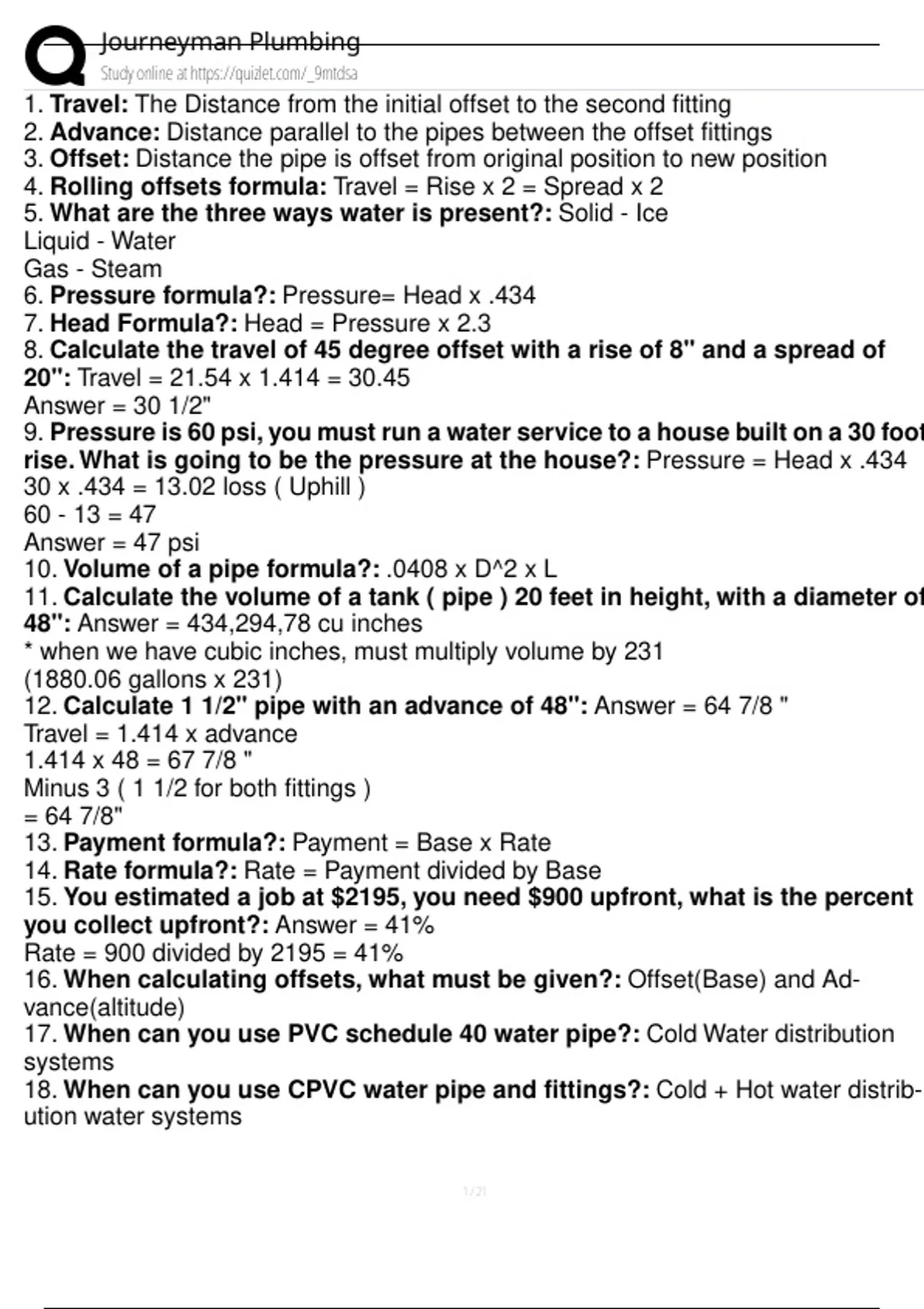

Journeyman Plumbing
Study online at https://quizlet.com/_9mtdsa
1. Travel: The Distance from the initial offset to the second fitting
2. Advance: Distance parallel to the pipes between the offset fittings
3. Offset: Distance the pipe is offset from original position to new position
4. Rolling offsets formula: Travel = Rise x 2 = Spread x 2
5. What are the three ways water is present?: Solid - Ice
Liquid - Water
Gas - Steam
6. Pressure formula?: Pressure= Head x .434
7. Head Formula?: Head = Pressure x 2.3
8. Calculate the travel of 45 degree offset with a rise of 8" and a spread of
20": Travel = 21.54 x 1.414 = 30.45
Answer = 30 1/2"
9. Pressure is 60 psi, you must run a water service to a house built on a 30 foot
rise. What is going to be the pressure at the house?: Pressure = Head x .434
30 x .434 = 13.02 loss ( Uphill )
60 - 13 = 47
Answer = 47 psi
10. Volume of a pipe formula?: .0408 x D^2 x L
11. Calculate the volume of a tank ( pipe ) 20 feet in height, with a diameter of
48": Answer = 434,294,78 cu inches
* when we have cubic inches, must multiply volume by 231
(1880.06 gallons x 231)
12. Calculate 1 1/2" pipe with an advance of 48": Answer = 64 7/8 "
Travel = 1.414 x advance
1.414 x 48 = 67 7/8 "
Minus 3 ( 1 1/2 for both fittings )
= 64 7/8"
13. Payment formula?: Payment = Base x Rate
14. Rate formula?: Rate = Payment divided by Base
15. You estimated a job at $2195, you need $900 upfront, what is the percent
you collect upfront?: Answer = 41%
Rate = 900 divided by 2195 = 41%
16. When calculating offsets, what must be given?: Offset(Base) and Ad-
vance(altitude)
17. When can you use PVC schedule 40 water pipe?: Cold Water distribution
systems
18. When can you use CPVC water pipe and fittings?: Cold + Hot water distrib-
ution water systems
, Journeyman Plumbing
Study online at https://quizlet.com/_9mtdsa
19. What is the blue print symbol for cold water?: Long line - long line - Long line
-
20. Blue print symbol for hot water return line?: Long line short line short line
long line
21. Potable Water, Sanitary Drainage, Fuel Gas piping, Storm Water. Which one
is not included in Plumbing Systems in buildings?: Fuel Gas Piping
22. What is Galvanic action?: Electrolytic chemical reaction between dissimilar
metals such as copper and iron
23. What is the most common scales used in building drawings: 1/8" = 1' and
1/4" = 1 '
24. Wall hung water closet bowls shall be?: Rigidly supported by concealed metal
supports
25. On a gas water heater, what is a thermocouple?: Small electric generator
26. Difference between a sink and a lavatory?: Sinks = functional units Lavatory
= Washing fixture
27. How are drainage and venting in buildings larger than 5 buildings larger
than 5 stories high tested?: You test each 5 story section with a 10 ft head of water
28. What prevents a chemical sink from being damaged?: Continually running
water and being manufactured out of chemical resistance materials
29. What is the purpose of a dip tube on a water heater?: Transfers water from
inlet to bottom of tank and helps prevent backsiphonage by having small hole at the
top of the dip tube
30. Air test on water supply lines?: 1 1/2 times the working pressure or 150 psi,
which ever is larger
31. What is the type of heating element used in electric water heaters?: Resis-
tance heating elements
32. Primary purpose of vent line in a water closet is?: Prevent loss from trap seal
33. What are the 2 primary water sources for public potable drinking water?: -
Surface and ground water
34. What is a cross connection?: When 2 separate piping systems one potable
and one undesirable flow into each other
Example: Garden hose attached to a silcock with the other end lying in a cesspool
35. What is the hydrologic cycle?: A continuous exchange of water among atmos-
phere, the earth, and water bodies
36. What device can be used to add a small amount of water to a floor drain
trap to ensure an adequate trap seal?: Trap Primer
37. What temperature is necessary for brazing and then adding the filler?: 840
degrees Fahrenheit
38. Three dimensional drawing of a plumbing system is called?: Isometric
, Journeyman Plumbing
Study online at https://quizlet.com/_9mtdsa
39. Most common individual vent is called?: A continuous vent
40. A vertical pipe installed to provide circulation of air to and from the
drainage system is called?: A Vent Stack
41. Drain fixture unit rating for a kitchen sink?: 2 DFU
Drain Fixture Unit
42. The fitting that mounts under the drain plug on a bathtub waste and
overflow is called?: Waste Shoe
43. What is the maximum volume of water to flush a water closet?: 1.6 gallons
Energy Policy Act of 1992
44. What valve is used that has a flush device actuated by direct water pres-
sure to supply a fixed quantity of water for flushing devices?: Flushometer
45. What is the drainage pipe extending horizontally from a soil or waste stack
or building drain, with or without sections or branches?: Horizontal branch drain
46. How much does 1 foot of cubic water weigh?: 62 1/2 lbs
47. The distance between the crown weir and top of the trap is?: A Trap Seal
48. What is an Air Gap?: Unobstructed vertical space between the water supply
and flood rim of the receptacle
49. A valve that permits fluid flow in only one direction and close automatically
to prevent back flow is called?: A Check Valve
50. What is the maximum flush volume to a urinal?: 1 gallon per minute
51. How high is the water level in comparison to the overflow tube in a flush
tank assembly?: Level should be 3/4 below top of overflow tube
52. What is PE pipe?: Polyethylene Pipe
Example: CSST tubing, black pipe for wells and sprinkler systems, sold in coils
53. How is PE pipe joined together?: Plastic insert fittings and clamps
54. How long is PVC guaranteed for?: 75 years
55. One pint of glue will fuse approximately how many 1 1/2" joints?: 50
56. Can PVC and ABS use the same PVC Glue?: No, different types of plastic
57. Phantom lines on blueprints stand for?: Moveable parts ( Phantom lines on
blue prints are used to display drain and vent lines)
58. On a blueprint, what does a " Key " tell you?: Keys describe what lines or
specific abbreviations represent
59. The inside diameter of 1 1/2" schedule 40 pipe is?: 1.610"
60. A 3" short sleeve turn may NOT be used in what locations?: In waste lines
where the change in flow is from horizontal to horizontal
61. What could upset a water filled trap?: Back pressure and Siphonage will upset
the trap seal
62. Ejector pumps maybe be connected to a?: WYE fitting in the building drain
