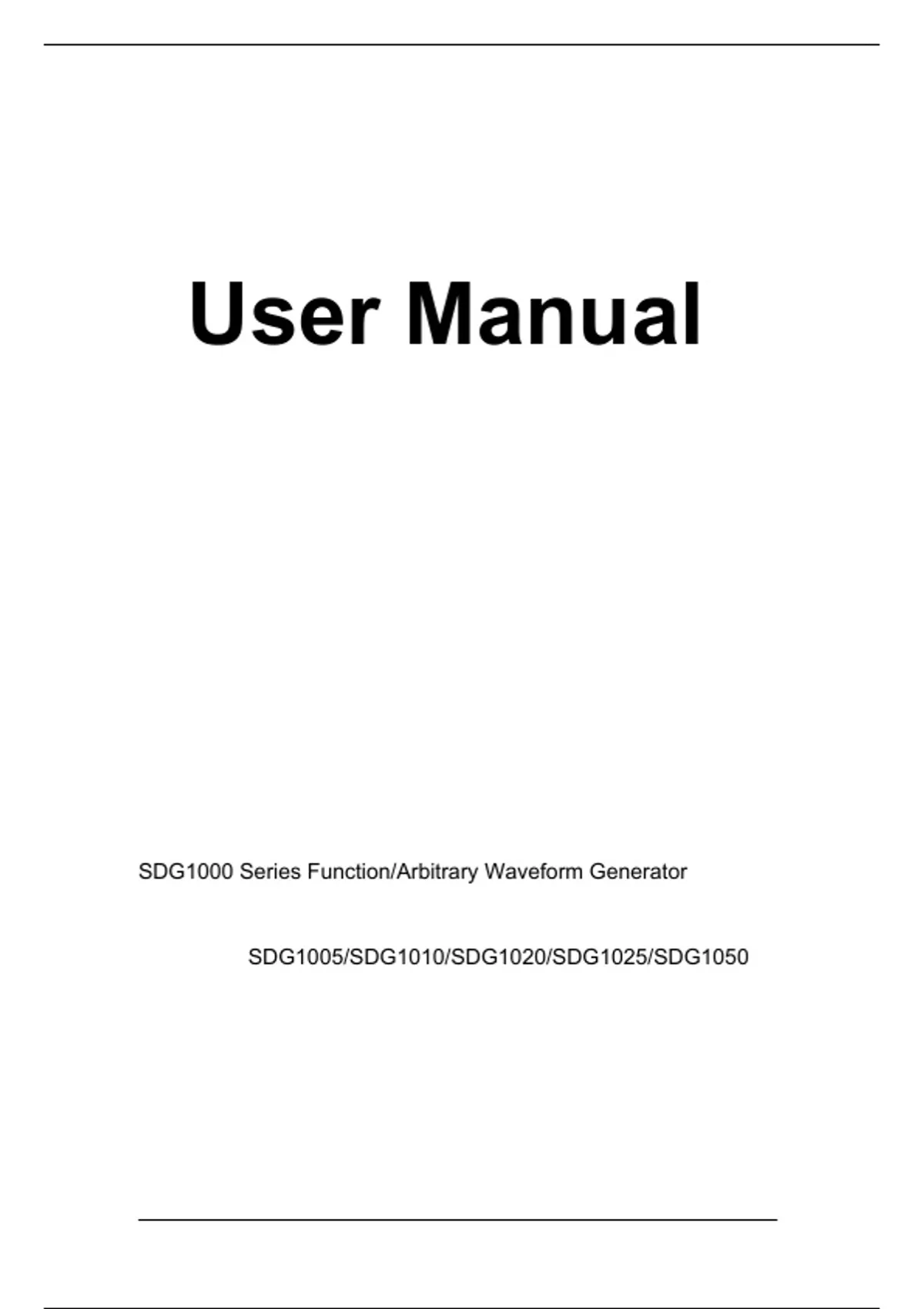

User Manual
SDG1000 Series Function/Arbitrary Waveform Generator
SDG1005/SDG1010/SDG1020/SDG1025/SDG1050
,General Safety Summary
Review the following safety precautions to avoid injury and prevent damage
to this product or any products connected to it. To avoid potential hazards, use
this product only as specified.
Only qualified personnel should perform service procedures.
To Avoid Fire or Personal Injury
Use proper power line. Only the special power line of the products
approved by the state should be used.
Ground the instrument. This generator is grounded through the
protective terra conductor of the power cord. To avoid electric shock, the
grounding conductor must be connected to the earth ground. Make sure
that the instrument is properly grounded before connecting the input or
output terminals.
Observe all the ratings of the terminal. To avoid fire or shock, observe
all the ratings and symbols that marked on the instrument. Read the user
guide carefully before making connections to the instrument.
Do not operate without Covers. Do not operate the product with
covers or panels removed.
Avoid circuit or wire exposed. Do not touch the exposed connections
or components when the power is on.
Do not operate with suspected failures. If you suspect there is
damage with this product, you should have it inspected by qualified
service personnel authorized by SIGLENT before further operations.
Provide proper ventilation.
I
, SDG1000 User Manual
Do not operate in wet/damp conditions.
Do not operate in an explosive atmosphere.
Keep the product’s surfaces clean and dry.
Not position the equipment so that it is difficult to operate the
disconnecting device (detachable plug)
II
, If the equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
This product has been tested to the requirements of
CAN/CSA-C22.2 No. 61010-1, second edition, including Amendment 1,
or a later version of the same standard incorporating the same level of
testing requirements.
Not to use the product for measurements within other measurement
categories, such as CAT II, CAT III, CAT IV.
Not to use the equipment for measurements on mains circuits, not to
use the equipment for measurements on voltage exceed the voltage
range describe in the manual.
Only probe assemblies which meet the manufacturer’s specifications
shall be used.
The Responsible body or operator should refer to the instruction
manual to preserve the protection afford by the equipment. If the
equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
Any parts of the device and its accessories are not allowed to be
changed or replaced, other than authorized by the manufacturer of his
agent.
Safety Terms and Symbols
Terms in this guide, these terms may appear in this manual:
SDG1000 User Manual IV
SDG1000 Series Function/Arbitrary Waveform Generator
SDG1005/SDG1010/SDG1020/SDG1025/SDG1050
