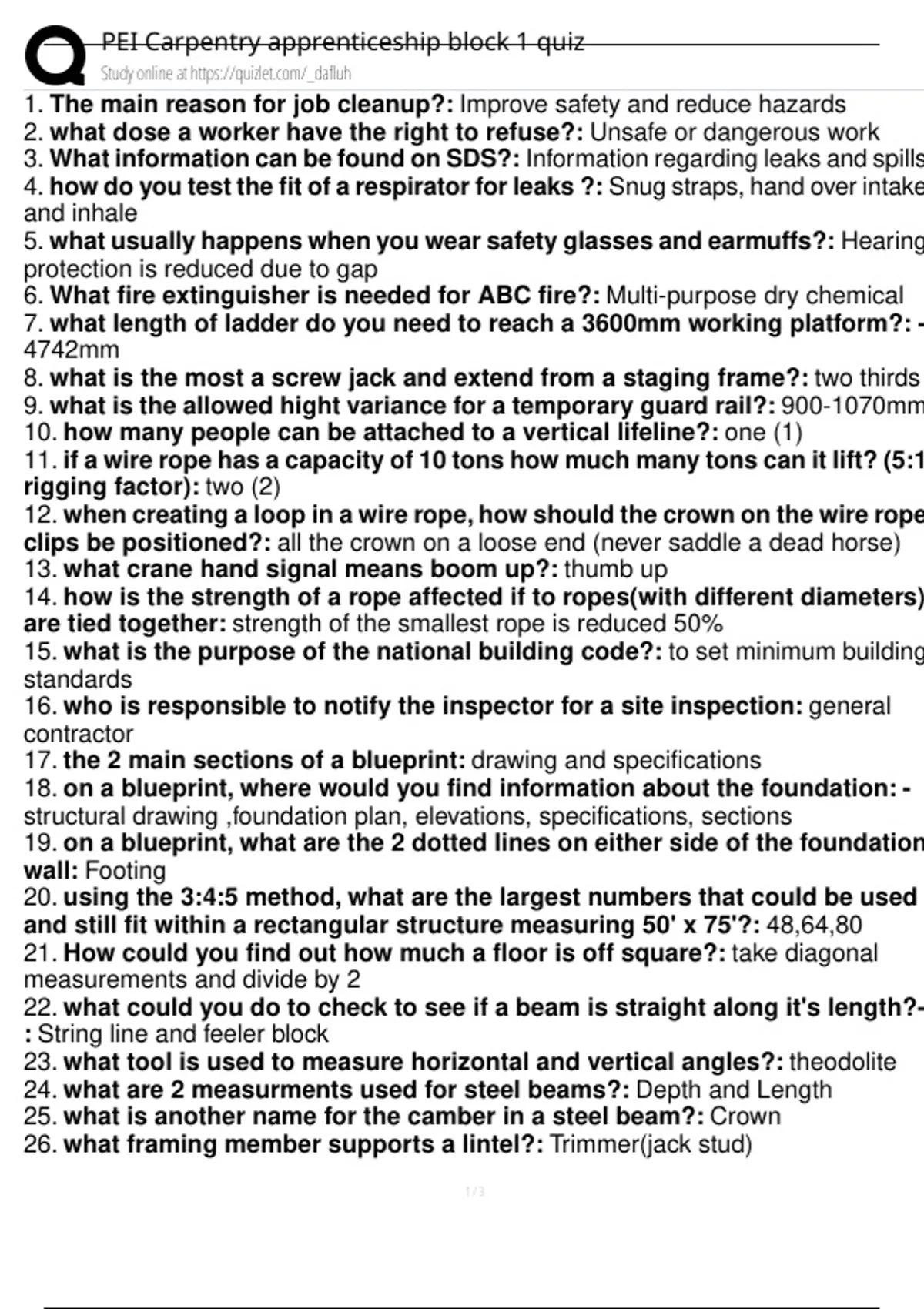

PEI Carpentry apprenticeship block 1 quiz
Study online at https://quizlet.com/_dafluh
1. The main reason for job cleanup?: Improve safety and reduce hazards
2. what dose a worker have the right to refuse?: Unsafe or dangerous work
3. What information can be found on SDS?: Information regarding leaks and spills
4. how do you test the fit of a respirator for leaks ?: Snug straps, hand over intake
and inhale
5. what usually happens when you wear safety glasses and earmuffs?: Hearing
protection is reduced due to gap
6. What fire extinguisher is needed for ABC fire?: Multi-purpose dry chemical
7. what length of ladder do you need to reach a 3600mm working platform?: -
4742mm
8. what is the most a screw jack and extend from a staging frame?: two thirds
9. what is the allowed hight variance for a temporary guard rail?: 900-1070mm
10. how many people can be attached to a vertical lifeline?: one (1)
11. if a wire rope has a capacity of 10 tons how much many tons can it lift? (5:1
rigging factor): two (2)
12. when creating a loop in a wire rope, how should the crown on the wire rope
clips be positioned?: all the crown on a loose end (never saddle a dead horse)
13. what crane hand signal means boom up?: thumb up
14. how is the strength of a rope affected if to ropes(with different diameters)
are tied together: strength of the smallest rope is reduced 50%
15. what is the purpose of the national building code?: to set minimum building
standards
16. who is responsible to notify the inspector for a site inspection: general
contractor
17. the 2 main sections of a blueprint: drawing and specifications
18. on a blueprint, where would you find information about the foundation: -
structural drawing ,foundation plan, elevations, specifications, sections
19. on a blueprint, what are the 2 dotted lines on either side of the foundation
wall: Footing
20. using the 3:4:5 method, what are the largest numbers that could be used
and still fit within a rectangular structure measuring 50' x 75'?: 48,64,80
21. How could you find out how much a floor is off square?: take diagonal
measurements and divide by 2
22. what could you do to check to see if a beam is straight along it's length?-
: String line and feeler block
23. what tool is used to measure horizontal and vertical angles?: theodolite
24. what are 2 measurments used for steel beams?: Depth and Length
25. what is another name for the camber in a steel beam?: Crown
26. what framing member supports a lintel?: Trimmer(jack stud)
1/3
