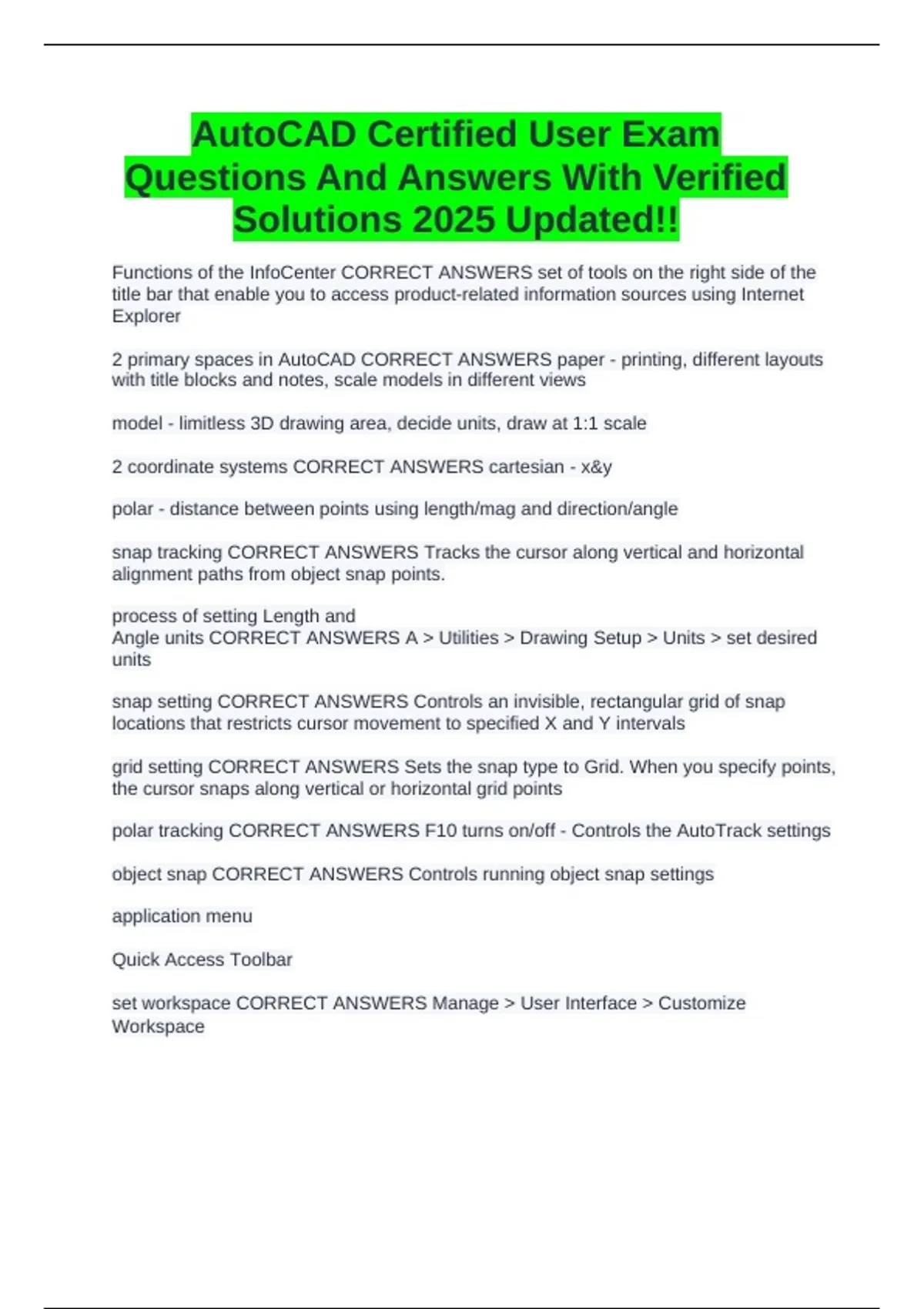

AutoCAD Certified User Exam
Questions And Answers With Verified
Solutions 2025 Updated!!
Functions of the InfoCenter CORRECT ANSWERS set of tools on the right side of the
title bar that enable you to access product-related information sources using Internet
Explorer
2 primary spaces in AutoCAD CORRECT ANSWERS paper - printing, different layouts
with title blocks and notes, scale models in different views
model - limitless 3D drawing area, decide units, draw at 1:1 scale
2 coordinate systems CORRECT ANSWERS cartesian - x&y
polar - distance between points using length/mag and direction/angle
snap tracking CORRECT ANSWERS Tracks the cursor along vertical and horizontal
alignment paths from object snap points.
process of setting Length and
Angle units CORRECT ANSWERS A > Utilities > Drawing Setup > Units > set desired
units
snap setting CORRECT ANSWERS Controls an invisible, rectangular grid of snap
locations that restricts cursor movement to specified X and Y intervals
grid setting CORRECT ANSWERS Sets the snap type to Grid. When you specify points,
the cursor snaps along vertical or horizontal grid points
polar tracking CORRECT ANSWERS F10 turns on/off - Controls the AutoTrack settings
object snap CORRECT ANSWERS Controls running object snap settings
application menu
Quick Access Toolbar
set workspace CORRECT ANSWERS Manage > User Interface > Customize
Workspace
