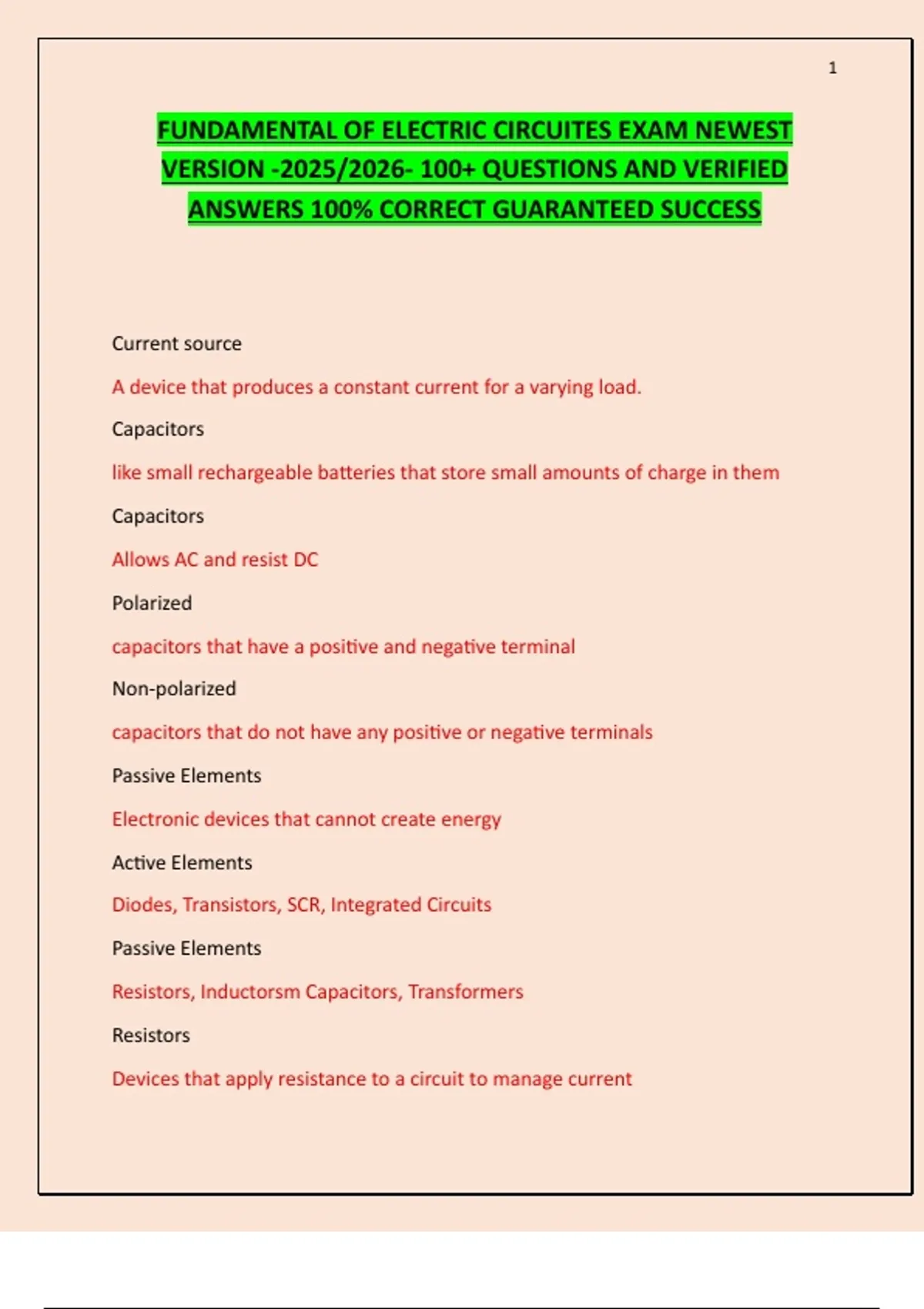

FUNDAMENTAL OF ELECTRIC CIRCUITES EXAM NEWEST
VERSION -2025/2026- 100+ QUESTIONS AND VERIFIED
ANSWERS 100% CORRECT GUARANTEED SUCCESS
Current source
A device that produces a constant current for a varying load.
Capacitors
like small rechargeable batteries that store small amounts of charge in them
Capacitors
Allows AC and resist DC
Polarized
capacitors that have a positive and negative terminal
Non-polarized
capacitors that do not have any positive or negative terminals
Passive Elements
Electronic devices that cannot create energy
Active Elements
Diodes, Transistors, SCR, Integrated Circuits
Passive Elements
Resistors, Inductorsm Capacitors, Transformers
Resistors
Devices that apply resistance to a circuit to manage current
, 2
Resistors
objects that allow charge to flow at a reduced rate
Resistors
control the amount of electricity that needs to flow
Capacitors
have the ability to store and discharge electrical potential energy
Inductors
materials that do not allow electric charges to flow through them easily; contain
5-8 valence electrons; ex. mica, glass, quartz
Light Emitting Diode
LED
LED
used to indicate the state of current at any point in a circuit
LED
checking the output voltage or current on a circuit becomes simpler with these
light-based indicators
Transistors
a tiny circuit board with millions of switches; located inside the CPU chip
Transistors
used to build complex electrical systems, such as amplifiers for instance
Inductors
used to build complicated electrical systems
Inductors
essentially coils of wire that are wound around other components
