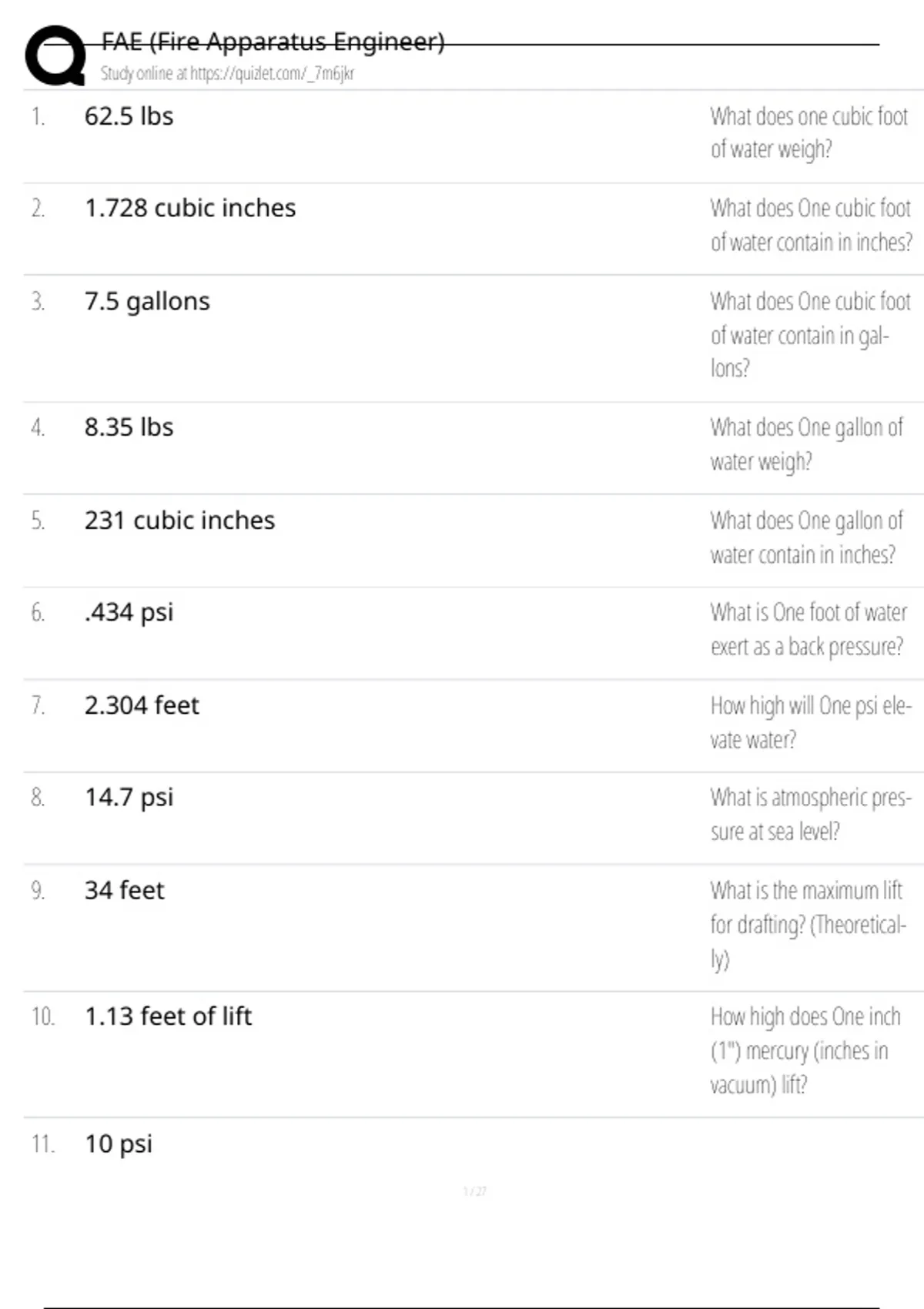

FAE (Fire Apparatus Engineer)
Study online at https://quizlet.com/_7m6jkr
1. 62.5 lbs What does one cubic foot
of water weigh?
2. 1.728 cubic inches What does One cubic foot
of water contain in inches?
3. 7.5 gallons What does One cubic foot
of water contain in gal-
lons?
4. 8.35 lbs What does One gallon of
water weigh?
5. 231 cubic inches What does One gallon of
water contain in inches?
6. .434 psi What is One foot of water
exert as a back pressure?
7. 2.304 feet How high will One psi ele-
vate water?
8. 14.7 psi What is atmospheric pres-
sure at sea level?
9. 34 feet What is the maximum lift
for drafting? (Theoretical-
ly)
10. 1.13 feet of lift How high does One inch
(1") mercury (inches in
vacuum) lift?
11. 10 psi
, FAE (Fire Apparatus Engineer)
Study online at https://quizlet.com/_7m6jkr
What is the recommended
minimum psi that should
be maintained on the
compound gauge when
taking water from a hy-
drant?
12. Stored or potential energy that is available to force wa- What is Static pressure?
ter through pipes and fittings, fire hose, and adapters.
13. That part of the total pressure that is not used to over- Residual Pressure
come friction or gravity while forcing water through
fire hose, pipe, fittings, and adapters.
14. Take Static pressure and subtracting residual pressure How to calculate psi loss
which gets you your drop. Take your drop and multiply for each additional line
it by (2)² for second line, (3)² for third line, (4)² for forth off hydrant and know how
line, (5)² for fifth line. so long as after you multiply drop many lines can be taken
and the multiplayer for the number line and still have off hydrant?
10 psi left based off static pressure you can have that
many lines if you have less than 10 psi you can not
operate that number of lines.
15. Example: Static pressure: 65 psi Residual pressure : 60 Examples of how to calcu-
psi late psi loss for each addi-
Drop: 5 psi tional line off hydrant
2nd line: 2²=4: 4x5= 20
3rd line: 3²=9: 9x5= 45
4th line: 4²=16: 16x5= 80 This line can't be done be-
cause it is over 65 psi
16. 1. 2 Hour: 100% @ 150 psi
2. 1/2 hour: 70% @ 200 psi
, FAE (Fire Apparatus Engineer)
Study online at https://quizlet.com/_7m6jkr
3. 1/2 hour: 50% @ 250 psi What are all the steps in
4. 10 minutes: 100% @ 165 psi (overload or spurt test) Certification Test (pre-ser-
vice tests)?
17. 100% @ 165 psi (done in certification test for 10 min- What is a Spurt or Over-
utes) load test?
18. 1. 20 minutes: 100% @ 150 psi What are all the steps in a
2. 10 minutes: 70 % @ 200 psi Service Test?
3. 10 minutes: 50% @ 250 psi
Optional: 100% @ 165 psi (overload or spurt test)
19. 100% capacity @ 150 psi net pump pressure What are Pump Tests?
70% capacity @ 200 psi net pump pressure
50% capacity @ 250 psi net pump pressure
20. Net Pump Pressure (NEP) is the measurement of the What is Net Engine/Pump
total work performed by the pump: Pressure (NEP)?
a. To lift water into the pump (drafting)
b. To discharge water from the pump
NEP= Suction Side Work(drafting) + Discharge Side
Work
21. Examples: Examples of figuring out
Discharge gauge reads 165 psi but you are getting Net Engine/Pump Pres-
supplied by hydrant @ 65 psi on your intake gauge. sure (NEP)
So the net pressure would only be 100 psi.
Now your are drafting and Intake gauge reads 20"
mercury (-20) and Discharge reads 120 psi. So your net
pump pressure is 140
22. Pump Discharge Pressure (PDP) is: What is Pump Discharge
PDP= Net pump pressure(NEP) - Suction Side Work Pressure?
