Electrical Level 3 — Module 1 NEC® Branch Circuit and Load Calculations (Practice Questions with Answers 2025/2026)

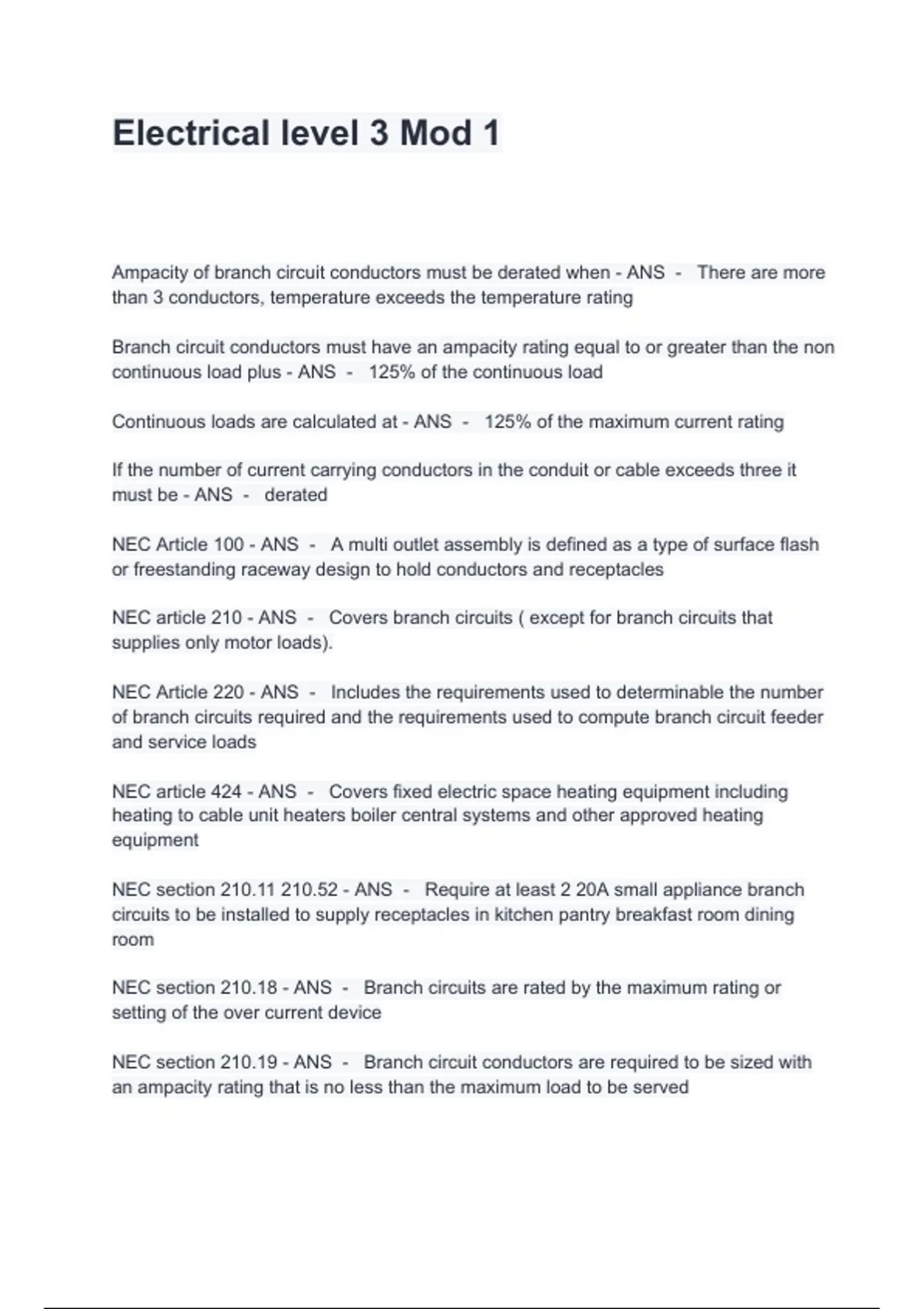

Electrical level 3 Mod 1


Ampacity of branch circuit conductors must be derated when - ANS - There are more
than 3 conductors, temperature exceeds the temperature rating

Branch circuit conductors must have an ampacity rating equal to or greater than the non
continuous load plus - ANS - 125% of the continuous load

Continuous loads are calculated at - ANS - 125% of the maximum current rating

If the number of current carrying conductors in the conduit or cable exceeds three it
must be - ANS - derated

NEC Article 100 - ANS - A multi outlet assembly is defined as a type of surface flash
or freestanding raceway design to hold conductors and receptacles

NEC article 210 - ANS - Covers branch circuits ( except for branch circuits that
supplies only motor loads).

NEC Article 220 - ANS - Includes the requirements used to determinable the number
of branch circuits required and the requirements used to compute branch circuit feeder
and service loads

NEC article 424 - ANS - Covers fixed electric space heating equipment including
heating to cable unit heaters boiler central systems and other approved heating
equipment

NEC section 210.11 210.52 - ANS - Require at least 2 20A small appliance branch
circuits to be installed to supply receptacles in kitchen pantry breakfast room dining
room

NEC section 210.18 - ANS - Branch circuits are rated by the maximum rating or
setting of the over current device

NEC section 210.19 - ANS - Branch circuit conductors are required to be sized with
an ampacity rating that is no less than the maximum load to be served
