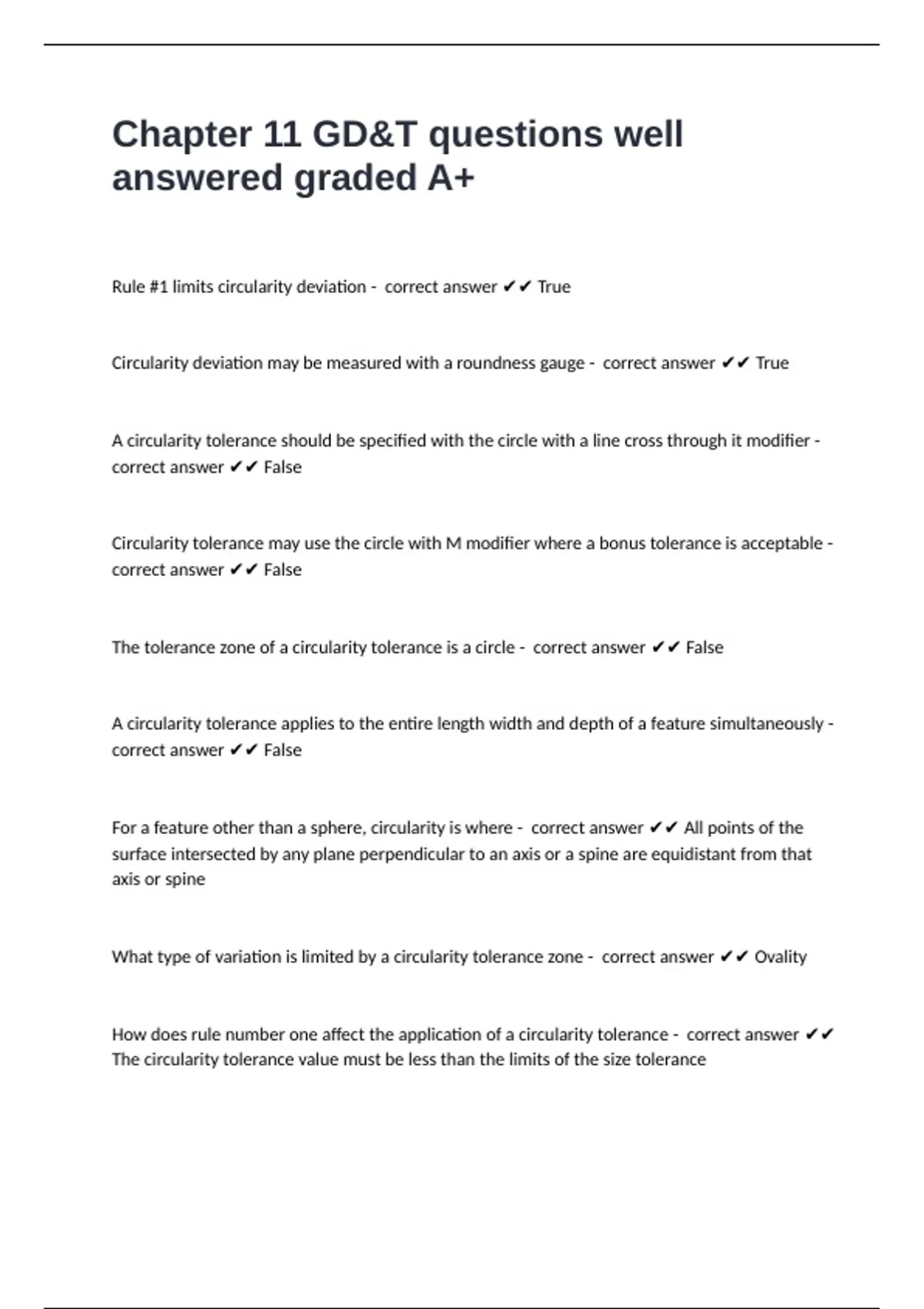

Chapter 11 GD&T questions well
answered graded A+
Rule #1 limits circularity deviation - correct answer ✔✔ True
Circularity deviation may be measured with a roundness gauge - correct answer ✔✔ True
A circularity tolerance should be specified with the circle with a line cross through it modifier -
correct answer ✔✔ False
Circularity tolerance may use the circle with M modifier where a bonus tolerance is acceptable -
correct answer ✔✔ False
The tolerance zone of a circularity tolerance is a circle - correct answer ✔✔ False
A circularity tolerance applies to the entire length width and depth of a feature simultaneously -
correct answer ✔✔ False
For a feature other than a sphere, circularity is where - correct answer ✔✔ All points of the
surface intersected by any plane perpendicular to an axis or a spine are equidistant from that
axis or spine
What type of variation is limited by a circularity tolerance zone - correct answer ✔✔ Ovality
How does rule number one affect the application of a circularity tolerance - correct answer ✔✔
The circularity tolerance value must be less than the limits of the size tolerance
