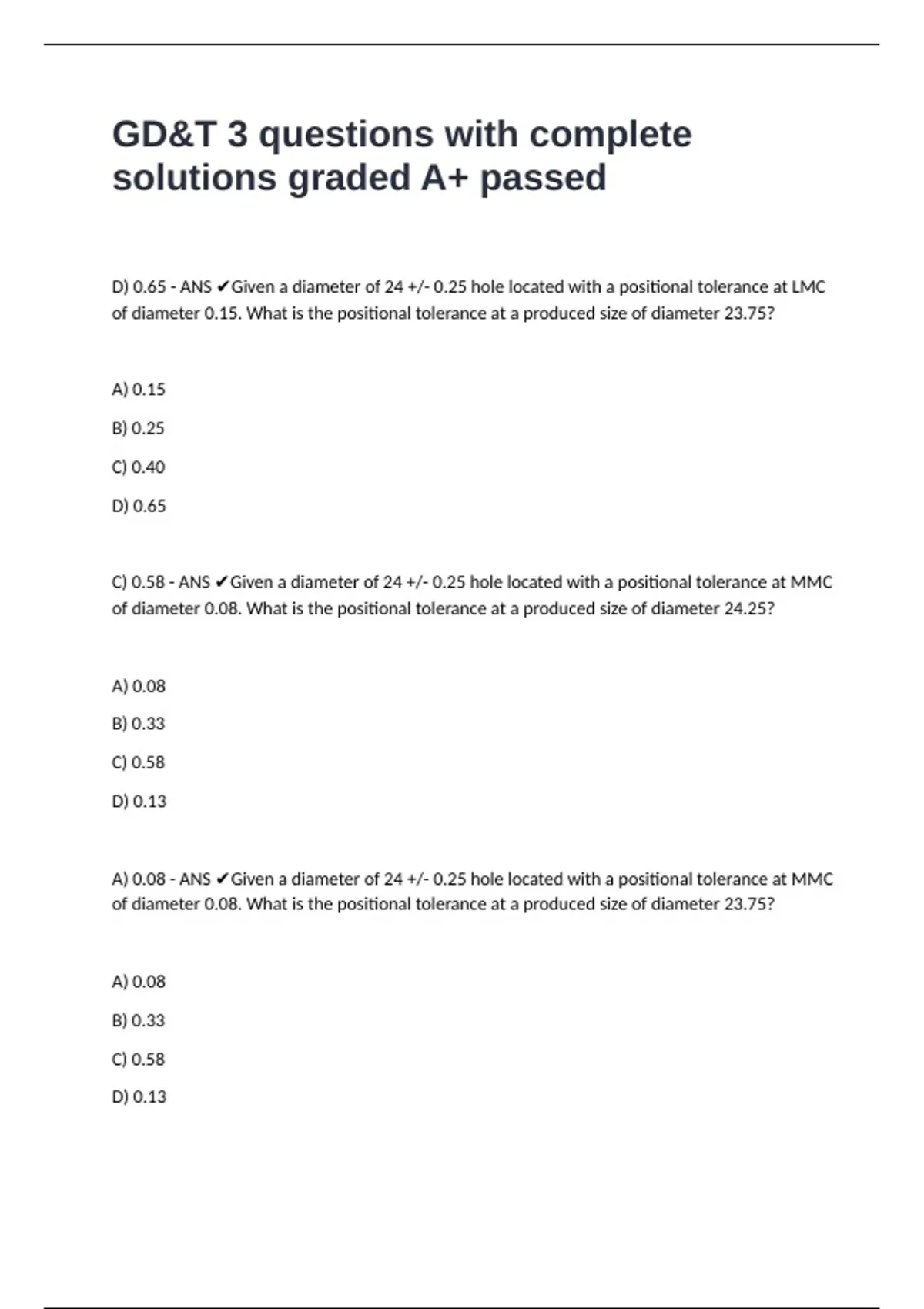

GD&T 3 questions with complete
solutions graded A+ passed
D) 0.65 - ANS ✔Given a diameter of 24 +/- 0.25 hole located with a positional tolerance at LMC
of diameter 0.15. What is the positional tolerance at a produced size of diameter 23.75?
A) 0.15
B) 0.25
C) 0.40
D) 0.65
C) 0.58 - ANS ✔Given a diameter of 24 +/- 0.25 hole located with a positional tolerance at MMC
of diameter 0.08. What is the positional tolerance at a produced size of diameter 24.25?
A) 0.08
B) 0.33
C) 0.58
D) 0.13
A) 0.08 - ANS ✔Given a diameter of 24 +/- 0.25 hole located with a positional tolerance at MMC
of diameter 0.08. What is the positional tolerance at a produced size of diameter 23.75?
A) 0.08
B) 0.33
C) 0.58
D) 0.13
solutions graded A+ passed
D) 0.65 - ANS ✔Given a diameter of 24 +/- 0.25 hole located with a positional tolerance at LMC
of diameter 0.15. What is the positional tolerance at a produced size of diameter 23.75?
A) 0.15
B) 0.25
C) 0.40
D) 0.65
C) 0.58 - ANS ✔Given a diameter of 24 +/- 0.25 hole located with a positional tolerance at MMC
of diameter 0.08. What is the positional tolerance at a produced size of diameter 24.25?
A) 0.08
B) 0.33
C) 0.58
D) 0.13
A) 0.08 - ANS ✔Given a diameter of 24 +/- 0.25 hole located with a positional tolerance at MMC
of diameter 0.08. What is the positional tolerance at a produced size of diameter 23.75?
A) 0.08
B) 0.33
C) 0.58
D) 0.13
