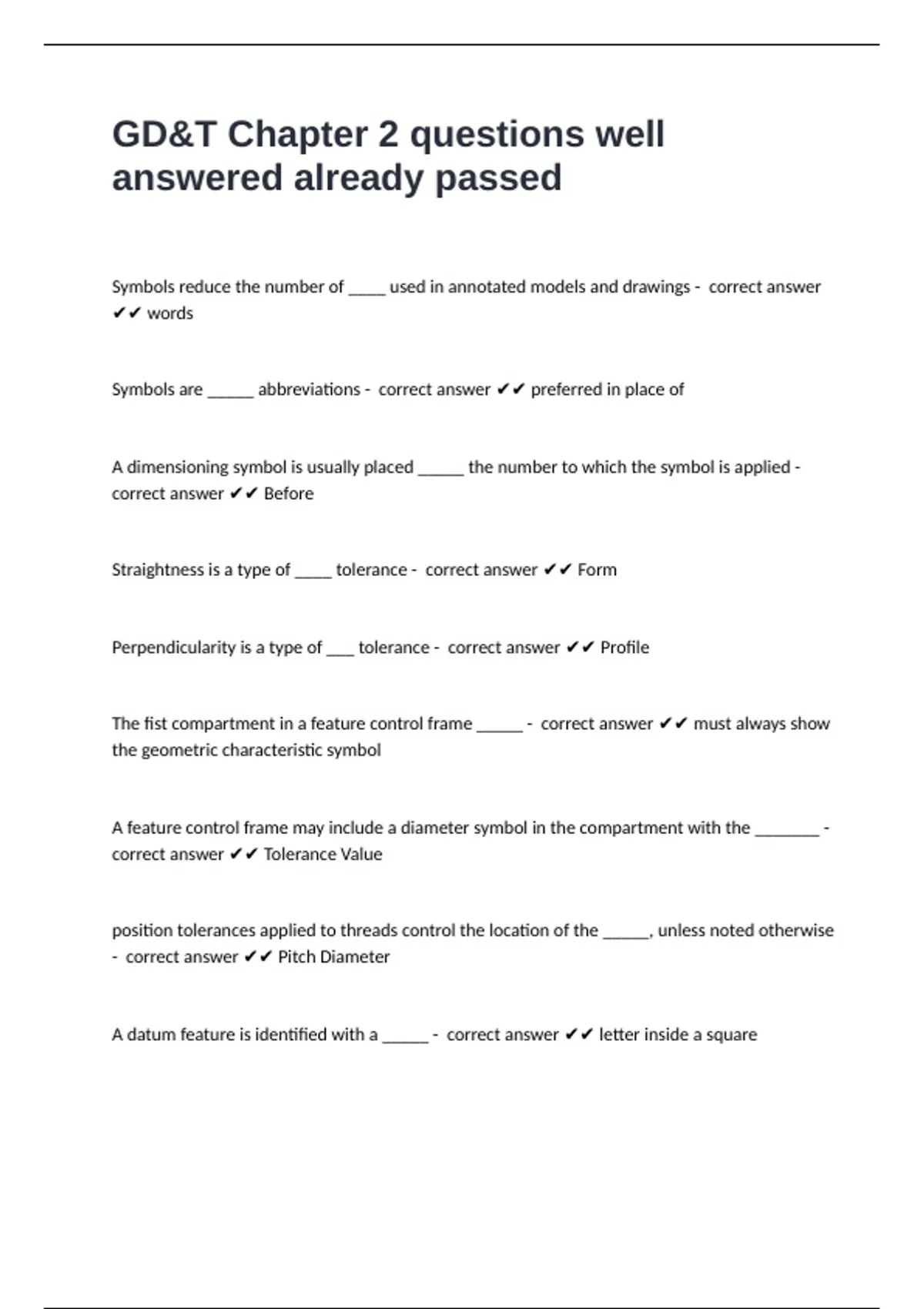

GD&T Chapter 2 questions well
answered already passed
Symbols reduce the number of ____ used in annotated models and drawings - correct answer
✔✔ words
Symbols are _____ abbreviations - correct answer ✔✔ preferred in place of
A dimensioning symbol is usually placed _____ the number to which the symbol is applied -
correct answer ✔✔ Before
Straightness is a type of ____ tolerance - correct answer ✔✔ Form
Perpendicularity is a type of ___ tolerance - correct answer ✔✔ Profile
The fist compartment in a feature control frame _____ - correct answer ✔✔ must always show
the geometric characteristic symbol
A feature control frame may include a diameter symbol in the compartment with the _______ -
correct answer ✔✔ Tolerance Value
position tolerances applied to threads control the location of the _____, unless noted otherwise
- correct answer ✔✔ Pitch Diameter
A datum feature is identified with a _____ - correct answer ✔✔ letter inside a square
answered already passed
Symbols reduce the number of ____ used in annotated models and drawings - correct answer
✔✔ words
Symbols are _____ abbreviations - correct answer ✔✔ preferred in place of
A dimensioning symbol is usually placed _____ the number to which the symbol is applied -
correct answer ✔✔ Before
Straightness is a type of ____ tolerance - correct answer ✔✔ Form
Perpendicularity is a type of ___ tolerance - correct answer ✔✔ Profile
The fist compartment in a feature control frame _____ - correct answer ✔✔ must always show
the geometric characteristic symbol
A feature control frame may include a diameter symbol in the compartment with the _______ -
correct answer ✔✔ Tolerance Value
position tolerances applied to threads control the location of the _____, unless noted otherwise
- correct answer ✔✔ Pitch Diameter
A datum feature is identified with a _____ - correct answer ✔✔ letter inside a square
