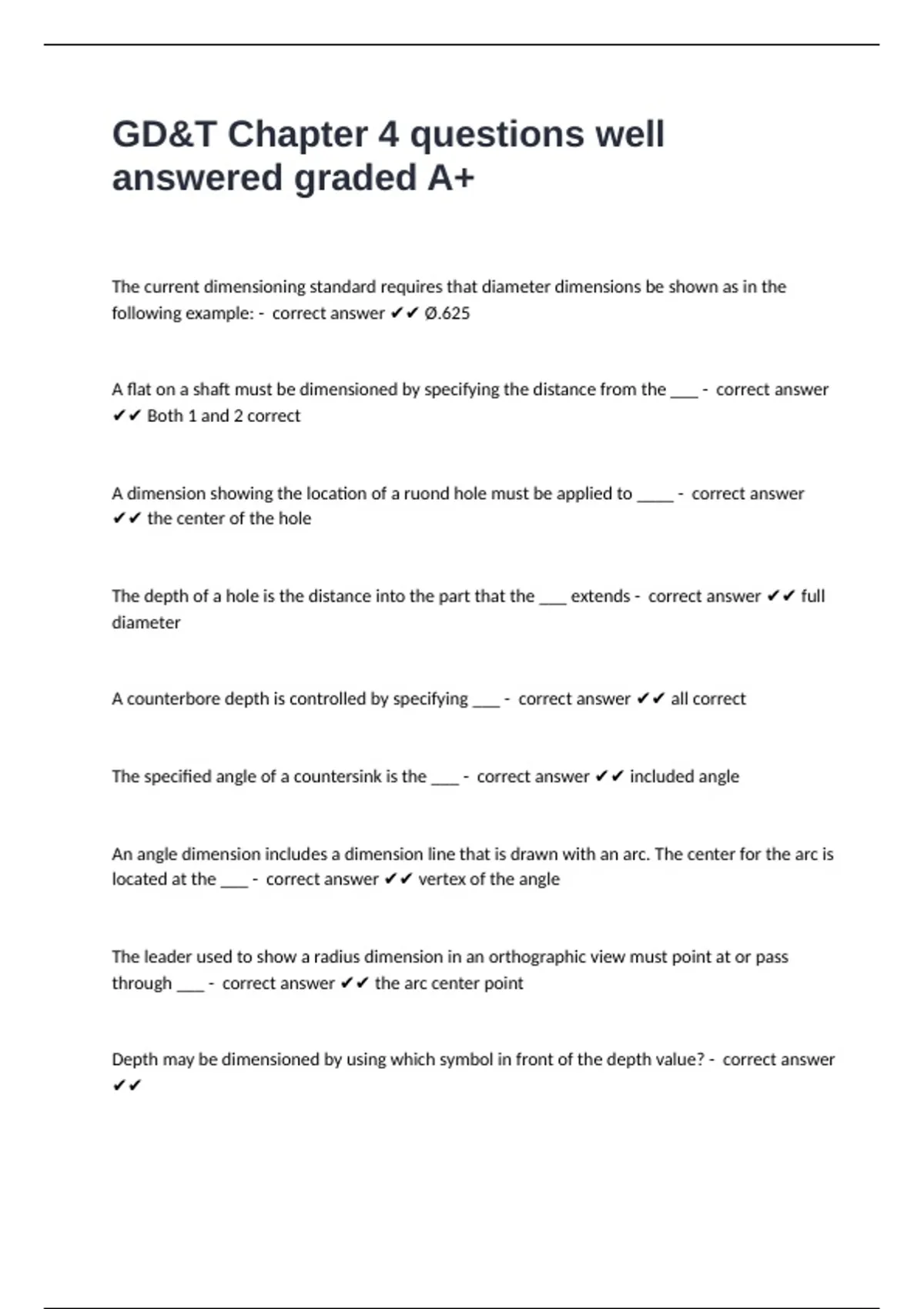

GD&T Chapter 4 questions well
answered graded A+
The current dimensioning standard requires that diameter dimensions be shown as in the
following example: - correct answer ✔✔ Ø.625
A flat on a shaft must be dimensioned by specifying the distance from the ___ - correct answer
✔✔ Both 1 and 2 correct
A dimension showing the location of a ruond hole must be applied to ____ - correct answer
✔✔ the center of the hole
The depth of a hole is the distance into the part that the ___ extends - correct answer ✔✔ full
diameter
A counterbore depth is controlled by specifying ___ - correct answer ✔✔ all correct
The specified angle of a countersink is the ___ - correct answer ✔✔ included angle
An angle dimension includes a dimension line that is drawn with an arc. The center for the arc is
located at the ___ - correct answer ✔✔ vertex of the angle
The leader used to show a radius dimension in an orthographic view must point at or pass
through ___ - correct answer ✔✔ the arc center point
Depth may be dimensioned by using which symbol in front of the depth value? - correct answer
✔✔
answered graded A+
The current dimensioning standard requires that diameter dimensions be shown as in the
following example: - correct answer ✔✔ Ø.625
A flat on a shaft must be dimensioned by specifying the distance from the ___ - correct answer
✔✔ Both 1 and 2 correct
A dimension showing the location of a ruond hole must be applied to ____ - correct answer
✔✔ the center of the hole
The depth of a hole is the distance into the part that the ___ extends - correct answer ✔✔ full
diameter
A counterbore depth is controlled by specifying ___ - correct answer ✔✔ all correct
The specified angle of a countersink is the ___ - correct answer ✔✔ included angle
An angle dimension includes a dimension line that is drawn with an arc. The center for the arc is
located at the ___ - correct answer ✔✔ vertex of the angle
The leader used to show a radius dimension in an orthographic view must point at or pass
through ___ - correct answer ✔✔ the arc center point
Depth may be dimensioned by using which symbol in front of the depth value? - correct answer
✔✔
