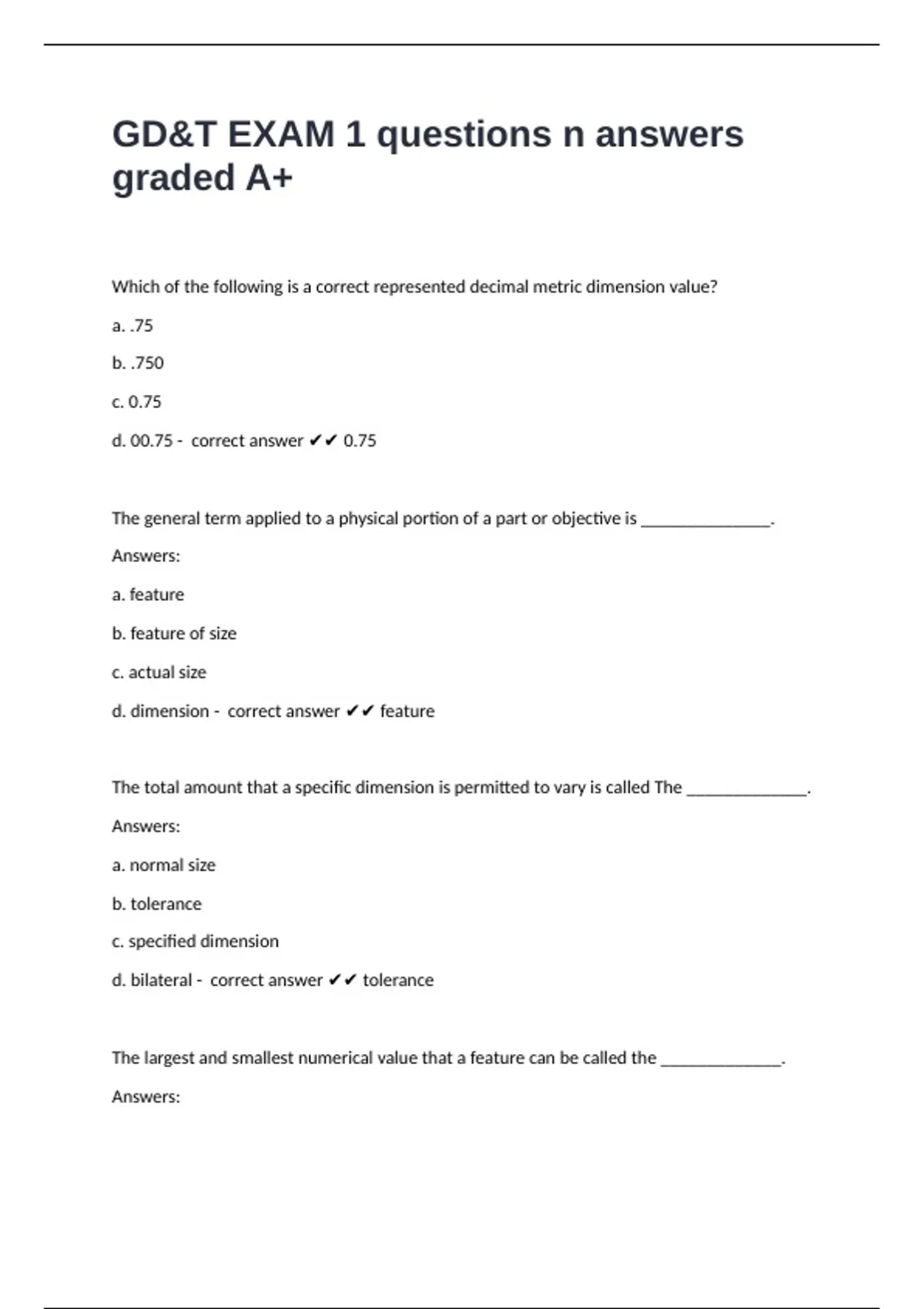

GD&T EXAM 1 questions n answers graded A+

GD&T EXAM 1 questions n answers
graded A+

Which of the following is a correct represented decimal metric dimension value?

a. .75

b. .750

c. 0.75

d. 00.75 - correct answer ✔✔ 0.75



The general term applied to a physical portion of a part or objective is ______________.

Answers:

a. feature

b. feature of size

c. actual size

d. dimension - correct answer ✔✔ feature



The total amount that a specific dimension is permitted to vary is called The _____________.

Answers:

a. normal size

b. tolerance

c. specified dimension

d. bilateral - correct answer ✔✔ tolerance



The largest and smallest numerical value that a feature can be called the _____________.

Answers:

, a. limits

b. normal size

c. specified dimension

d. tolerance - correct answer ✔✔ limits



A(n) ______________ is considered theoretically prefect in size, profile, orientation, or location
and is the basic from which variations are established.

Answers:

a. feature of size

b. actual size

c. normal size

d. basic dimension - correct answer ✔✔ basic dimension



The distance across a circle passing through the center is the _______________.

Answers:

a. radius

b. controlled radius

c. diameter

d. circumference - correct answer ✔✔ diameter



A tolerance that is permitted to increase or decrease in one direction is called
_______________.

Answers:

a. unilateral

b. bilateral

c. tolerance limits

d. specified dimension - correct answer ✔✔ unilateral
