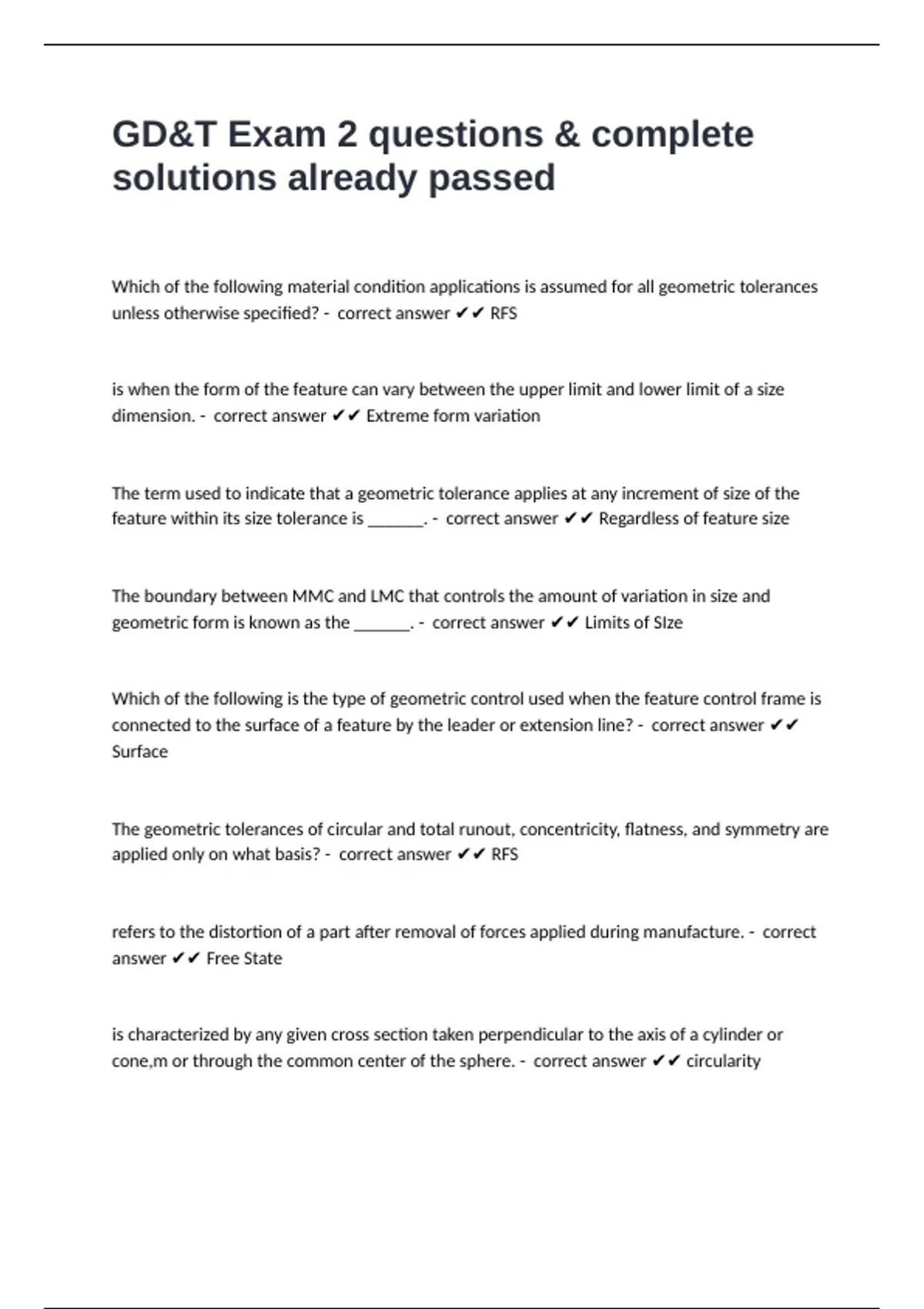

GD&T Exam 2 questions & complete
solutions already passed
Which of the following material condition applications is assumed for all geometric tolerances
unless otherwise specified? - correct answer ✔✔ RFS
is when the form of the feature can vary between the upper limit and lower limit of a size
dimension. - correct answer ✔✔ Extreme form variation
The term used to indicate that a geometric tolerance applies at any increment of size of the
feature within its size tolerance is ______. - correct answer ✔✔ Regardless of feature size
The boundary between MMC and LMC that controls the amount of variation in size and
geometric form is known as the ______. - correct answer ✔✔ Limits of SIze
Which of the following is the type of geometric control used when the feature control frame is
connected to the surface of a feature by the leader or extension line? - correct answer ✔✔
Surface
The geometric tolerances of circular and total runout, concentricity, flatness, and symmetry are
applied only on what basis? - correct answer ✔✔ RFS
refers to the distortion of a part after removal of forces applied during manufacture. - correct
answer ✔✔ Free State
is characterized by any given cross section taken perpendicular to the axis of a cylinder or
cone,m or through the common center of the sphere. - correct answer ✔✔ circularity
