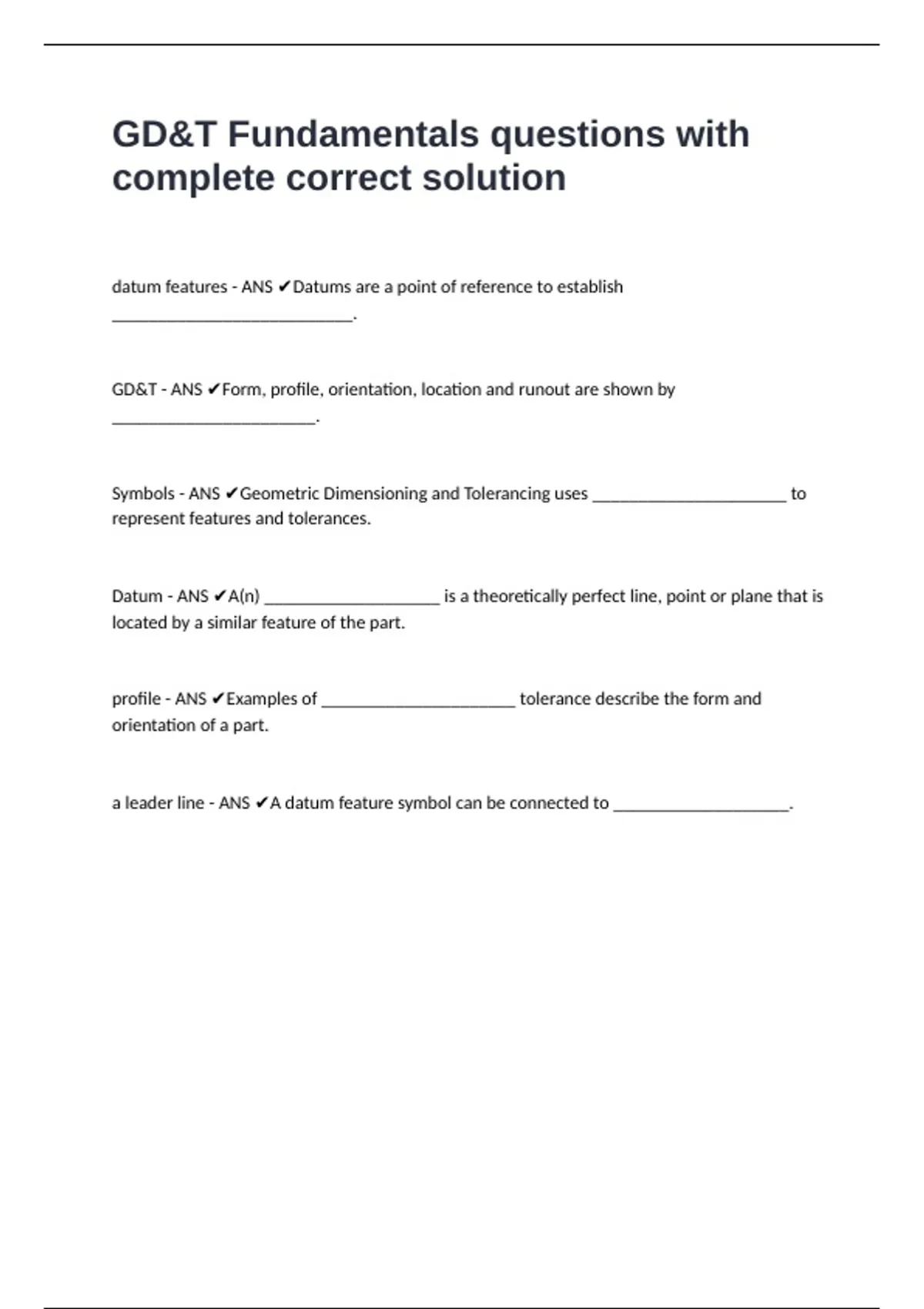

GD&T Fundamentals questions with
complete correct solution
datum features - ANS ✔Datums are a point of reference to establish
__________________________.
GD&T - ANS ✔Form, profile, orientation, location and runout are shown by
______________________.
Symbols - ANS ✔Geometric Dimensioning and Tolerancing uses _____________________ to
represent features and tolerances.
Datum - ANS ✔A(n) ___________________ is a theoretically perfect line, point or plane that is
located by a similar feature of the part.
profile - ANS ✔Examples of _____________________ tolerance describe the form and
orientation of a part.
a leader line - ANS ✔A datum feature symbol can be connected to ___________________.
