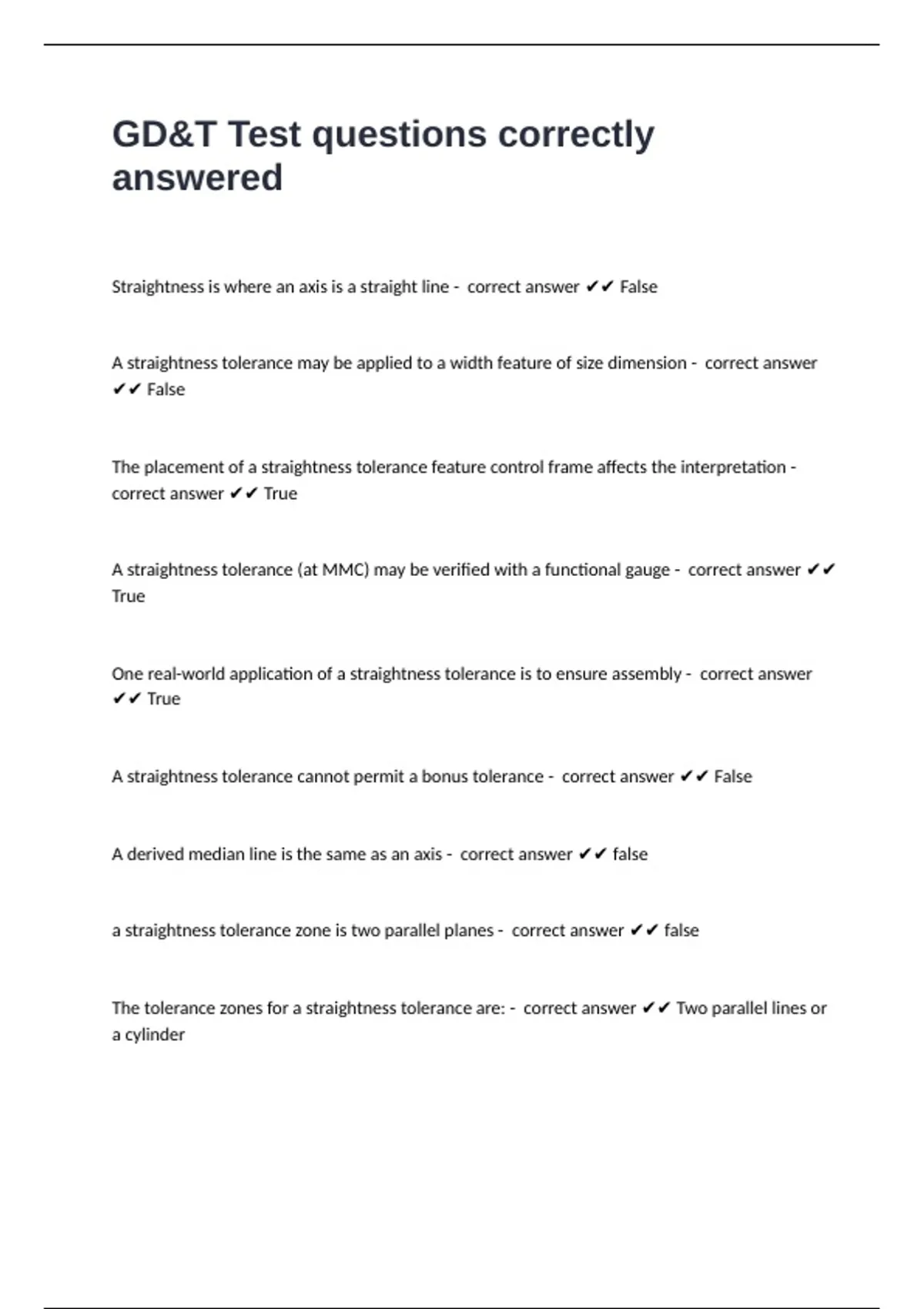

GD&T Test questions correctly
answered
Straightness is where an axis is a straight line - correct answer ✔✔ False
A straightness tolerance may be applied to a width feature of size dimension - correct answer
✔✔ False
The placement of a straightness tolerance feature control frame affects the interpretation -
correct answer ✔✔ True
A straightness tolerance (at MMC) may be verified with a functional gauge - correct answer ✔✔
True
One real-world application of a straightness tolerance is to ensure assembly - correct answer
✔✔ True
A straightness tolerance cannot permit a bonus tolerance - correct answer ✔✔ False
A derived median line is the same as an axis - correct answer ✔✔ false
a straightness tolerance zone is two parallel planes - correct answer ✔✔ false
The tolerance zones for a straightness tolerance are: - correct answer ✔✔ Two parallel lines or
a cylinder
, Rule #1 affects the straightness deviation on a: - correct answer ✔✔ Planar feature of size,
cylindrical feature of size, planar surface of a feature of size, (ALL OF THE ABOVE)
What type of deviation is not limited by a straightness tolerance? - correct answer ✔✔ Taper
(RANDOM IS LIMITED)
Where a straightness tolerance at MMC is applied to a cylindrical feature of size: - correct
answer ✔✔ The function is probably assembly. a functional gage may be used to inspect the
straightness, rule #1 is overridden (All of the Above)
Where a straightness tolerance is applied to surface elements that are associated with a size
dimension, and Rule #1 applies to the size dimension, the specified tolerance value _____ the
size tolerance - correct answer ✔✔ Must be less than
A derived median line is.... - correct answer ✔✔ An imperfect line formed by the center points
of all cross sections of the feature of size
A flatness tolerance must be applied RFS - correct answer ✔✔ False
A flatness tolerance must be applied to a planar feature or width feature of size. - correct
answer ✔✔ True
Flatness is the condition of being perfectly planar. - correct answer ✔✔ True
A flatness tolerance may override Rule #1 - correct answer ✔✔ True
A flatness tolerance may have a bonus tolerance - correct answer ✔✔ True
answered
Straightness is where an axis is a straight line - correct answer ✔✔ False
A straightness tolerance may be applied to a width feature of size dimension - correct answer
✔✔ False
The placement of a straightness tolerance feature control frame affects the interpretation -
correct answer ✔✔ True
A straightness tolerance (at MMC) may be verified with a functional gauge - correct answer ✔✔
True
One real-world application of a straightness tolerance is to ensure assembly - correct answer
✔✔ True
A straightness tolerance cannot permit a bonus tolerance - correct answer ✔✔ False
A derived median line is the same as an axis - correct answer ✔✔ false
a straightness tolerance zone is two parallel planes - correct answer ✔✔ false
The tolerance zones for a straightness tolerance are: - correct answer ✔✔ Two parallel lines or
a cylinder
, Rule #1 affects the straightness deviation on a: - correct answer ✔✔ Planar feature of size,
cylindrical feature of size, planar surface of a feature of size, (ALL OF THE ABOVE)
What type of deviation is not limited by a straightness tolerance? - correct answer ✔✔ Taper
(RANDOM IS LIMITED)
Where a straightness tolerance at MMC is applied to a cylindrical feature of size: - correct
answer ✔✔ The function is probably assembly. a functional gage may be used to inspect the
straightness, rule #1 is overridden (All of the Above)
Where a straightness tolerance is applied to surface elements that are associated with a size
dimension, and Rule #1 applies to the size dimension, the specified tolerance value _____ the
size tolerance - correct answer ✔✔ Must be less than
A derived median line is.... - correct answer ✔✔ An imperfect line formed by the center points
of all cross sections of the feature of size
A flatness tolerance must be applied RFS - correct answer ✔✔ False
A flatness tolerance must be applied to a planar feature or width feature of size. - correct
answer ✔✔ True
Flatness is the condition of being perfectly planar. - correct answer ✔✔ True
A flatness tolerance may override Rule #1 - correct answer ✔✔ True
A flatness tolerance may have a bonus tolerance - correct answer ✔✔ True
