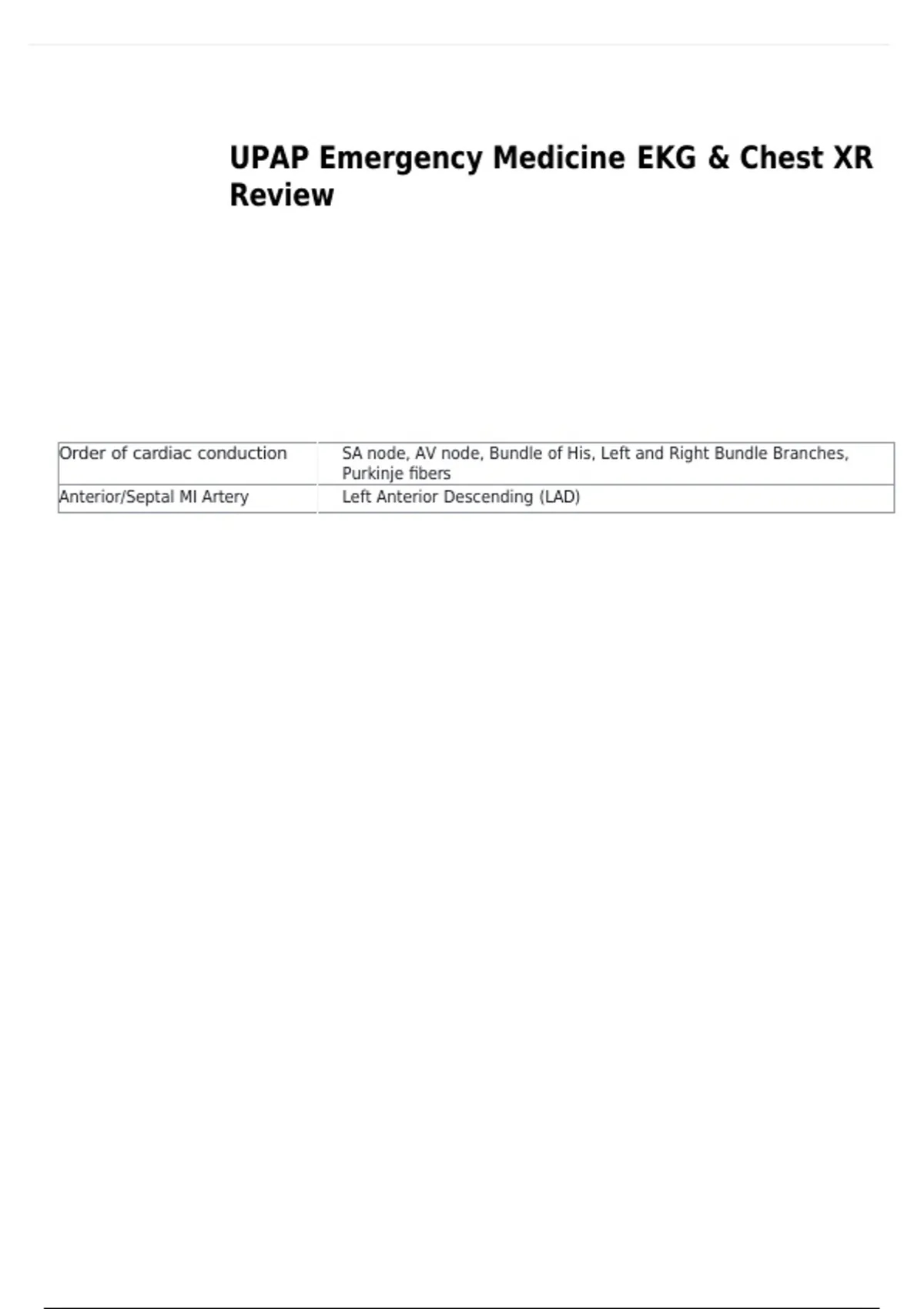

UPAP Emergency Medicine EKG & Chest XR
Review
Order of cardiac conduction SA node, AV node, Bundle of His, Left and Right Bundle Branches,
Purkinje fibers
Anterior/Septal MI Artery Left Anterior Descending (LAD)
, Right Coronary Artery (RCA) 70% (or Left Circumflex)
Inferior MI Artery
Avoid nitrates!! - dont want to decrease preload in a right ventricle
infarction
Left Circumflex
Lateral MI Artery
or LAD diagonal branch
What is a heart rhythm that Sinus
originates at the SA node
called?
What is a heart rhythm that starts Junctional Rhythm
at the AV node called?
Regular rhythm 60-100 beats per minute, every beat is equally spaced
a rhythm that is abnormal but follows a pattern
Regularly irregular rhythm
not every beat is equally spaced
Irregularly irregular rhythm no consistent pattern to heart rhythm, usually implying atrial fibrillation
Normal PR interval 0.12-0.20 seconds (3-5 tiny boxes)
0.08-0.10 seconds
Normal QRS interval time
(2-2.5 tiny boxes)
Normal QT interval 0.35-0.45 seconds (about 2 large boxes)
Long QT risk torsades de pointes
Lead 1 and aVF
Which leads are used to assess
axis?
widened QRS (>0.12s); double
peaked QRS in V1 (best to look in
Right Bundle Branch Block V1 and V2); T wave can look
abnormal - inverted (does not
indicate ischemia)
UPRIGHT QRS in V1
"LBBB" a block in the electrical
conduction through the left bundle;
Left Bundle Branch Block
evidenced by a wide QRS in lead 1
and V6 with Downward QRS
Thickening of the right
Right Ventricular Hypertrophy
ventricle muscle V1 upright
QRS
