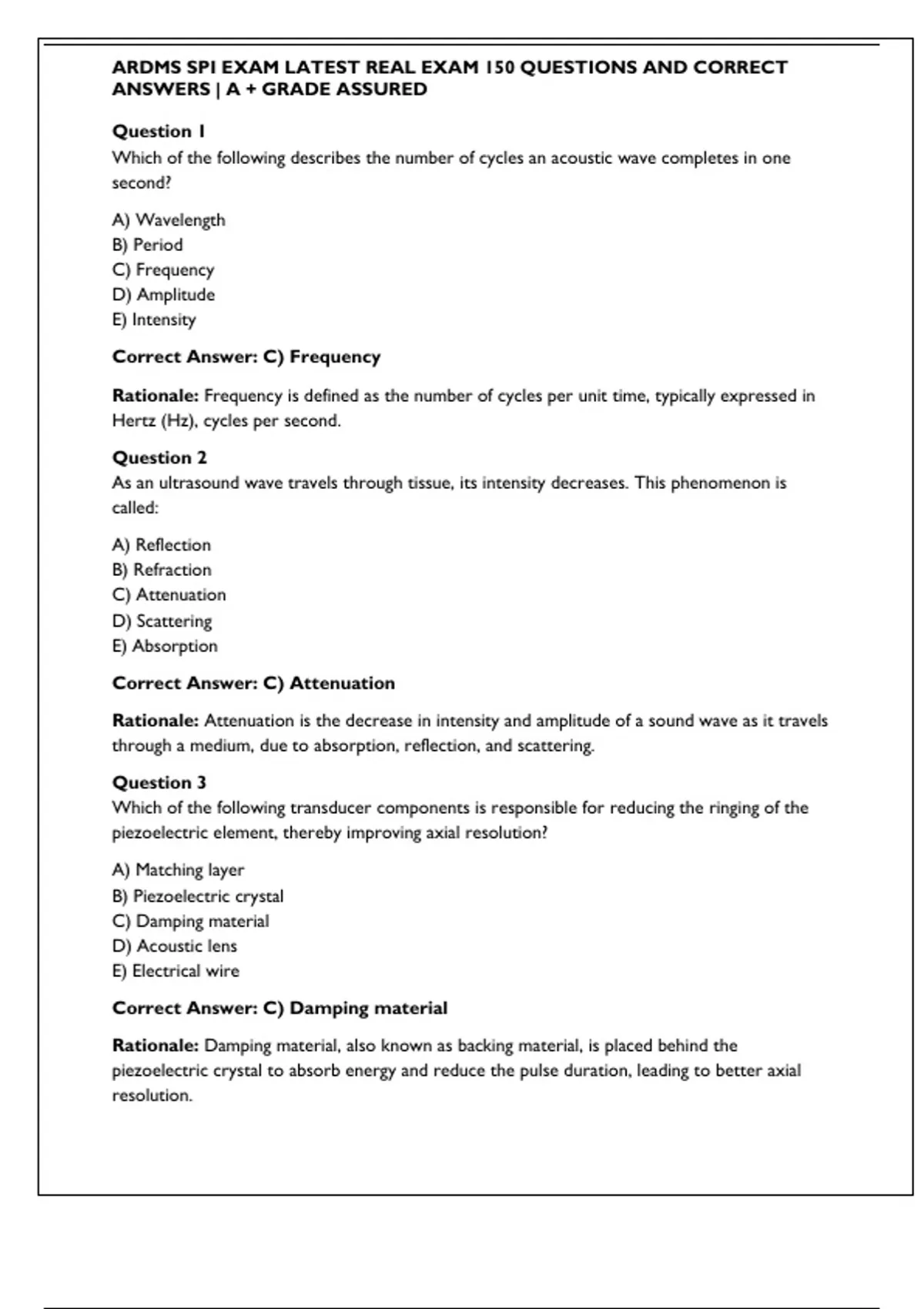

ARDMS SPI EXAM LATEST REAL EXAM 150 QUESTIONS AND CORRECT
ANSWERS | A + GRADE ASSURED
Question 1
Which of the following describes the number of cycles an acoustic wave completes in one
second?
A) Wavelength
B) Period
C) Frequency
D) Amplitude
E) Intensity
Correct Answer: C) Frequency
Rationale: Frequency is defined as the number of cycles per unit time, typically expressed in
Hertz (Hz), cycles per second.
Question 2
As an ultrasound wave travels through tissue, its intensity decreases. This phenomenon is
called:
A) Reflection
B) Refraction
C) Attenuation
D) Scattering
E) Absorption
Correct Answer: C) Attenuation
Rationale: Attenuation is the decrease in intensity and amplitude of a sound wave as it travels
through a medium, due to absorption, reflection, and scattering.
Question 3
Which of the following transducer components is responsible for reducing the ringing of the
piezoelectric element, thereby improving axial resolution?
A) Matching layer
B) Piezoelectric crystal
C) Damping material
D) Acoustic lens
E) Electrical wire
Correct Answer: C) Damping material
Rationale: Damping material, also known as backing material, is placed behind the
piezoelectric crystal to absorb energy and reduce the pulse duration, leading to better axial
resolution.
,Question 4
A shorter pulse duration directly leads to improved:
A) Lateral resolution
B) Temporal resolution
C) Axial resolution
D) Contrast resolution
E) Spatial resolution
Correct Answer: C) Axial resolution
Rationale: Axial resolution is the ability to distinguish two structures lying along the path of
the sound beam. It is directly improved by shorter pulse durations and shorter spatial pulse
lengths.
Question 5
What principle states that the angle of incidence equals the angle of reflection?
A) Snell's Law
B) Huygens' Principle
C) Law of Reflection
D) Doppler Effect
E) Inverse Square Law
Correct Answer: C) Law of Reflection
Rationale: The Law of Reflection states that when sound strikes a smooth interface, the angle
at which it hits the interface (angle of incidence) is equal to the angle at which it leaves (angle of
reflection).
Question 6
Which imaging mode displays returning echoes as a series of dots, with the brightness of each
dot corresponding to the echo strength?
A) A-mode
B) M-mode
C) B-mode
D) Doppler mode
E) 3D mode
Correct Answer: C) B-mode
Rationale: B-mode (Brightness mode) displays echoes as dots with varying brightness, creating
the real-time 2D grayscale image.
,Question 7
Increasing the transducer frequency will generally result in:
A) Decreased axial resolution
B) Increased penetration
C) Decreased lateral resolution
D) Improved axial resolution
E) No change in resolution
Correct Answer: D) Improved axial resolution
Rationale: Higher frequency transducers have shorter wavelengths, leading to shorter spatial
pulse lengths and thus improved axial resolution. However, penetration decreases with higher
frequencies.
Question 8
Aliasing in Doppler ultrasound occurs when the Doppler shift frequency exceeds:
A) The transducer's operating frequency
B) The Nyquist limit
C) The pulse repetition frequency (PRF)
D) The speed of sound in tissue
E) The spatial pulse length
Correct Answer: B) The Nyquist limit
Rationale: Aliasing occurs when the Doppler shift frequency is greater than half of the pulse
repetition frequency (PRF), which is known as the Nyquist limit.
Question 9
What artifact appears as a bright, hyperechoic line directly beneath a highly reflective surface,
such as a needle or a diaphragm?
A) Shadowing
B) Enhancement
C) Reverberation
D) Comet tail
E) Mirror image
Correct Answer: D) Comet tail
Rationale: A comet tail artifact is a type of reverberation artifact that appears as a narrow,
hyperechoic trail distal to a highly reflective object, particularly small metallic or crystalline
structures.
, Question 10
The ability of an ultrasound system to distinguish between two structures that are
perpendicular to the sound beam is called:
A) Axial resolution
B) Temporal resolution
C) Lateral resolution
D) Contrast resolution
E) Spatial resolution
Correct Answer: C) Lateral resolution
Rationale: Lateral resolution is the ability to distinguish two structures side-by-side
(perpendicular) to the sound beam. It is primarily determined by beam width.
Question 11
Which of the following will decrease the mechanical index (MI)?
A) Increasing transducer frequency
B) Increasing peak rarefactional pressure
C) Decreasing transducer frequency
D) Increasing pulse repetition frequency
E) Decreasing pulse duration
Correct Answer: A) Increasing transducer frequency
Rationale: The Mechanical Index (MI) is inversely related to frequency (MI = Peak
Rarefactional Pressure / sqrt(Frequency)). Increasing frequency will decrease MI.
Question 12
The piezoelectric effect describes the ability of certain materials to:
A) Convert electrical energy into sound energy and vice versa.
B) Produce light when exposed to sound waves.
C) Attenuate sound waves rapidly.
D) Reflect all incident sound waves.
E) Focus sound waves through refraction.
Correct Answer: A) Convert electrical energy into sound energy and vice versa.
Rationale: The piezoelectric effect is the fundamental principle of ultrasound transducers,
where crystals convert electrical energy into mechanical (sound) energy and convert mechanical
(sound) energy back into electrical energy.
