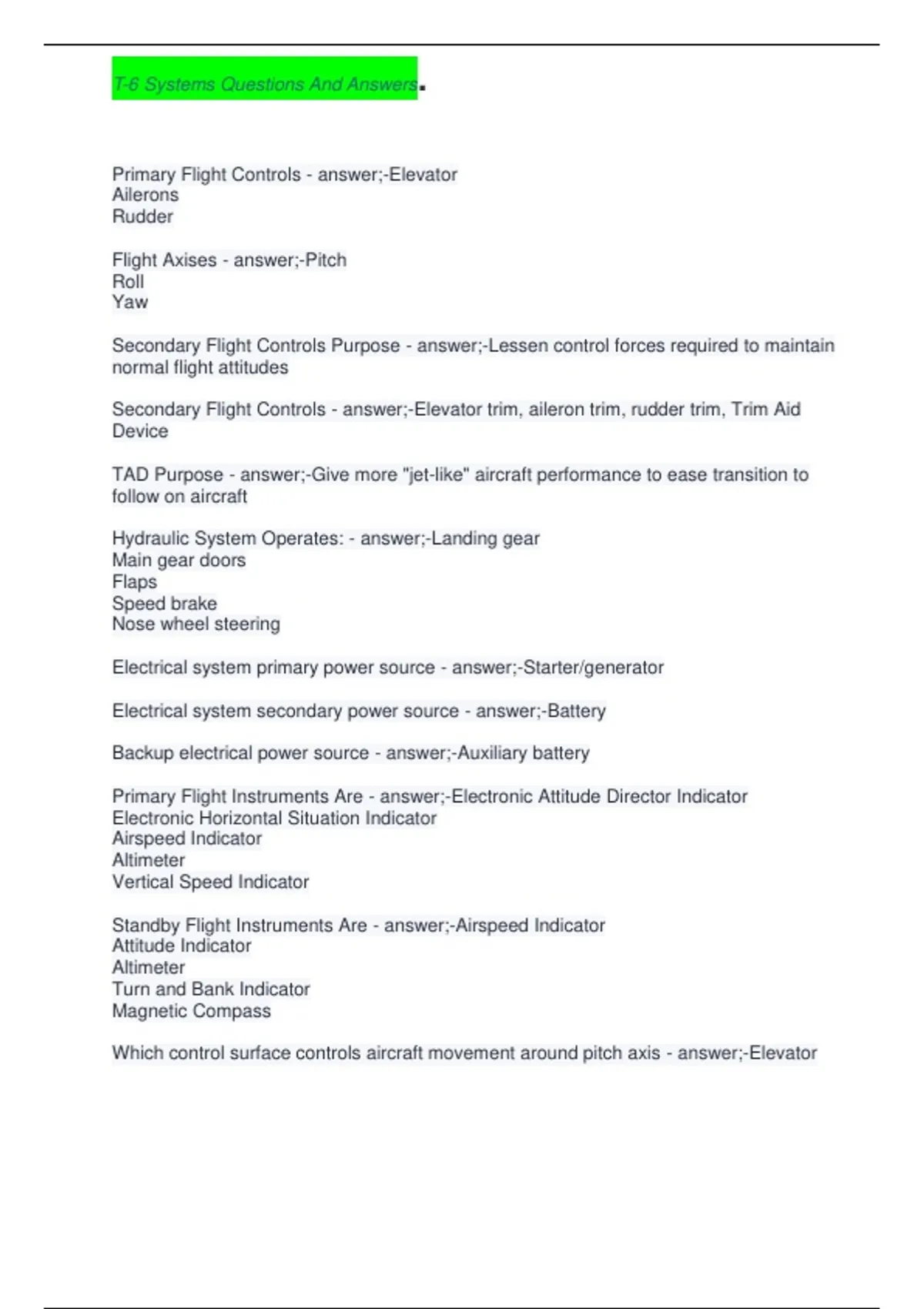

T-6 Systems Questions And Answers .
Primary Flight Controls - answer;-Elevator
Ailerons
Rudder
Flight Axises - answer;-Pitch
Roll
Yaw
Secondary Flight Controls Purpose - answer;-Lessen control forces required to maintain
normal flight attitudes
Secondary Flight Controls - answer;-Elevator trim, aileron trim, rudder trim, Trim Aid
Device
TAD Purpose - answer;-Give more "jet-like" aircraft performance to ease transition to
follow on aircraft
Hydraulic System Operates: - answer;-Landing gear
Main gear doors
Flaps
Speed brake
Nose wheel steering
Electrical system primary power source - answer;-Starter/generator
Electrical system secondary power source - answer;-Battery
Backup electrical power source - answer;-Auxiliary battery
Primary Flight Instruments Are - answer;-Electronic Attitude Director Indicator
Electronic Horizontal Situation Indicator
Airspeed Indicator
Altimeter
Vertical Speed Indicator
Standby Flight Instruments Are - answer;-Airspeed Indicator
Attitude Indicator
Altimeter
Turn and Bank Indicator
Magnetic Compass
Which control surface controls aircraft movement around pitch axis - answer;-Elevator
,T-6 Systems Questions And Answers .
TAD assists trimming for which control surface? What does it take into consideration? -
answer;-The TAD senses torque, altitude, airspeed, and pitch rate and computes a
desired rudder trim tab position
T/F Engine exhaust augments the thrust of the propeller - answer;-True. Exhaust gases
are ejected rearward providing thrust which augments that provided by the propeller
Primary aircraft electrical power is provided by which component of the electrical system
- answer;-The generator function of the starter/generator
Tuning for each of the communications and navigation radios and the transponder is
provided by which component - answer;-RMU
T/F the VHF navigation system provides VOR, ILS, localizer and GPS capability -
answer;-False. The VHF system provides VOR, ILS, localizer, and glideslope capability
Primary navigation display is provided by which component of the EFIS - answer;-
Electronic Horizontal Situation Indicator EHSI
Which standby flight instruments will operate without electrical power - answer;-The
standby altimeter, airspeed indicator, the ball in the turn and bank indicator, and the
magnetic compass.
T/F The entire canopy structure is engineered to be protected from birdstrikes -
answer;-False. Only the windscreen and front canopy transparency are protected
Landing gear extension and retraction is operated by which aircraft system - answer;-
Hydraulic
Movement around the roll axis is controlled by which primary control surface - answer;-
Ailerons
What component of the ejection seat provides sufficient altitude for parachute
deployment - answer;-Rocket motor
T/R The magnetic compass is one of the primary flight instruments - answer;-False. The
magnetic compass is a standby flight instrument.
Secondary aircraft electrical power is provided by what compoenent - answer;-24 volt
battery
Which aircraft system provides automatic temperature and pressure control - answer;-
Environment control system
, T-6 Systems Questions And Answers .
Control of the transponder is provided by which component - answer;-RMU
T/R The canopy is hinged at the rear and opens up - answer;-False. The canopy is
hinged along the right side and opens to that side
Which primary instrument provides primary attitude display - answer;-Electronic attitude
Director Indicator
In the event of inadvertent aircraft contract with the ground, which component will be
activated and generate a radio signal - answer;-The personal locator radio beacon
senses impact loads and generates a signal on 121.5 and 243.0 MHz or 121.5 and
406.0 MHz
What is the purpose of the engine cowlings (3) - answer;-Protect the engine
components, degrease drag, and provide engine air intake
What does the inertial separator do - answer;-Causes air molecules to turn 90* to the
engine compartment. Heavier particles such as water or debris are not able to make the
turn and are returned to the atmosphere through a bypass duct.
What type of engine is on the T-6 - answer;-Pratt and Whitney PT6A-68 free turnbine,
reverse flow design turboprop engine
What three elements are necessary for engine operation - answer;-Air
Fuel
Heat
What are the major sections of the engine - answer;-Accessory compartment
Gas generation section
Power turbine section
What are the major systems in the accessory compartment - answer;-Accessory
gearbox
Battery
Oil Tank
Starter/generator
What does the starter do - answer;-turns the compressor turbine and compressor which
provides air to the engine until it starts and is able to sustain itself
What components does the gas generation section contain - answer;-Compressor inlet
Compressor
Combustion Chamber
Compressor Turbine
Primary Flight Controls - answer;-Elevator
Ailerons
Rudder
Flight Axises - answer;-Pitch
Roll
Yaw
Secondary Flight Controls Purpose - answer;-Lessen control forces required to maintain
normal flight attitudes
Secondary Flight Controls - answer;-Elevator trim, aileron trim, rudder trim, Trim Aid
Device
TAD Purpose - answer;-Give more "jet-like" aircraft performance to ease transition to
follow on aircraft
Hydraulic System Operates: - answer;-Landing gear
Main gear doors
Flaps
Speed brake
Nose wheel steering
Electrical system primary power source - answer;-Starter/generator
Electrical system secondary power source - answer;-Battery
Backup electrical power source - answer;-Auxiliary battery
Primary Flight Instruments Are - answer;-Electronic Attitude Director Indicator
Electronic Horizontal Situation Indicator
Airspeed Indicator
Altimeter
Vertical Speed Indicator
Standby Flight Instruments Are - answer;-Airspeed Indicator
Attitude Indicator
Altimeter
Turn and Bank Indicator
Magnetic Compass
Which control surface controls aircraft movement around pitch axis - answer;-Elevator
,T-6 Systems Questions And Answers .
TAD assists trimming for which control surface? What does it take into consideration? -
answer;-The TAD senses torque, altitude, airspeed, and pitch rate and computes a
desired rudder trim tab position
T/F Engine exhaust augments the thrust of the propeller - answer;-True. Exhaust gases
are ejected rearward providing thrust which augments that provided by the propeller
Primary aircraft electrical power is provided by which component of the electrical system
- answer;-The generator function of the starter/generator
Tuning for each of the communications and navigation radios and the transponder is
provided by which component - answer;-RMU
T/F the VHF navigation system provides VOR, ILS, localizer and GPS capability -
answer;-False. The VHF system provides VOR, ILS, localizer, and glideslope capability
Primary navigation display is provided by which component of the EFIS - answer;-
Electronic Horizontal Situation Indicator EHSI
Which standby flight instruments will operate without electrical power - answer;-The
standby altimeter, airspeed indicator, the ball in the turn and bank indicator, and the
magnetic compass.
T/F The entire canopy structure is engineered to be protected from birdstrikes -
answer;-False. Only the windscreen and front canopy transparency are protected
Landing gear extension and retraction is operated by which aircraft system - answer;-
Hydraulic
Movement around the roll axis is controlled by which primary control surface - answer;-
Ailerons
What component of the ejection seat provides sufficient altitude for parachute
deployment - answer;-Rocket motor
T/R The magnetic compass is one of the primary flight instruments - answer;-False. The
magnetic compass is a standby flight instrument.
Secondary aircraft electrical power is provided by what compoenent - answer;-24 volt
battery
Which aircraft system provides automatic temperature and pressure control - answer;-
Environment control system
, T-6 Systems Questions And Answers .
Control of the transponder is provided by which component - answer;-RMU
T/R The canopy is hinged at the rear and opens up - answer;-False. The canopy is
hinged along the right side and opens to that side
Which primary instrument provides primary attitude display - answer;-Electronic attitude
Director Indicator
In the event of inadvertent aircraft contract with the ground, which component will be
activated and generate a radio signal - answer;-The personal locator radio beacon
senses impact loads and generates a signal on 121.5 and 243.0 MHz or 121.5 and
406.0 MHz
What is the purpose of the engine cowlings (3) - answer;-Protect the engine
components, degrease drag, and provide engine air intake
What does the inertial separator do - answer;-Causes air molecules to turn 90* to the
engine compartment. Heavier particles such as water or debris are not able to make the
turn and are returned to the atmosphere through a bypass duct.
What type of engine is on the T-6 - answer;-Pratt and Whitney PT6A-68 free turnbine,
reverse flow design turboprop engine
What three elements are necessary for engine operation - answer;-Air
Fuel
Heat
What are the major sections of the engine - answer;-Accessory compartment
Gas generation section
Power turbine section
What are the major systems in the accessory compartment - answer;-Accessory
gearbox
Battery
Oil Tank
Starter/generator
What does the starter do - answer;-turns the compressor turbine and compressor which
provides air to the engine until it starts and is able to sustain itself
What components does the gas generation section contain - answer;-Compressor inlet
Compressor
Combustion Chamber
Compressor Turbine
