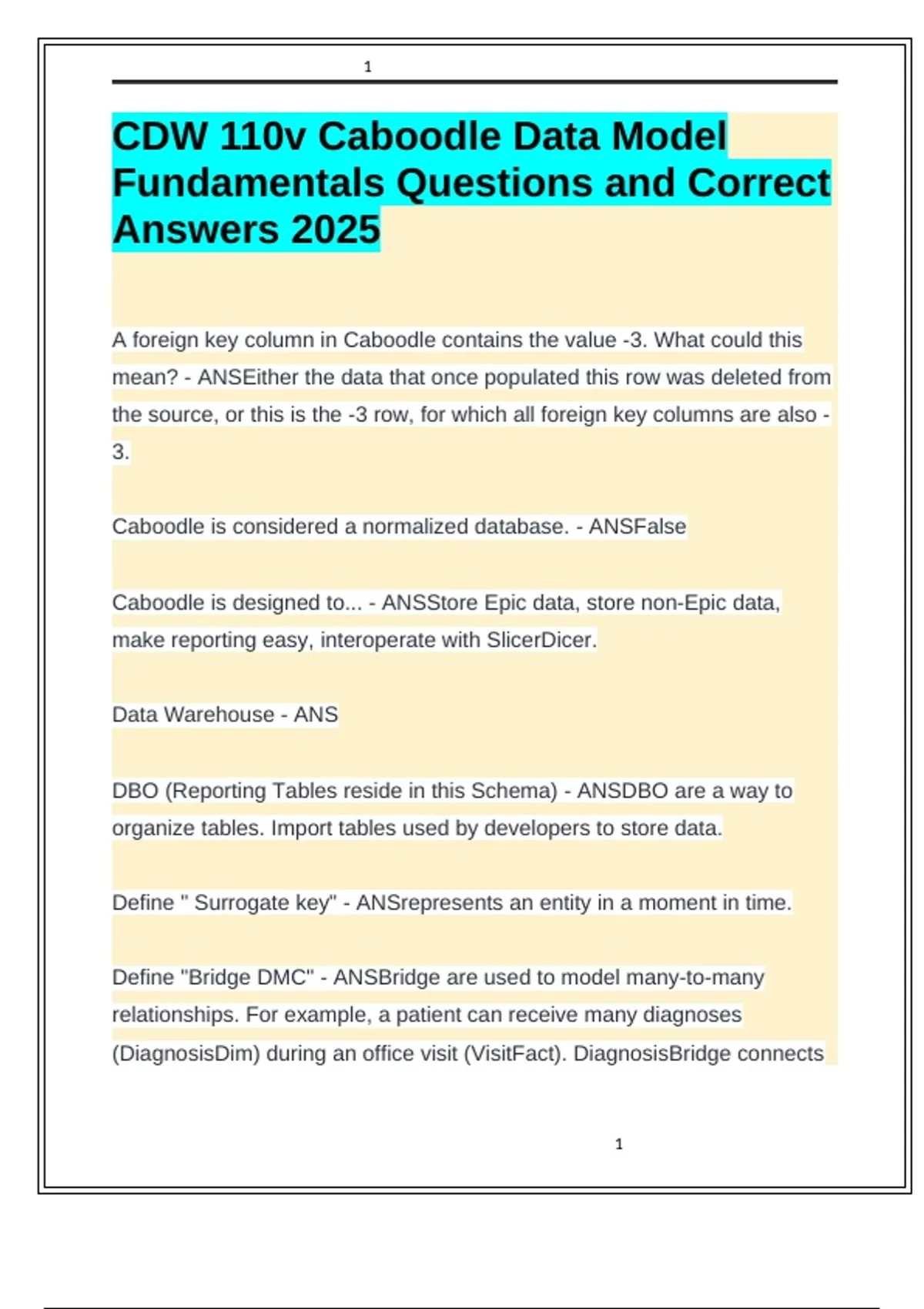

CDW 110v Caboodle Data Model
Fundamentals Questions and Correct
Answers 2025
A foreign key column in Caboodle contains the value -3. What could this
mean? - ANSEither the data that once populated this row was deleted from
the source, or this is the -3 row, for which all foreign key columns are also -
3.
Caboodle is considered a normalized database. - ANSFalse
Caboodle is designed to... - ANSStore Epic data, store non-Epic data,
make reporting easy, interoperate with SlicerDicer.
Data Warehouse - ANS
DBO (Reporting Tables reside in this Schema) - ANSDBO are a way to
organize tables. Import tables used by developers to store data.
Define " Surrogate key" - ANSrepresents an entity in a moment in time.
Define "Bridge DMC" - ANSBridge are used to model many-to-many
relationships. For example, a patient can receive many diagnoses
(DiagnosisDim) during an office visit (VisitFact). DiagnosisBridge connects
1
, 2
the visit to the collection of diagnoses to which it is associate. The names
of bridge DMC end with "Bridge"
Define "Business key" - ANSThe business key of a record is the unique
identifier it had in its source.
In Caboodle, business keys are stored as a combination of two data points:
"IdType" and "Id"
Define "Conformed dimension" - ANSThere are many fact DMC's in
Caboodle. Rather than define a complete set of dimensions for each, it's
wise to reuse them wherever possible. For example, most fact DMC's
require a dimension describing patients, and they all reference the same
table (PatientDim) to do so. Dimensions that provide context to multiple
facts in this way are said to be conformed dimensions.
Define "Deleted Foreign Key" - ANSEvery DMC in Caboodle has a row with
a surrogate key of -3
This row provides a place for foreign keys in deleted rows to point
Define "Dimensional data model" - ANS1. The data is more accessible
2. Efficiency
3. Fewer tables and simpler joins
Define "Durable key" - ANSEvery type 2 DMC has a column named
DurableKey. This column contains the same value for all the rows that
2
, 3
belong to a specific entity. For example, in PatientDim, all the rows
corresponding to a specific patient will have the same durable key. (each
row will have a unique surrogate key)
Define "IdLookup table" - ANSyou can find all the business keys that
belong to a single record by querying Caboodles metadata. Lookup tables
are found in the staging database under the Epic schema and follow the
naming convention <DMC Name>_IdLookup. These tables are not
generally for reporting but are critical to the operation of Caboodles
infrastructure.
Define "IdType" - ANSthe IdType column contains a string value that
specifies the type of entity loaded
Define "Inferred row" - ANSWhen a foreign key value exists but doesn't
correspond to a row in the target table, an inferred row is created.
These default values are updated when the expected row is eventually
loaded.
Define "Normalized data model" - ANSNormalized databases avoid
redundancies in the data to make ETL safe and simple
Define "Profile dimension" - ANSA "Profile Dimension" holds dimensional
data that is specific to a single fact DMC.
3
