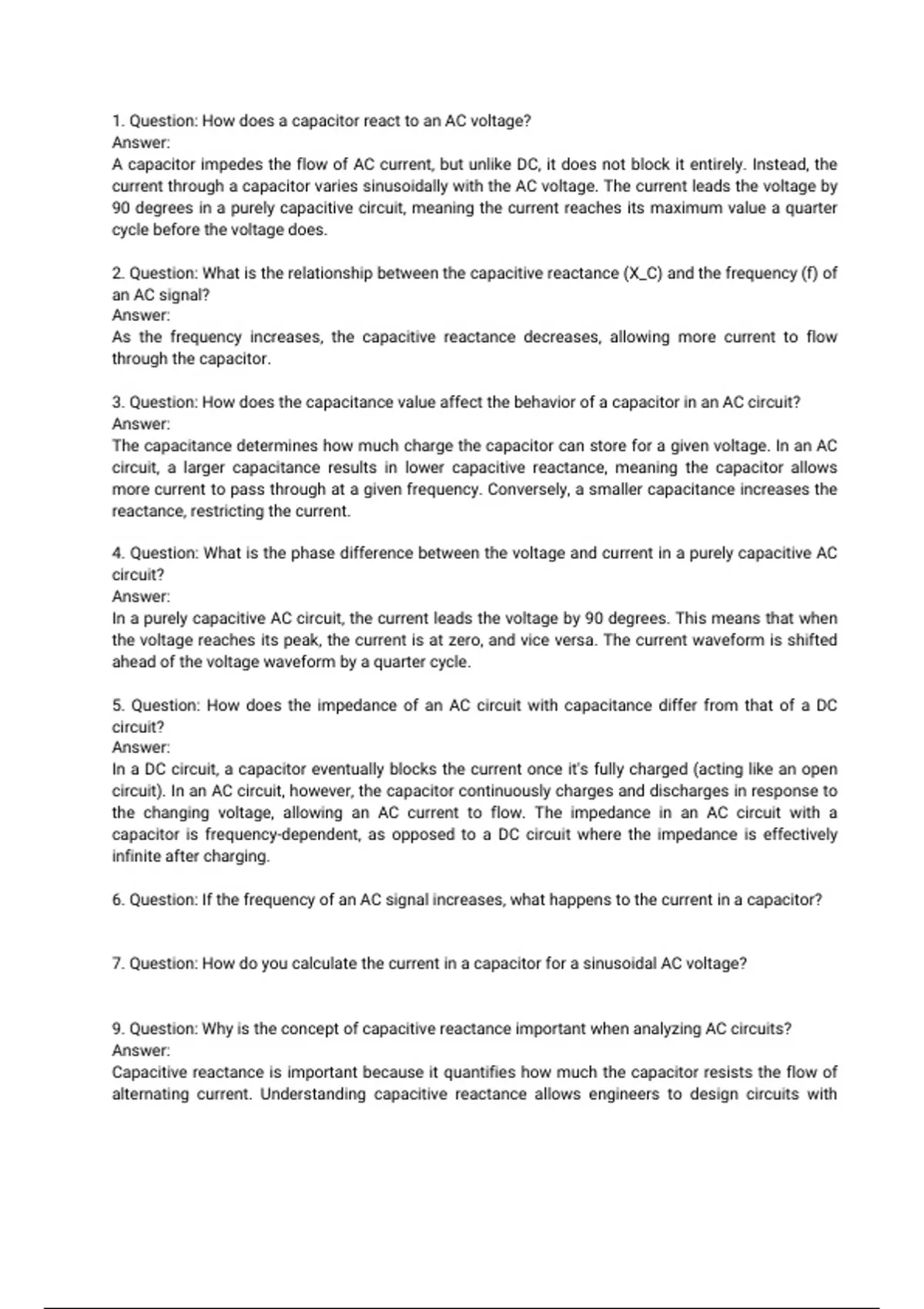

1. Question: How does a capacitor react to an AC voltage?
Answer:
A capacitor impedes the flow of AC current, but unlike DC, it does not block it entirely. Instead, the
current through a capacitor varies sinusoidally with the AC voltage. The current leads the voltage by
90 degrees in a purely capacitive circuit, meaning the current reaches its maximum value a quarter
cycle before the voltage does.
2. Question: What is the relationship between the capacitive reactance (X_C) and the frequency (f) of
an AC signal?
Answer:
As the frequency increases, the capacitive reactance decreases, allowing more current to flow
through the capacitor.
3. Question: How does the capacitance value affect the behavior of a capacitor in an AC circuit?
Answer:
The capacitance determines how much charge the capacitor can store for a given voltage. In an AC
circuit, a larger capacitance results in lower capacitive reactance, meaning the capacitor allows
more current to pass through at a given frequency. Conversely, a smaller capacitance increases the
reactance, restricting the current.
4. Question: What is the phase difference between the voltage and current in a purely capacitive AC
circuit?
Answer:
In a purely capacitive AC circuit, the current leads the voltage by 90 degrees. This means that when
the voltage reaches its peak, the current is at zero, and vice versa. The current waveform is shifted
ahead of the voltage waveform by a quarter cycle.
5. Question: How does the impedance of an AC circuit with capacitance differ from that of a DC
circuit?
Answer:
In a DC circuit, a capacitor eventually blocks the current once it's fully charged (acting like an open
circuit). In an AC circuit, however, the capacitor continuously charges and discharges in response to
the changing voltage, allowing an AC current to flow. The impedance in an AC circuit with a
capacitor is frequency-dependent, as opposed to a DC circuit where the impedance is effectively
infinite after charging.
6. Question: If the frequency of an AC signal increases, what happens to the current in a capacitor?
7. Question: How do you calculate the current in a capacitor for a sinusoidal AC voltage?
9. Question: Why is the concept of capacitive reactance important when analyzing AC circuits?
Answer:
Capacitive reactance is important because it quantifies how much the capacitor resists the flow of
alternating current. Understanding capacitive reactance allows engineers to design circuits with
Answer:
A capacitor impedes the flow of AC current, but unlike DC, it does not block it entirely. Instead, the
current through a capacitor varies sinusoidally with the AC voltage. The current leads the voltage by
90 degrees in a purely capacitive circuit, meaning the current reaches its maximum value a quarter
cycle before the voltage does.
2. Question: What is the relationship between the capacitive reactance (X_C) and the frequency (f) of
an AC signal?
Answer:
As the frequency increases, the capacitive reactance decreases, allowing more current to flow
through the capacitor.
3. Question: How does the capacitance value affect the behavior of a capacitor in an AC circuit?
Answer:
The capacitance determines how much charge the capacitor can store for a given voltage. In an AC
circuit, a larger capacitance results in lower capacitive reactance, meaning the capacitor allows
more current to pass through at a given frequency. Conversely, a smaller capacitance increases the
reactance, restricting the current.
4. Question: What is the phase difference between the voltage and current in a purely capacitive AC
circuit?
Answer:
In a purely capacitive AC circuit, the current leads the voltage by 90 degrees. This means that when
the voltage reaches its peak, the current is at zero, and vice versa. The current waveform is shifted
ahead of the voltage waveform by a quarter cycle.
5. Question: How does the impedance of an AC circuit with capacitance differ from that of a DC
circuit?
Answer:
In a DC circuit, a capacitor eventually blocks the current once it's fully charged (acting like an open
circuit). In an AC circuit, however, the capacitor continuously charges and discharges in response to
the changing voltage, allowing an AC current to flow. The impedance in an AC circuit with a
capacitor is frequency-dependent, as opposed to a DC circuit where the impedance is effectively
infinite after charging.
6. Question: If the frequency of an AC signal increases, what happens to the current in a capacitor?
7. Question: How do you calculate the current in a capacitor for a sinusoidal AC voltage?
9. Question: Why is the concept of capacitive reactance important when analyzing AC circuits?
Answer:
Capacitive reactance is important because it quantifies how much the capacitor resists the flow of
alternating current. Understanding capacitive reactance allows engineers to design circuits with
