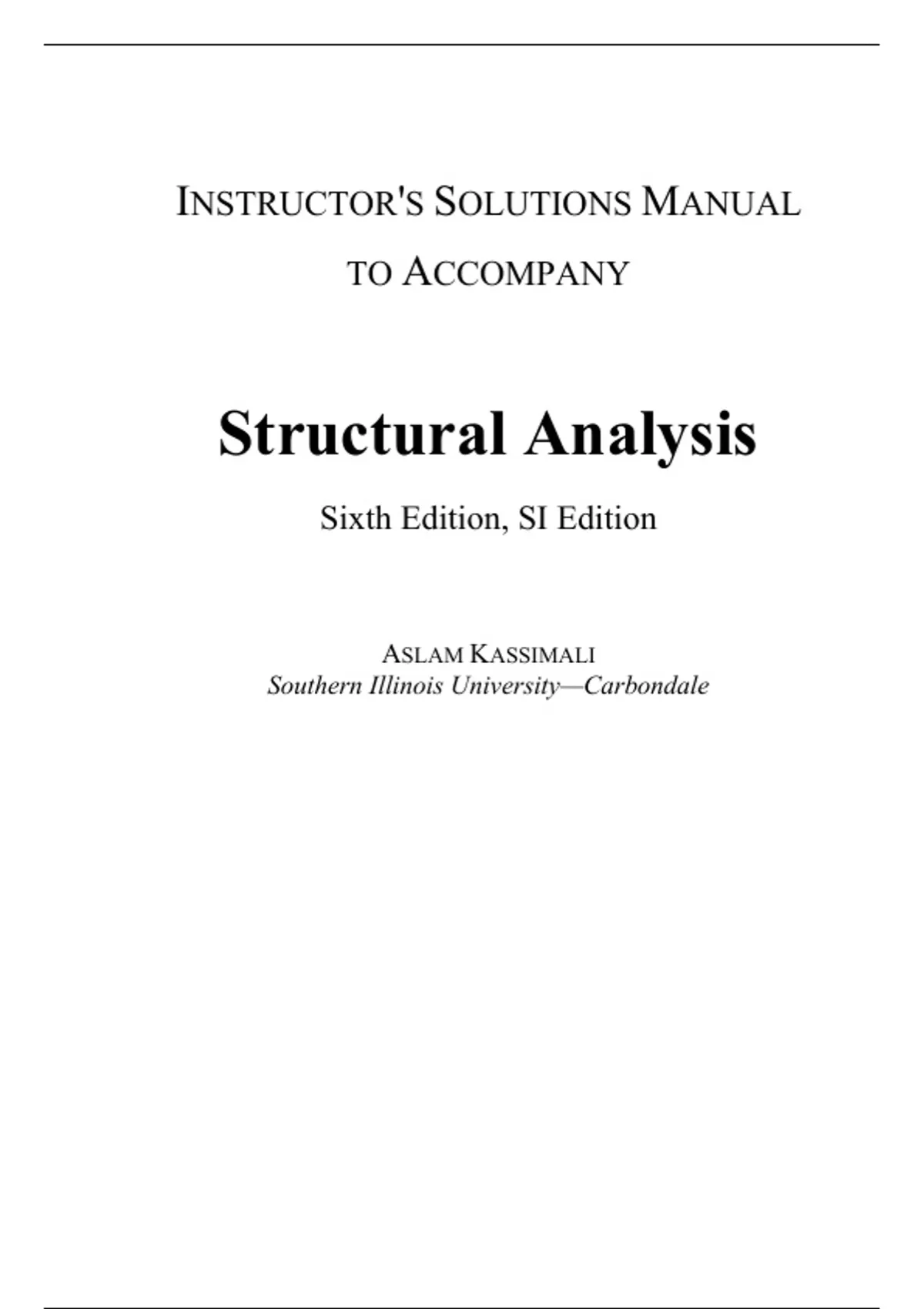

INSTRUCTOR'S SOLUTIONS MANUAL
TO ACCOMPANY
Structural Analysis
Sixth Edition, SI Edition
ASLAM KASSIMALI
Southern Illinois University—Carbondale
, Contents
Chapter 2............................................................................................................................. 1
Chapter 3........................................................................................................................... 18
Chapter 4........................................................................................................................... 62
Chapter 5......................................................................................................................... 117
Chapter 6......................................................................................................................... 200
Chapter 7......................................................................................................................... 281
Chapter 8......................................................................................................................... 362
Chapter 9......................................................................................................................... 423
Chapter 10....................................................................................................................... 447
Chapter 12....................................................................................................................... 478
Chapter 13....................................................................................................................... 508
Chapter 14....................................................................................................................... 599
Chapter 15....................................................................................................................... 631
Chapter 16....................................................................................................................... 685
Chapter 17....................................................................................................................... 728
Appendix B ...................................................................................................................... 751
Appendix C ...................................................................................................................... 761
Appendix D ...................................................................................................................... 762
, Chapter 7
7.1
300 kN B
4m
0
400
50
A 300 C
300
400 400
3m F Forces
1 kN
1 kN B B
5
3 4
1
3
A 1 C A
1 kN C
4 4 1 kN
3 3
Fv1 Forces Fv2 Forces
281
© 2020 Cengage Learning®. All Rights Reserved. May not be scanned, copied or duplicated, or posted to a publicly accessible website,
in whole or in part.
, 7.1 (CONTD.)
Member L (m) F(kN) Fv1 (kN) Fv1 [FL] (kN2 · m) Fv2 (kN) Fv2 [FL] (kN2 · m)
AC 3 300 1.00 900 0 0.00
AB 5 −500 −1.67 4175 0 0.00
BC 4 400 1.34 2144 −1 −1600.00
7219 −1600.00
7219
(1 kN)BH = = 0.0106 kN · m
200 · 3400
BH = 10.6 mm ←
−1600
(1 kN)BV = = - 0.00235 kN · m
200 · 3400
BV = 2.35 mm ↑
282
© 2020 Cengage Learning®. All Rights Reserved. May not be scanned, copied or duplicated, or posted to a publicly accessible website,
in whole or in part.
