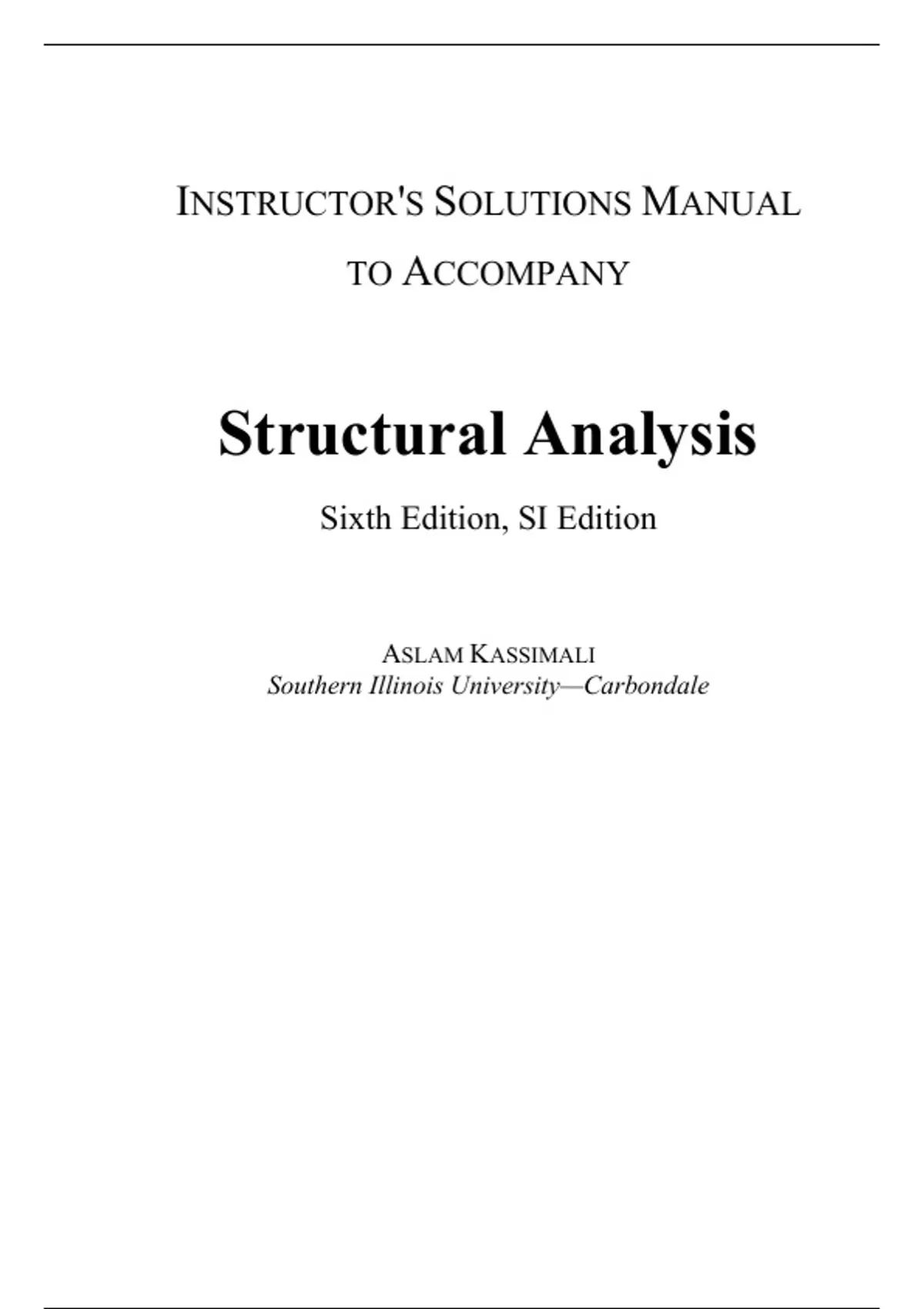

INSTRUCTOR'S SOLUTIONS MANUAL
TO ACCOMPANY
Structural Analysis
Sixth Edition, SI Edition
ASLAM KASSIMALI
Southern Illinois University—Carbondale
, Contents
Chapter 2............................................................................................................................. 1
Chapter 3........................................................................................................................... 18
Chapter 4........................................................................................................................... 62
Chapter 5......................................................................................................................... 117
Chapter 6......................................................................................................................... 200
Chapter 7......................................................................................................................... 281
Chapter 8......................................................................................................................... 362
Chapter 9......................................................................................................................... 423
Chapter 10....................................................................................................................... 447
Chapter 12....................................................................................................................... 478
Chapter 13....................................................................................................................... 508
Chapter 14....................................................................................................................... 599
Chapter 15....................................................................................................................... 631
Chapter 16....................................................................................................................... 685
Chapter 17....................................................................................................................... 728
Appendix B ...................................................................................................................... 751
Appendix C ...................................................................................................................... 761
Appendix D ...................................................................................................................... 762
, Chapter 12
12.1
30 kN/m
ML L
R MR
SL SR
4.8 m
0.6 m 0.6 m
90
72
–72
–90
Shear Diagram (kN)
86.4
–48.6 –48.6
Bending Moment Diagram (kN ¨ mq
478
© 2020 Cengage Learning®. All Rights Reserved. May not be scanned, copied or duplicated, or posted to a publicly accessible website,
in whole or in part.
, 12.2
24 kN/m
ML L R MR
SL SR
8m
1m 1m
120
96
–96
–120
Shear Diagram (kN)
192
− 108 − 108
Bending Moment Diagram (kN ⋅ m)
479
© 2020 Cengage Learning®. All Rights Reserved. May not be scanned, copied or duplicated, or posted to a publicly accessible website,
in whole or in part.
