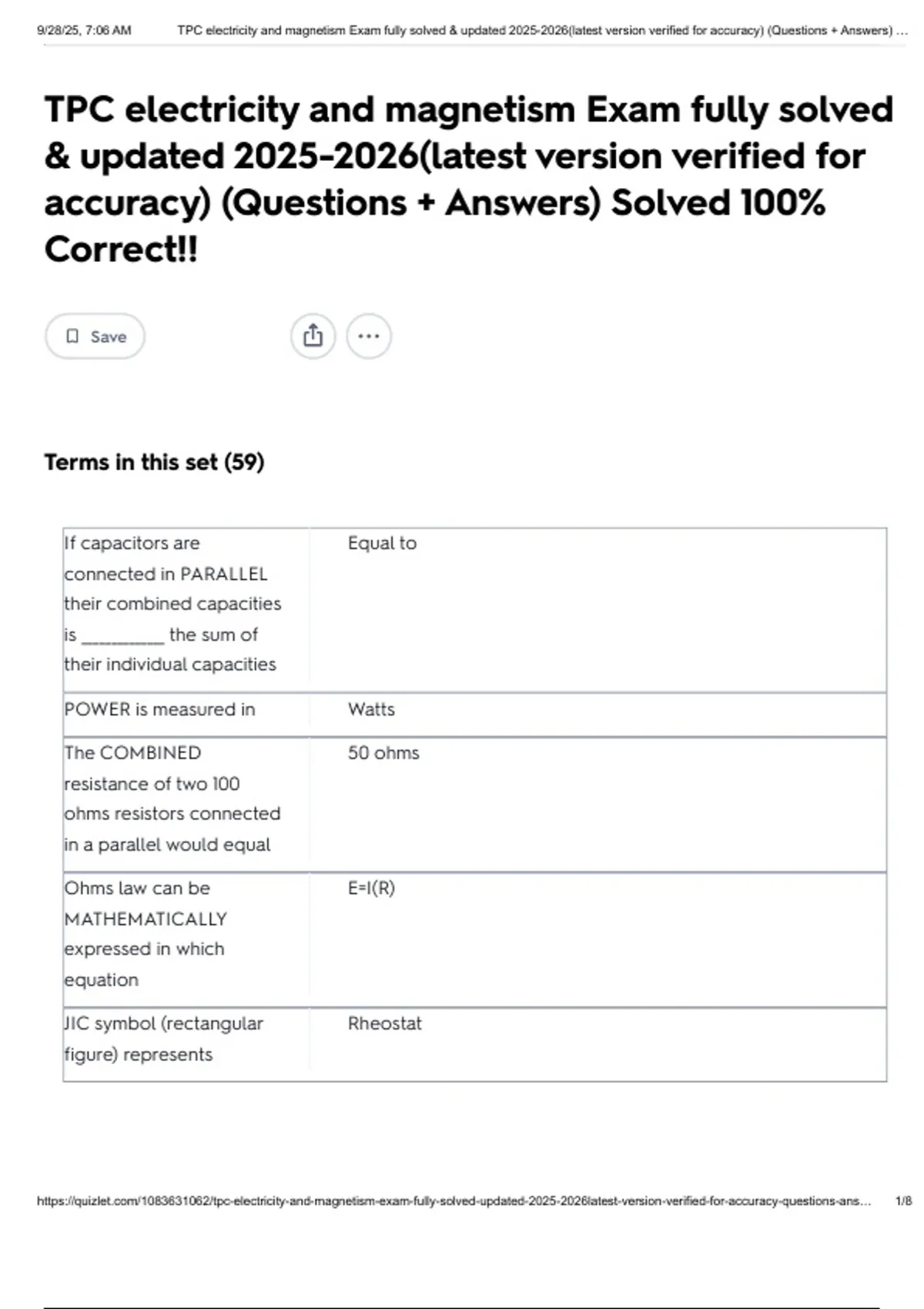

TPC electricity and magnetism Exam fully solved
& updated 2025-2026(latest version verified for
accuracy) (Questions + Answers) Solved 100%
Correct!!
Save
Terms in this set (59)
If capacitors are Equal to
connected in PARALLEL
their combined capacities
is ______________ the sum of
their individual capacities
POWER is measured in Watts
The COMBINED 50 ohms
resistance of two 100
ohms resistors connected
in a parallel would equal
Ohms law can be E=I(R)
MATHEMATICALLY
expressed in which
equation
JIC symbol (rectangular Rheostat
figure) represents
https://quizlet.com/1083631062/tpc-electricity-and-magnetism-exam-fully-solved-updated-2025-2026latest-version-verified-for-accuracy-questions-ans… 1/8
, 9/28/25, 7:06 AM TPC electricity and magnetism Exam fully solved & updated 2025-2026(latest version verified for accuracy) (Questions + Answers) …
The 4th color band on a 10%
resistor is SILVER, the
measured value of
resistance is within________
of the marked value
The CENTER section of a Base
transistor is called the
An optoisolator recites a Higher
LOW voltage signal on
LED side of the device
and triggers a ________
voltage on the out-put
If a GAP exists in an Open
electric current, the circuit
is said to be_______
a WATT is defined as a Second
joule per ______
AMPERES is the standard Electric current
unit of measurement for
_________
In order to dissipate the Large
HEAT of high current
loads a resistor must be
physically _________
If the POTENTIAL Decreases to Zero
DIFFERENCE across a
resistor decreases to zero,
the current ___________
a CATHODE has a _________ Negative
charge
