Construction Drawings Questions and Correct Answers/ Latest Update / Already Graded

Institution
Construction Drawings
Course
Construction Drawings

Content preview

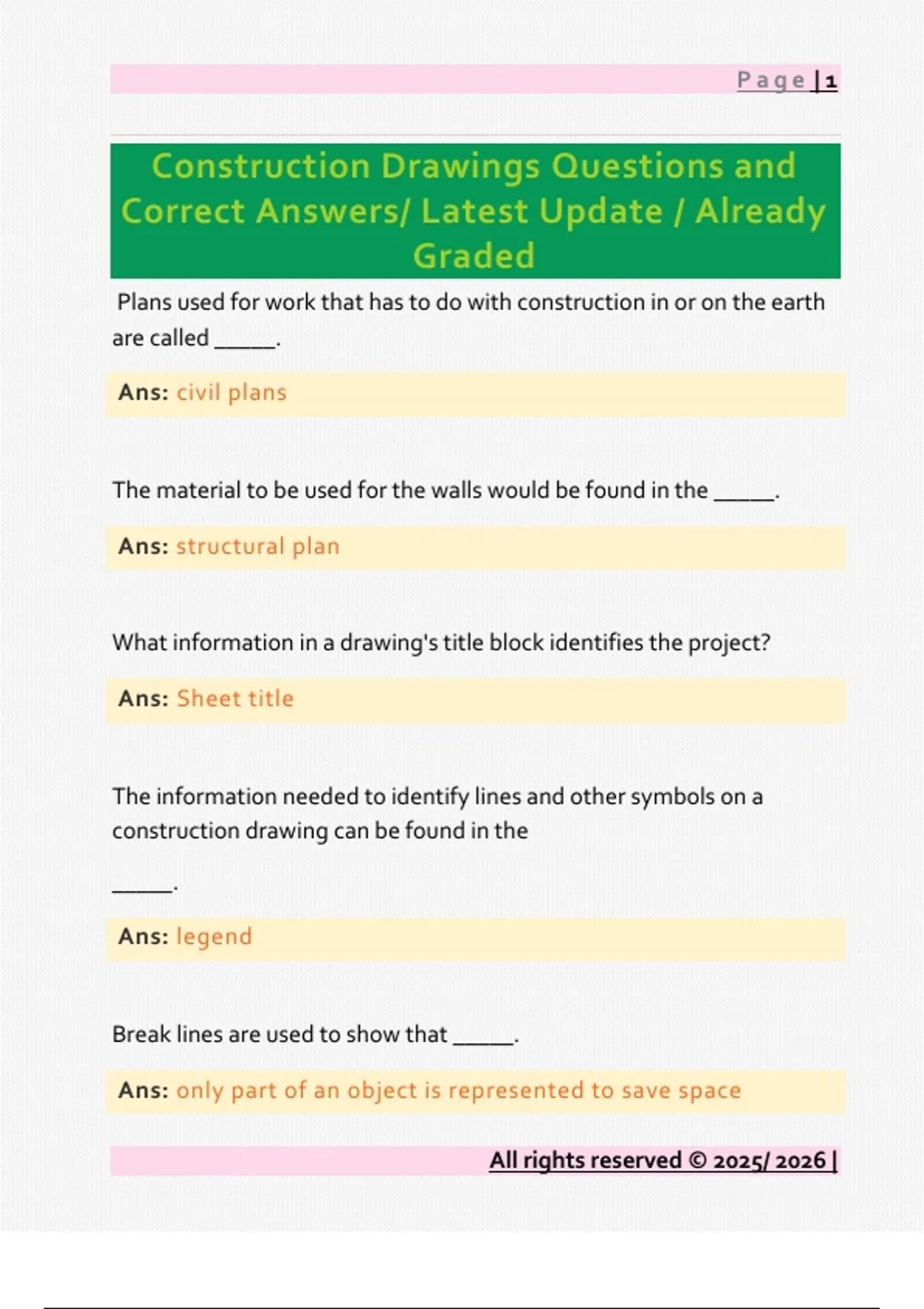

Page |1


Construction Drawings Questions and
Correct Answers/ Latest Update / Already
Graded
Plans used for work that has to do with construction in or on the earth
are called _____.

Ans: civil plans


The material to be used for the walls would be found in the _____.

Ans: structural plan


What information in a drawing's title block identifies the project?

Ans: Sheet title


The information needed to identify lines and other symbols on a
construction drawing can be found in the

_____.

Ans: legend


Break lines are used to show that _____.

Ans: only part of an object is represented to save space

All rights reserved © 2025/ 2026 |
