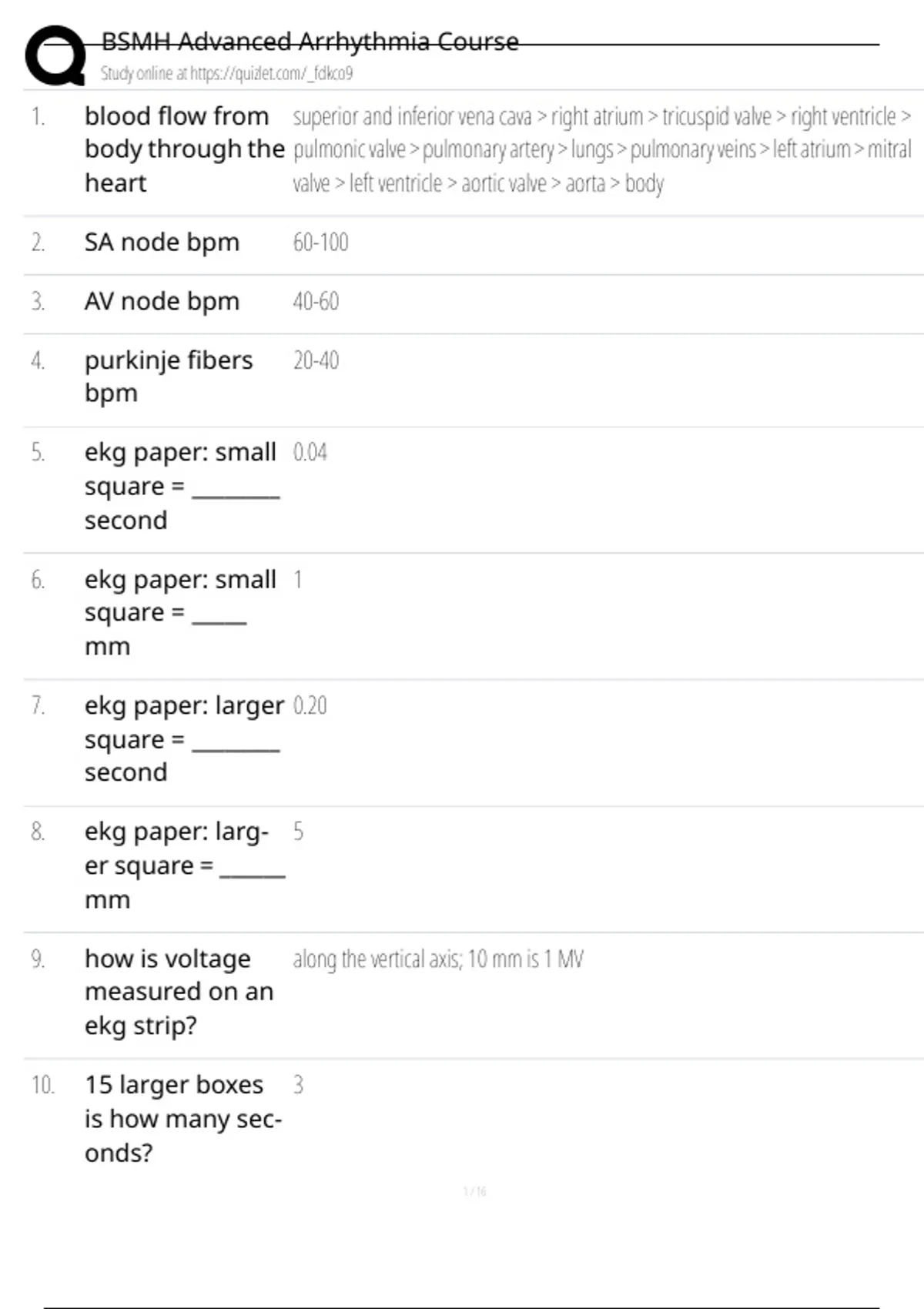

BSMH Advanced Arrhythmia Course
Study online at https://quizlet.com/_fdkco9
1. blood flow from superior and inferior vena cava > right atrium > tricuspid valve > right ventricle >
body through the pulmonic valve > pulmonary artery > lungs > pulmonary veins > left atrium > mitral
heart valve > left ventricle > aortic valve > aorta > body
2. SA node bpm 60-100
3. AV node bpm 40-60
4. purkinje fibers 20-40
bpm
5. ekg paper: small 0.04
square = ________
second
6. ekg paper: small 1
square = _____
mm
7. ekg paper: larger 0.20
square = ________
second
8. ekg paper: larg- 5
er square = ______
mm
9. how is voltage along the vertical axis; 10 mm is 1 MV
measured on an
ekg strip?
10. 15 larger boxes 3
is how many sec-
onds?
, BSMH Advanced Arrhythmia Course
Study online at https://quizlet.com/_fdkco9
11. 30 larger boxes 6
is how many sec-
onds?
12. what does the P atrial depolarization (contraction); indicates the impulse originated in the SA
wave show? node, atria, or AV junction
13. P wave charac- 1st waveform on tracing, normally smooth and rounded, upright in lead 2, pre-
teristics cedes QRS
14. PR interval 0.12-0.20 seconds measured from beginning of P to beginning of QRS
15. what does a PR heart block
interval longer
than 0.20 imply?
16. what does the ventricular depolarization and atrial repolarization
QRS complex
show?
17. what is bundle obstruction in one of the branches of the bundle of his so the QRS is wider and
branch block? more than 0.12 seconds
18. nurse actions for place patient on oxygen, call the physician, call rapid response if needed, obtain
a bundle branch an EKG to determine if left or right
block
19. QRS characteris- composed of 3 waveforms, measures 0.06-0.12 seconds, positive deflection in
tics lead 2
20. Q wave 1st negative deflection after the P; may not be seen in real time
21. R wave 1st positive deflection after the P
, BSMH Advanced Arrhythmia Course
Study online at https://quizlet.com/_fdkco9
22. S wave negative deflection after the R
23. what does the T repolarization of ventricles
wave show?
24. T wave character- follows the QRS and ST segment, should be 5 mm or less in lead 2, usually smooth
istics and rounded, follows direction of R
25. QT interval time required for ventricular repolarization and depolarization; 0.36-0.44 seconds
26. U wave repolarization of the purkinje fibers
27. ST segment interval between the end of ventricular depolarization and beginning of repolar-
ization; should be on isoelectric line
28. what does it myocardial injury or death
mean if the ST
segment is ele-
vated?
29. what does it myocardial ischemia
mean if the ST
segment is de-
pressed?
30. normal sinus 60-100
rhythm rate
31. normal sinus regular
rhythm rhythm
32. normal sinus normal (upright and uniform)
rhythm p waves
