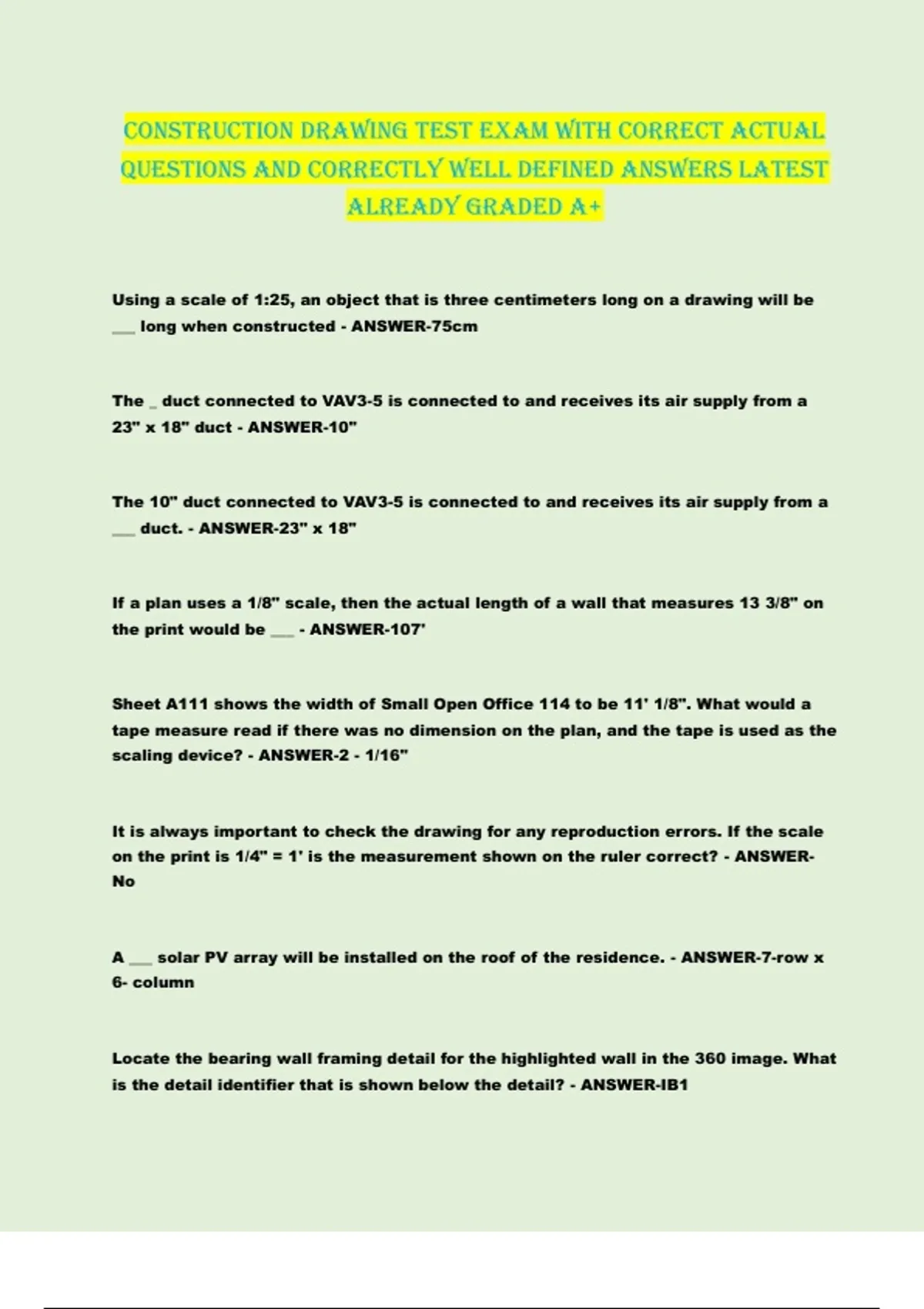

CONSTRUCTION DRAWING TEST EXAM WITH CORRECT ACTUAL
QUESTIONS AND CORRECTLY WELL DEFINED ANSWERS LATEST
ALREADY GRADED A+
Using a scale of 1:25, an object that is three centimeters long on a drawing will be
___ long when constructed - ANSWER-75cm
The _ duct connected to VAV3-5 is connected to and receives its air supply from a
23" x 18" duct - ANSWER-10"
The 10" duct connected to VAV3-5 is connected to and receives its air supply from a
___ duct. - ANSWER-23" x 18"
If a plan uses a 1/8" scale, then the actual length of a wall that measures 13 3/8" on
the print would be ___ - ANSWER-107'
Sheet A111 shows the width of Small Open Office 114 to be 11' 1/8". What would a
tape measure read if there was no dimension on the plan, and the tape is used as the
scaling device? - ANSWER-2 - 1/16"
It is always important to check the drawing for any reproduction errors. If the scale
on the print is 1/4" = 1' is the measurement shown on the ruler correct? - ANSWER-
No
A ___ solar PV array will be installed on the roof of the residence. - ANSWER-7-row x
6- column
Locate the bearing wall framing detail for the highlighted wall in the 360 image. What
is the detail identifier that is shown below the detail? - ANSWER-IB1
