Use the Fe-C phase diagram below: Given a Fe alloy containing 3.0 wt% C, determine the phase(s), the composition(s) of the phase(s), and the amounts of the phase(s) present at 1200°C. Solution Phase(s): γ and L Phase Compositions(s): Cγ= 1.9 wt% Fe CL= 3.9 wt% Fe Amounts of Phase(s): W L= C0−C CL−C = 3.0−1.9 3.9−1.9 =0.55 W = CL−C0 CL−C = 3.9−3.0 3.9−1.9 =0.45 This study source was downloaded by from CourseH on :20:24 GMT -05:00 This study source was downloaded by from CourseH on :20:24 GMT -05:00 Explain how you would identify the following on the given stress-strain curve: - Ultimate tensile strength - Elastic modulus - 0.2% offset yield strength

Show more Read less
Institution
Revision
Course
Revision

Content preview

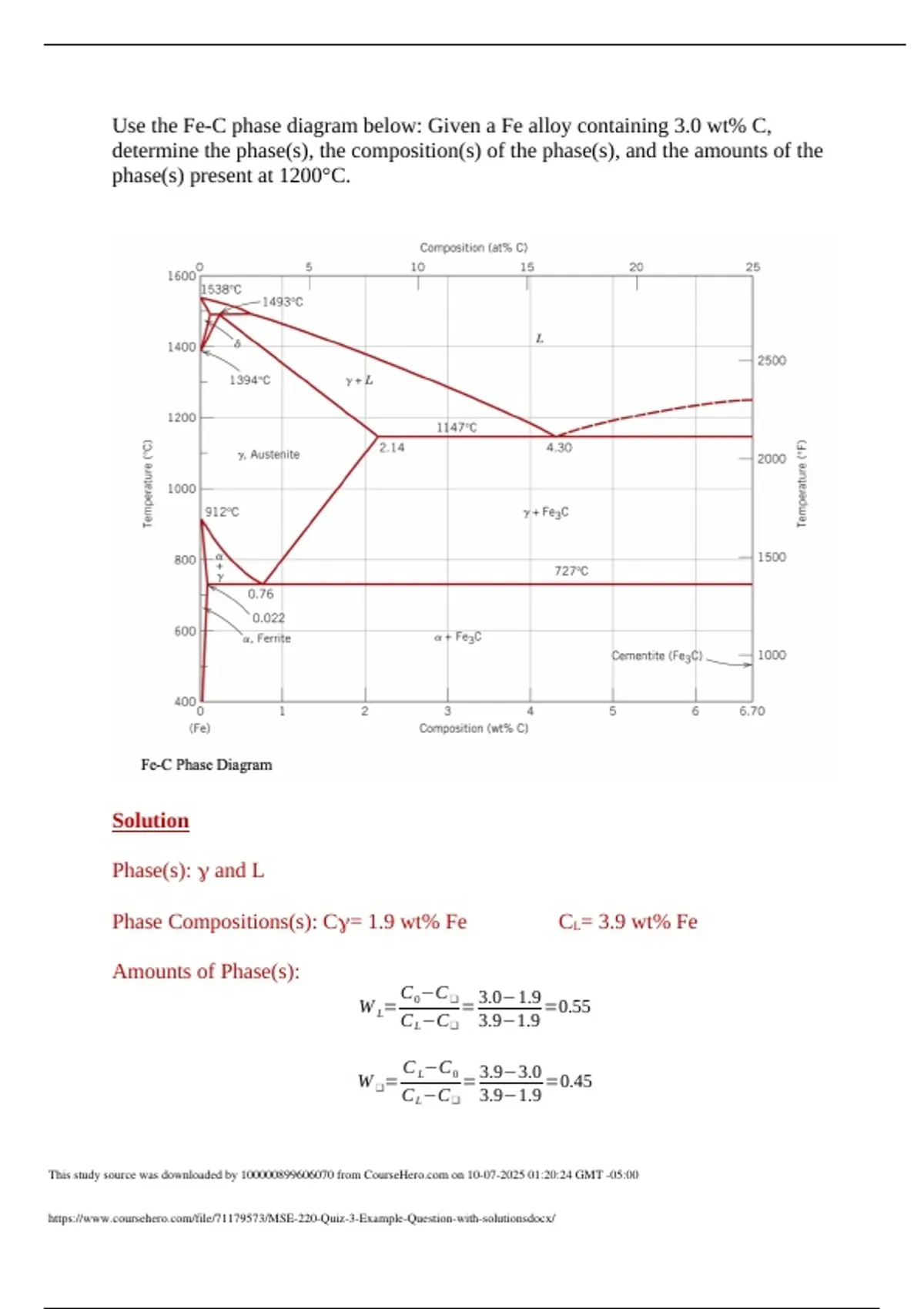

Use the Fe-C phase diagram below: Given a Fe alloy containing 3.0 wt% C,
determine the phase(s), the composition(s) of the phase(s), and the amounts of the
phase(s) present at 1200°C.




Solution

Phase(s): γ and L

Phase Compositions(s): Cγ= 1.9 wt% Fe CL= 3.9 wt% Fe

Amounts of Phase(s):
C 0−C ❑ 3.0−1.9
W L= = =0.55
C L −C❑ 3.9−1.9

C L−C 0 3.9−3.0
W ❑= = =0.45
C L −C❑ 3.9−1.9



This study source was downloaded by 100000899606070 from CourseHero.com on 10-07-2025 01:20:24 GMT -05:00


https://www.coursehero.com/file/71179573/MSE-220-Quiz-3-Example-Question-with-solutionsdocx/
