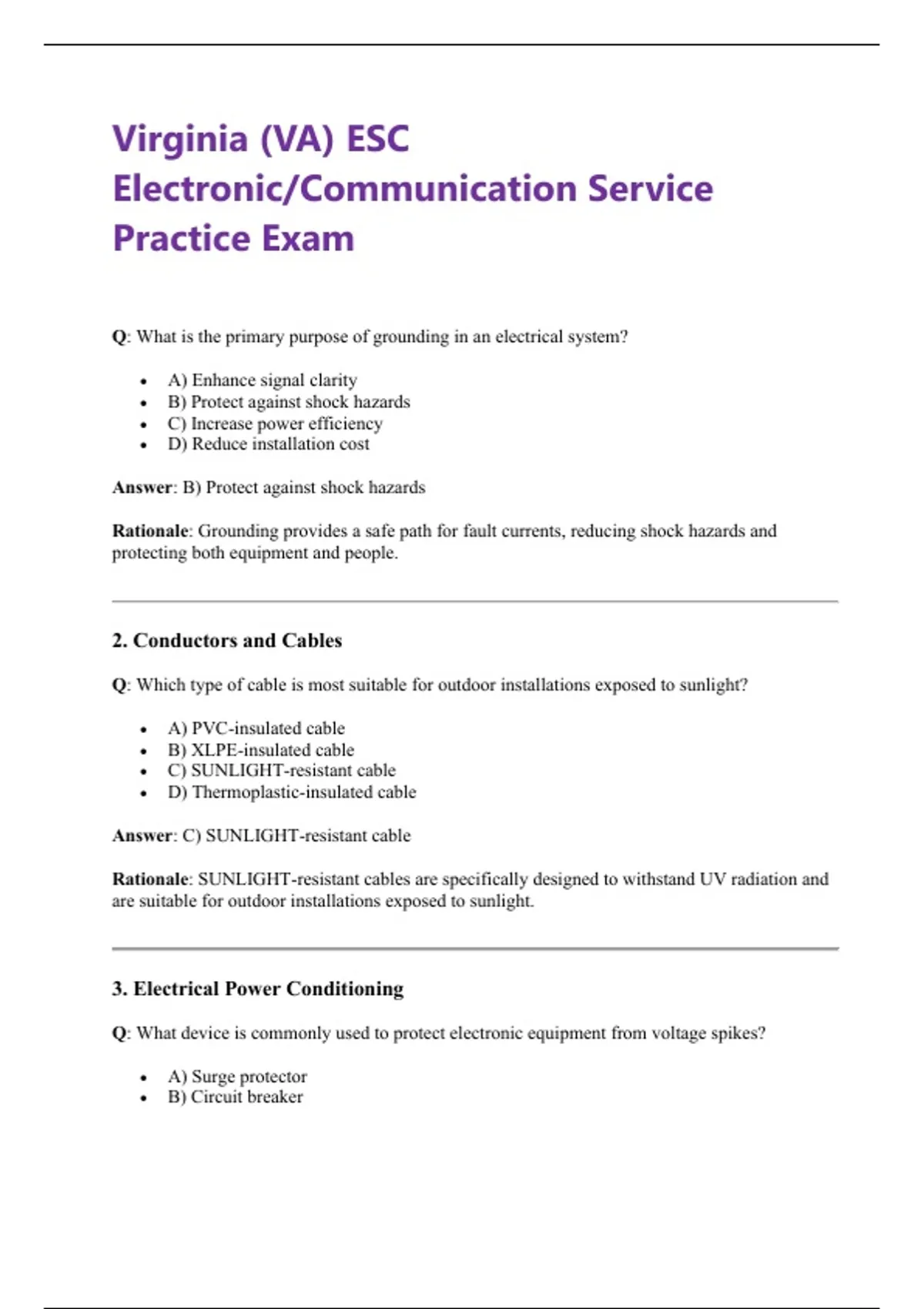

Virginia (VA) ESC
Electronic/Communication Service
Practice Exam
Q: What is the primary purpose of grounding in an electrical system?
• A) Enhance signal clarity
• B) Protect against shock hazards
• C) Increase power efficiency
• D) Reduce installation cost
Answer: B) Protect against shock hazards
Rationale: Grounding provides a safe path for fault currents, reducing shock hazards and
protecting both equipment and people.
2. Conductors and Cables
Q: Which type of cable is most suitable for outdoor installations exposed to sunlight?
• A) PVC-insulated cable
• B) XLPE-insulated cable
• C) SUNLIGHT-resistant cable
• D) Thermoplastic-insulated cable
Answer: C) SUNLIGHT-resistant cable
Rationale: SUNLIGHT-resistant cables are specifically designed to withstand UV radiation and
are suitable for outdoor installations exposed to sunlight.
3. Electrical Power Conditioning
Q: What device is commonly used to protect electronic equipment from voltage spikes?
• A) Surge protector
• B) Circuit breaker
, • C) Fuse
• D) Transformer
Answer: A) Surge protector
Rationale: A surge protector is designed to protect electronic equipment from voltage spikes by
diverting excess voltage to the ground.
4. Low Voltage Systems Under 50 Volts
Q: Which of the following systems typically operates at voltages under 50 volts?
• A) Telephone systems
• B) Residential lighting
• C) HVAC control systems
• D) Electric vehicle charging stations
Answer: A) Telephone systems
Rationale: Telephone systems typically operate at low voltages, often under 50 volts, making
them safer to handle and install.
5. TV Systems
Q: Which type of cable is commonly used for transmitting television signals?
• A) Coaxial cable
• B) Fiber optic cable
• C) Twisted pair cable
• D) Shielded twisted pair cable
Answer: A) Coaxial cable
Rationale: Coaxial cables are widely used for transmitting television signals due to their ability
to carry high-frequency signals with minimal interference.
Q: Which of the following is the main advantage of using shielded twisted pair (STP) cables for
audio systems?
, • A) Higher signal bandwidth
• B) Reduced electromagnetic interference (EMI)
• C) Lower installation cost
• D) Easier to terminate
Answer: B) Reduced electromagnetic interference (EMI)
Rationale: Shielded twisted pair cables include a metallic shield around the twisted pairs to
protect signals from EMI. This is particularly important in audio systems to prevent hums, noise,
and signal degradation.
7. Raceways and Enclosures
Q: When installing low-voltage cables in a metal raceway, what is the primary purpose of
grounding the raceway?
• A) To prevent voltage drop
• B) To reduce electromagnetic interference
• C) To provide a safe path for fault current
• D) To increase cable flexibility
Answer: C) To provide a safe path for fault current
Rationale: Metal raceways can conduct electricity if a fault occurs. Proper grounding ensures
that any fault current is safely directed to the earth, reducing shock hazards and potential fire
risks.
8. Computer and Data Systems
Q: Which category of twisted-pair cable supports Gigabit Ethernet over 100 meters?
• A) Cat 3
• B) Cat 5e
• C) Cat 6
• D) Cat 7
Answer: B) Cat 5e
Rationale: Category 5e (Cat 5e) cables are designed to handle Gigabit Ethernet (1000 Mbps)
over 100 meters, making them suitable for most commercial and residential networking
, installations. Higher categories (Cat 6/7) support higher bandwidths but are not required for
standard Gigabit Ethernet.
9. Testing Equipment
Q: Which instrument is used to measure voltage, current, and resistance in low-voltage
communication circuits?
• A) Multimeter
• B) Oscilloscope
• C) Network analyzer
• D) Time-domain reflectometer
Answer: A) Multimeter
Rationale: A multimeter is a versatile tool that measures electrical parameters such as voltage,
current, and resistance, making it essential for troubleshooting low-voltage circuits.
10. Telephone Systems
Q: What is the main reason for using a punch-down block in telephone wiring installations?
• A) To increase voltage supply
• B) To connect and terminate multiple wires neatly
• C) To convert analog signals to digital
• D) To amplify audio signals
Answer: B) To connect and terminate multiple wires neatly
Rationale: Punch-down blocks are used to terminate and interconnect telephone and data wiring
efficiently. They ensure reliable electrical connections while maintaining an organized
installation.
11. Fiber Optics
Q: What is the primary advantage of fiber optic cables over copper cables for communication
systems?
• A) Easier termination
