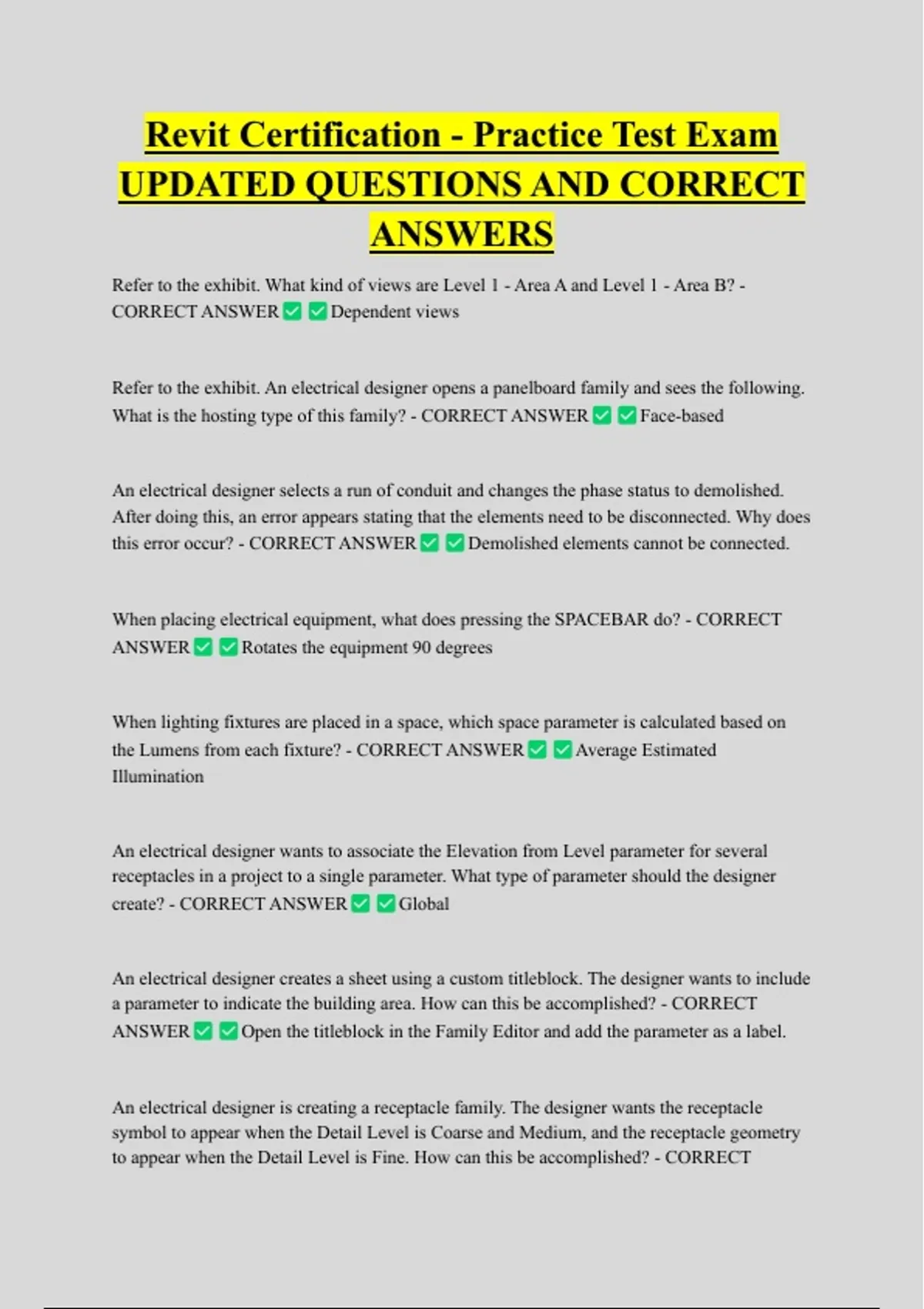

Revit Certification - Practice Test Exam
UPDATED QUESTIONS AND CORRECT
ANSWERS
Refer to the exhibit. What kind of views are Level 1 - Area A and Level 1 - Area B? -
CORRECT ANSWER Dependent views
Refer to the exhibit. An electrical designer opens a panelboard family and sees the following.
What is the hosting type of this family? - CORRECT ANSWER Face-based
An electrical designer selects a run of conduit and changes the phase status to demolished.
After doing this, an error appears stating that the elements need to be disconnected. Why does
this error occur? - CORRECT ANSWER Demolished elements cannot be connected.
When placing electrical equipment, what does pressing the SPACEBAR do? - CORRECT
ANSWER Rotates the equipment 90 degrees
When lighting fixtures are placed in a space, which space parameter is calculated based on
the Lumens from each fixture? - CORRECT ANSWER Average Estimated
Illumination
An electrical designer wants to associate the Elevation from Level parameter for several
receptacles in a project to a single parameter. What type of parameter should the designer
create? - CORRECT ANSWER Global
An electrical designer creates a sheet using a custom titleblock. The designer wants to include
a parameter to indicate the building area. How can this be accomplished? - CORRECT
ANSWER Open the titleblock in the Family Editor and add the parameter as a label.
An electrical designer is creating a receptacle family. The designer wants the receptacle
symbol to appear when the Detail Level is Coarse and Medium, and the receptacle geometry
to appear when the Detail Level is Fine. How can this be accomplished? - CORRECT
, ANSWER Adjust the Detail Levels in the Family Element Visibility Settings for the
geometry
Which tool will save the changes in a local model to the central model? - CORRECT
ANSWER Synchronize with Central tool
An electrical designer enables Section Box for a 3D view, but the section box is not visible in
the view. Which setting should the designer check? - CORRECT
ANSWER Visibility/Graphic Overrides
Which parameter will control the elevation of cable trays? - CORRECT
ANSWER Bottom Elevation
Refer to the exhibit. An electrical designer wants to export a schedule for use in Excel. When
the designer views the export option, it is unavailable. What should the designer do? -
CORRECT ANSWER Open a schedule view
An electrical designer is working in a project with a linked architectural Revit model. The
designer is unable to select the link. What is causing this condition? - CORRECT
ANSWER The Select Links option is disabled.
An electrical designer places hosted lighting fixtures in the ceiling of a linked architectural
model. The designer then removes the linked architectural model. What happens to the
lighting fixtures? - CORRECT ANSWER The lighting fixtures become orphaned.
An electrical designer is creating a receptacle family. The designer places an electrical
connector and sets the System Type to Power - Unbalanced. The designer wants to control the
Voltage of the electrical connector in the project. How can this be accomplished? -
CORRECT ANSWER Associate the Voltage parameter on the connector to a family
parameter.
An electrical designer needs to set the Connection Type for a circuit to Feed Through Lugs.
What does the designer need to do to enable this functionality? - CORRECT
ANSWER Select the panel and enable Feed Through Lugs in the Properties palette.
