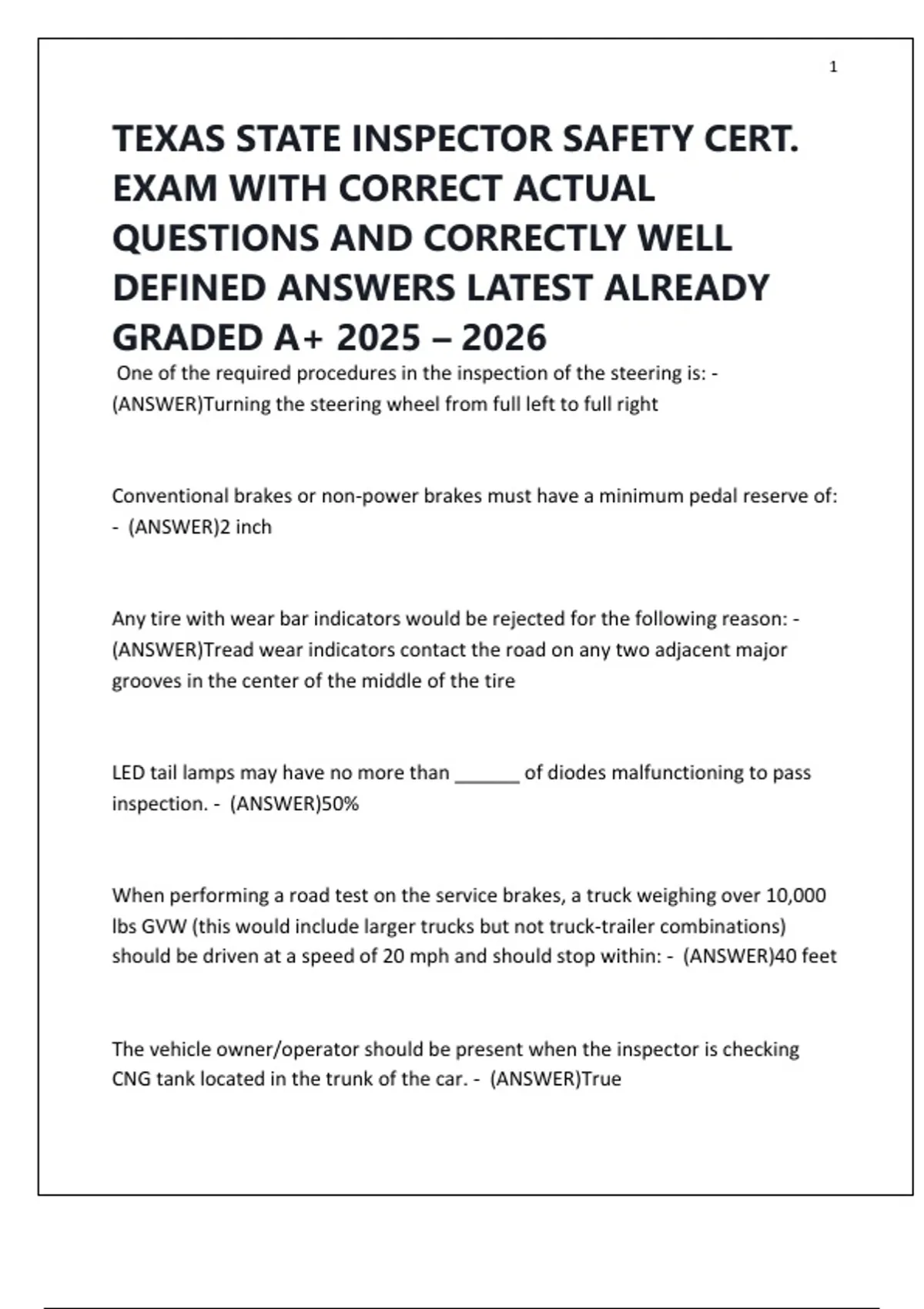

1
TEXAS STATE INSPECTOR SAFETY CERT.
EXAM WITH CORRECT ACTUAL
QUESTIONS AND CORRECTLY WELL
DEFINED ANSWERS LATEST ALREADY
GRADED A+ 2025 – 2026
One of the required procedures in the inspection of the steering is: -
(ANSWER)Turning the steering wheel from full left to full right
Conventional brakes or non-power brakes must have a minimum pedal reserve of:
- (ANSWER)2 inch
Any tire with wear bar indicators would be rejected for the following reason: -
(ANSWER)Tread wear indicators contact the road on any two adjacent major
grooves in the center of the middle of the tire
LED tail lamps may have no more than ______ of diodes malfunctioning to pass
inspection. - (ANSWER)50%
When performing a road test on the service brakes, a truck weighing over 10,000
lbs GVW (this would include larger trucks but not truck-trailer combinations)
should be driven at a speed of 20 mph and should stop within: - (ANSWER)40 feet
The vehicle owner/operator should be present when the inspector is checking
CNG tank located in the trunk of the car. - (ANSWER)True
, 2
Glass coating or sun screening materials on windshield may not extend down past
the AS-1 line or more than ____ inches, whichever is closer to the top of the
windshield: - (ANSWER)5 inches
Brakes would be rejected if: - (ANSWER)There is obvious metal to metal contact
when brakes are applied.
When issuing a Vehicle Inspection Report to a vehicle, the VIN will be taken from
the: - (ANSWER)Vehicle
Proof of financial responsibility is not required on motor vehicles prior to the
model year 1988. - (ANSWER)False
When is a vehicle required to be inspected for seat belts? - (ANSWER)Anchorages
were part of the manufactures original equipment
The turn signal selector switch must lock in the proper position when applied on: -
(ANSWER)All vehicles
A truck or trailer is required to have clearance lamps and side marker lamps if the
total width of the vehicle is: - (ANSWER)80 inches or more
In order to pass inspection, tires must have a tread depth of at least ___ in the
two center adjacent major grooves. - (ANSWER)2/32 inch
