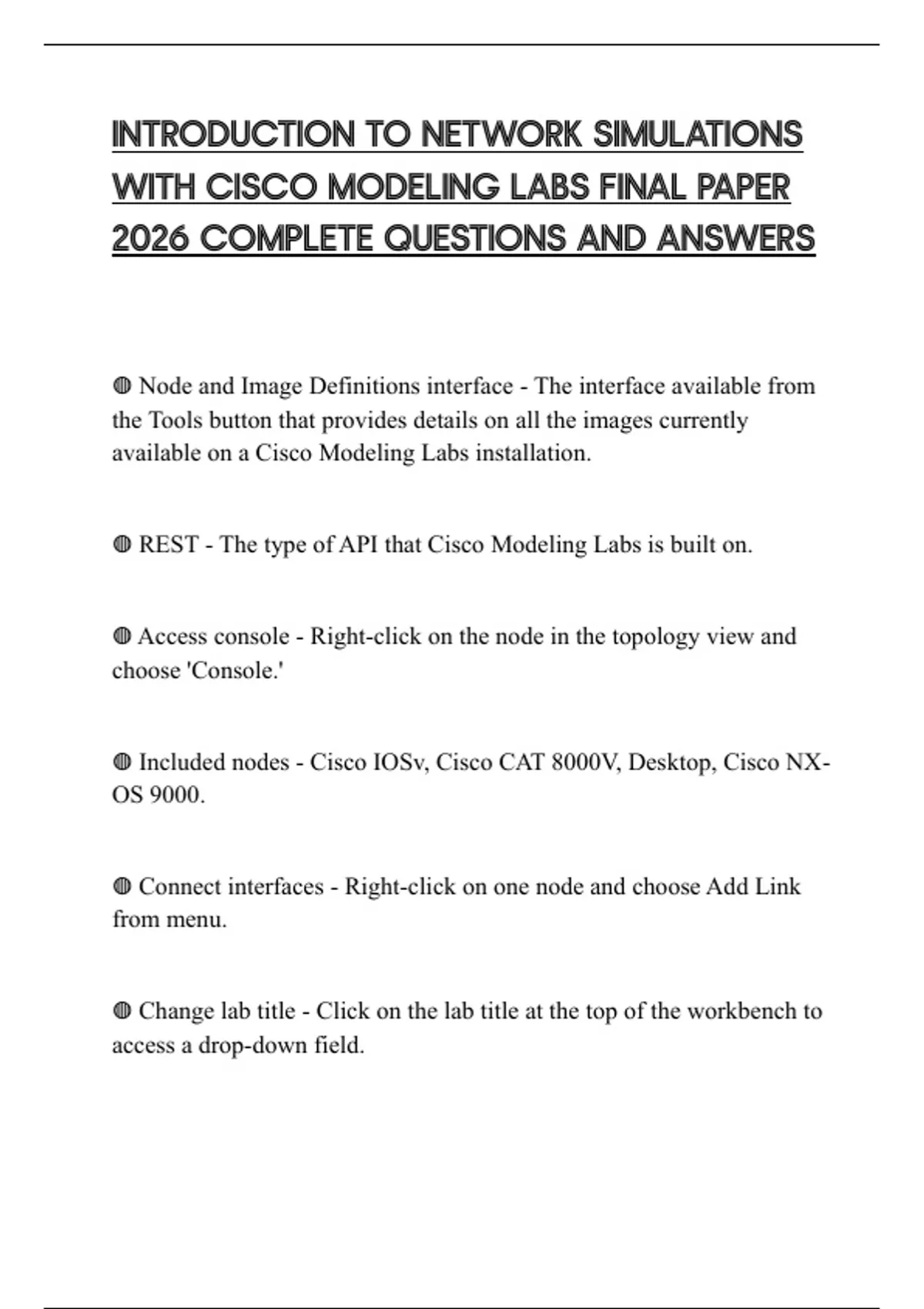

INTRODUCTION TO NETWORK SIMULATIONS WITH CISCO MODELING LABS FINAL PAPER 2026 COMPLETE QUESTIONS AND ANSWERS

INTRODUCTION TO NETWORK SIMULATIONS
WITH CISCO MODELING LABS FINAL PAPER
2026 COMPLETE QUESTIONS AND ANSWERS


◍ Node and Image Definitions interface - The interface available from
the Tools button that provides details on all the images currently
available on a Cisco Modeling Labs installation.


◍ REST - The type of API that Cisco Modeling Labs is built on.


◍ Access console - Right-click on the node in the topology view and
choose 'Console.'


◍ Included nodes - Cisco IOSv, Cisco CAT 8000V, Desktop, Cisco NX-
OS 9000.


◍ Connect interfaces - Right-click on one node and choose Add Link
from menu.


◍ Change lab title - Click on the lab title at the top of the workbench to
access a drop-down field.

, ◍ Start lab from workbench - 1) Use the Start button on the toolbar at
the top 2) Click on LAB in the toolbar and click Start Lab.


◍ Change startup configuration - Stop and wipe the node.


◍ Wipe a lab or node - Erase the resources associated with the virtual
machine for the node.


◍ Interface types - Console and VNC.


◍ PANES button - Workbench button used to provide access to open
console or VNC connections to nodes in a simulation.


◍ External Connector - Node type used to connect a lab simulation to
the 'real network' through the Cisco Modeling Lab server's network
interfaces.


◍ Berkeley Packet Filter (BPF) - Type of filter used to restrict the
packets captured on a link in Cisco Modeling Labs.


◍ NAT mode - Mode used to configure an external connector that was
being used to provide inbound management connectivity to simulated
hosts.
