Circuit Analysis Quiz UPDATED ACTUAL QUESTIONS AND CORRECT ANSWERS The current that flows from and back to the power supply in a parallel circuit is called _____ current. - Correct answersMain Line Which of the following is a formula for calculating total resistance in a parallel circuit? - Correct answersRT=1/(1/R1+1/R2+1/R3 Kirchhoff's Voltage Law for a series circuit says that the total voltage is equal to ________. - Correct answersThe sum of the voltage drops When the wire or foil strips inside a fuse melts. the fuse is said to be ________. - Correct answersBlown Which of the following is a type of circuit protection device? - Correct answersFuse

Show more Read less
Institution
Circuit
Course
Circuit

Content preview

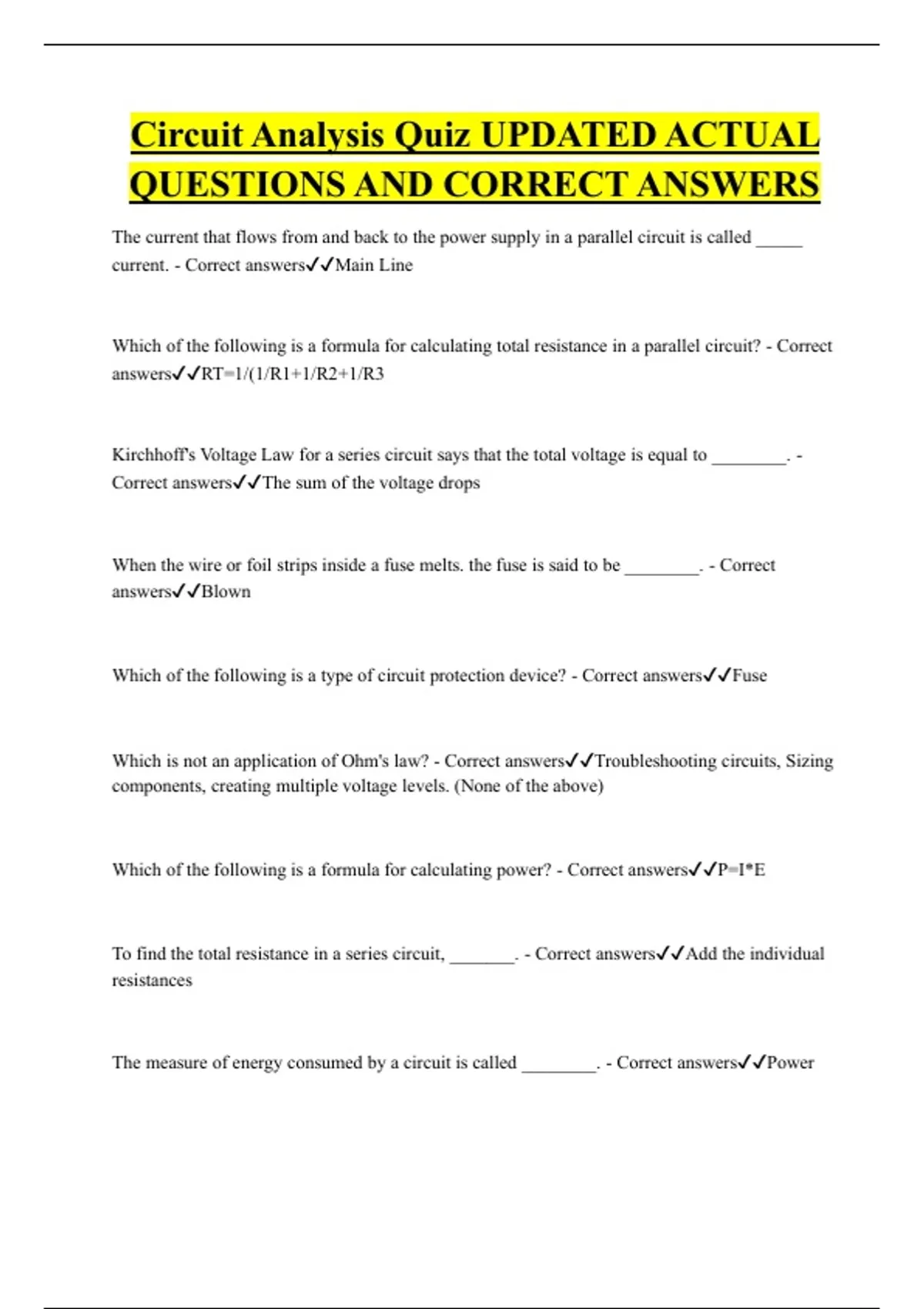

Circuit Analysis Quiz UPDATED ACTUAL
QUESTIONS AND CORRECT ANSWERS
The current that flows from and back to the power supply in a parallel circuit is called _____
current. - Correct answers✔✔Main Line



Which of the following is a formula for calculating total resistance in a parallel circuit? - Correct
answers✔✔RT=1/(1/R1+1/R2+1/R3



Kirchhoff's Voltage Law for a series circuit says that the total voltage is equal to ________. -
Correct answers✔✔The sum of the voltage drops



When the wire or foil strips inside a fuse melts. the fuse is said to be ________. - Correct
answers✔✔Blown



Which of the following is a type of circuit protection device? - Correct answers✔✔Fuse



Which is not an application of Ohm's law? - Correct answers✔✔Troubleshooting circuits, Sizing
components, creating multiple voltage levels. (None of the above)



Which of the following is a formula for calculating power? - Correct answers✔✔P=I*E



To find the total resistance in a series circuit, _______. - Correct answers✔✔Add the individual
resistances



The measure of energy consumed by a circuit is called ________. - Correct answers✔✔Power
