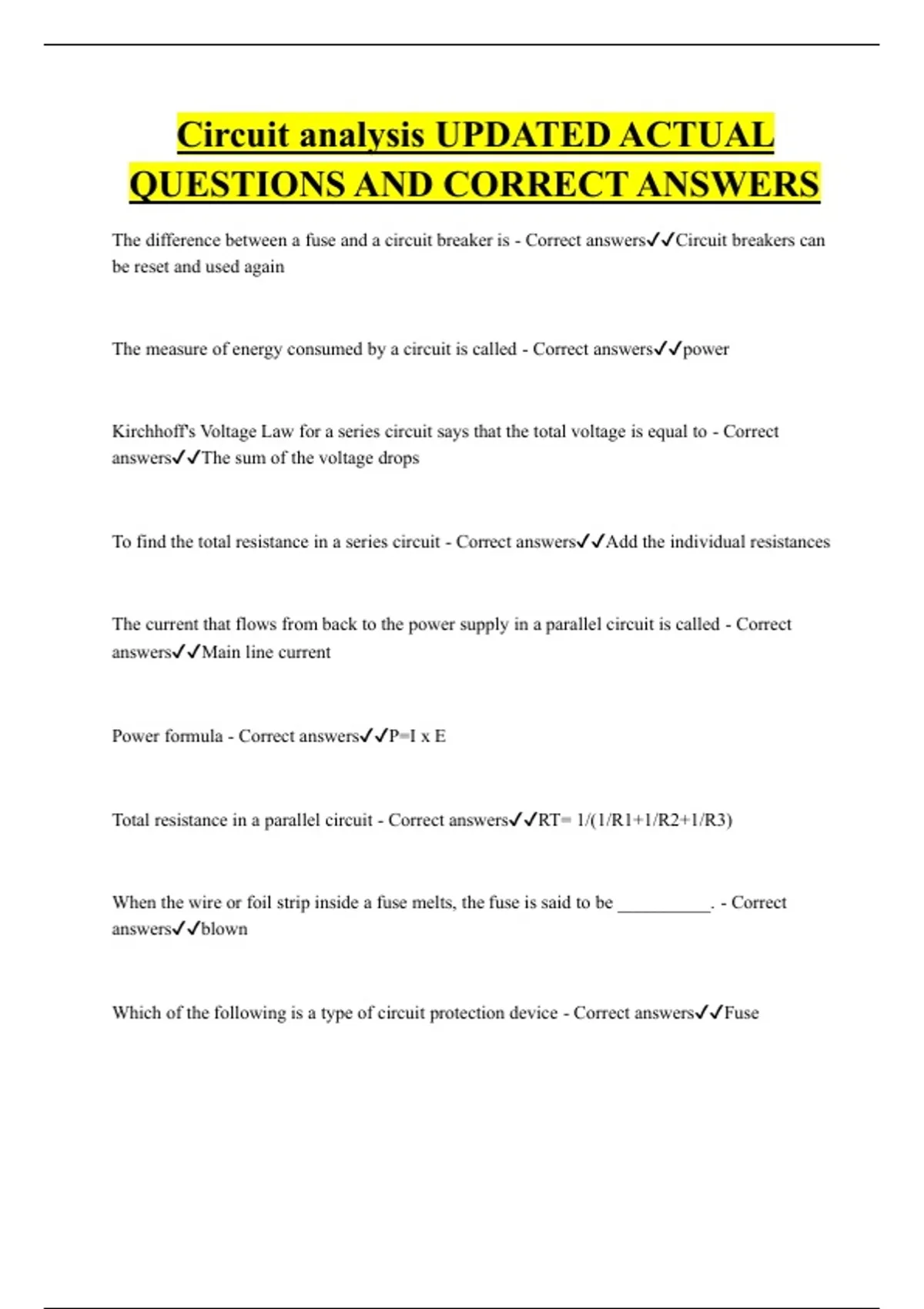

Circuit analysis UPDATED ACTUAL
QUESTIONS AND CORRECT ANSWERS
The difference between a fuse and a circuit breaker is - Correct answers✔✔Circuit breakers can
be reset and used again



The measure of energy consumed by a circuit is called - Correct answers✔✔power



Kirchhoff's Voltage Law for a series circuit says that the total voltage is equal to - Correct
answers✔✔The sum of the voltage drops



To find the total resistance in a series circuit - Correct answers✔✔Add the individual resistances



The current that flows from back to the power supply in a parallel circuit is called - Correct
answers✔✔Main line current



Power formula - Correct answers✔✔P=I x E



Total resistance in a parallel circuit - Correct answers✔✔RT= 1/(1/R1+1/R2+1/R3)



When the wire or foil strip inside a fuse melts, the fuse is said to be __________. - Correct
answers✔✔blown



Which of the following is a type of circuit protection device - Correct answers✔✔Fuse
