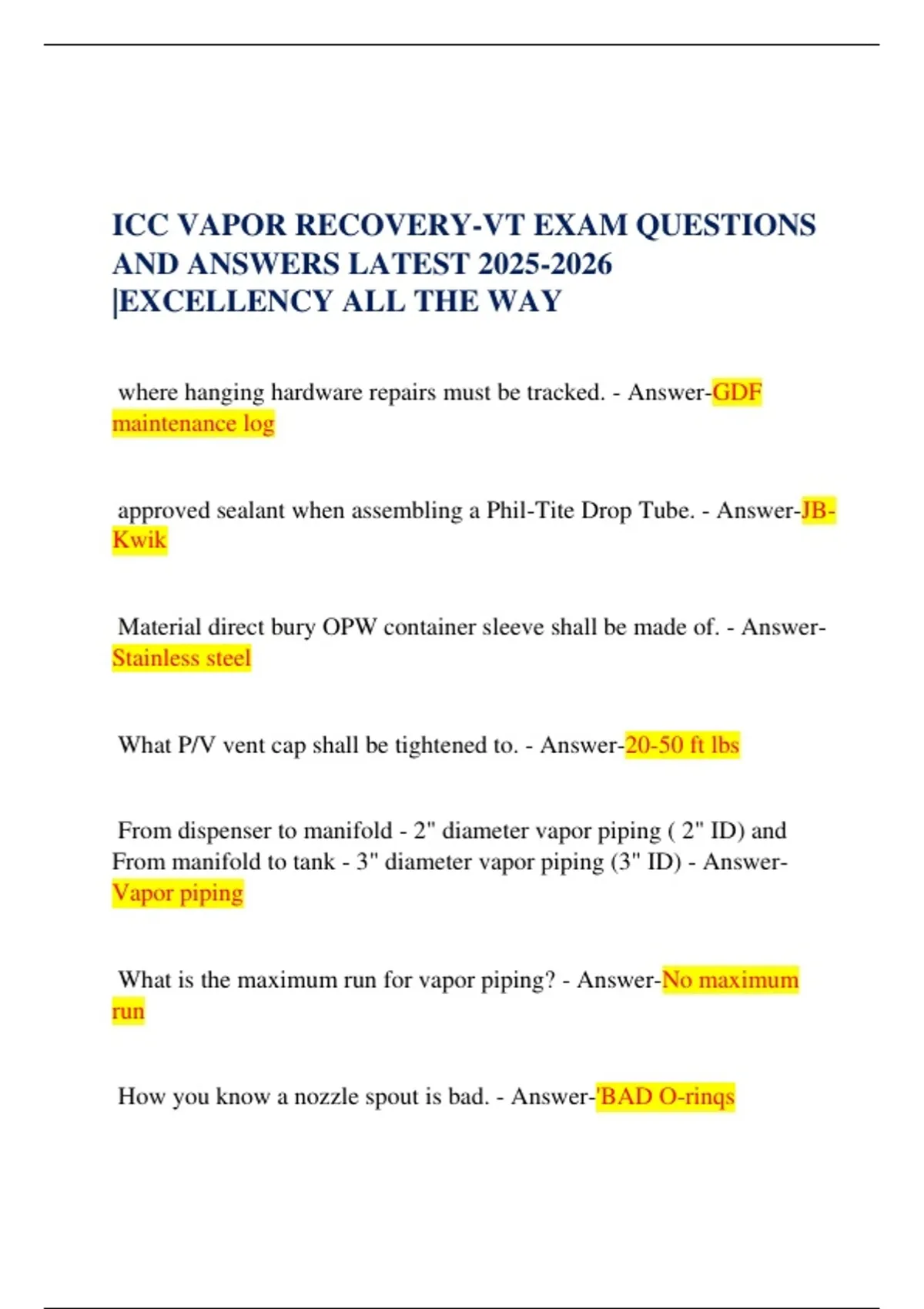

ICC VAPOR RECOVERY-VT EXAM QUESTIONS
AND ANSWERS LATEST 2025-2026
|EXCELLENCY ALL THE WAY
where hanging hardware repairs must be tracked. - Answer-GDF
maintenance log
approved sealant when assembling a Phil-Tite Drop Tube. - Answer-JB-
Kwik
Material direct bury OPW container sleeve shall be made of. - Answer-
Stainless steel
What P/V vent cap shall be tightened to. - Answer-20-50 ft lbs
From dispenser to manifold - 2" diameter vapor piping ( 2" ID) and
From manifold to tank - 3" diameter vapor piping (3" ID) - Answer-
Vapor piping
What is the maximum run for vapor piping? - Answer-No maximum
run
How you know a nozzle spout is bad. - Answer-'BAD O-rinqs
,According to PEI RP 300, on a balance Stage II vapor recovery system
nozzle, Vapors typically flow in what direction of the coaxial hose? -
Answer-The outside pathway
What is the maximum allowable number of P/V caps allowed on a UST
fuel system? - Answer-One
On a Healy Air Separator, there are four Ball Valves, the following
shall be observed? - Answer-One valve shall remain open on top
The Pressure settings for the UST Vent Cap is. - Answer-.0+- 0.5inches
H2O Negative Pressure 1,0+-2.0 inches H2O Positive Pressure
Type of sealant you should you use on a Phil-Tite Ball Float nipple: -
Answer-Pipe dope
Number of open valves on the clean air separator: - Answer-One
You must be CERTIFIED by Healy to re-connect a Healy breakaway,
True or False? - Answer-False
The type of pressure gauge is recommended to test Healy Vac -
Answer-SYSA gauge measuring 0-100 WC
, On new construction, after July 1, 2004, Can you install an in-ground
Spill Bucket? - Answer-YES-When Piping is monitored and with VAC
According to Executive Order 201 - Healy P/V Valve should be torqued
at - Answer-20-50 ft-lbs
For a fire to burn, these (3) three primary elements must exist: -
Answer-Fuel, Oxygen, Ignition Source
When working with Electrical - Lock Out Tag Out procedures are under
these guidelines. - Answer-CAL-OSHA
Organization that certifies vapor recovery systems. - Answer-CARB or
ARB
According to RP 500, a level II technician may NOT inspect this part. -
Answer-Replace VP 1000 Healy Pump
Given that in a balance Stage II vapor recovery system, the nozzle is
equipped with a flexible nozzle bellows that seals around the automobile
fill pipe. This is how vapors will typically flow. - Answer-From the
outside pathway of the coaxial hose
The Healy 1301 flow limiter shall be used when the flow rate exceeds
this. - Answer-10.0 GPM
