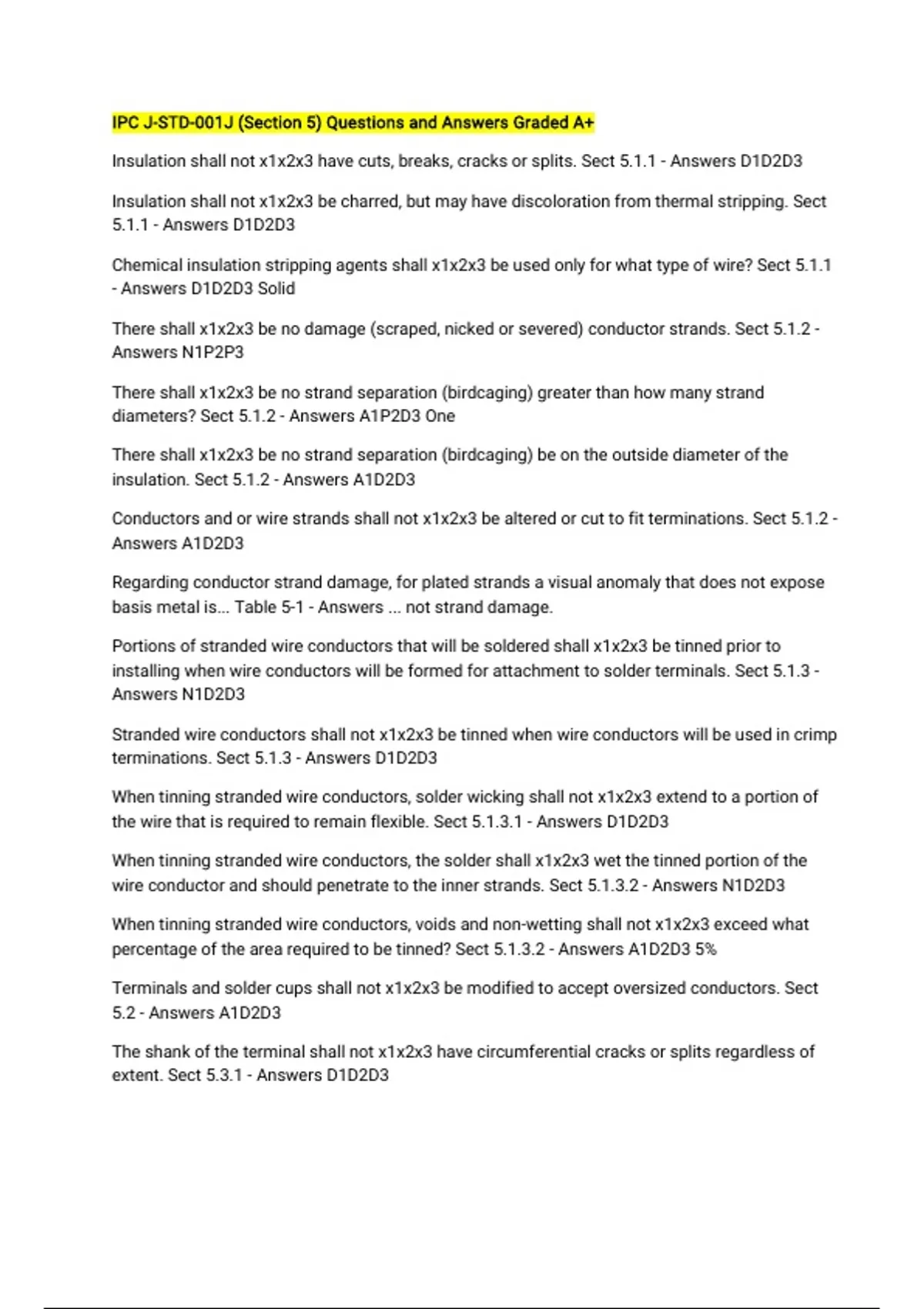

IPC J-STD-001J (Section 5) Questions and Answers Graded A+
Insulation shall not x1x2x3 have cuts, breaks, cracks or splits. Sect 5.1.1 - Answers D1D2D3
Insulation shall not x1x2x3 be charred, but may have discoloration from thermal stripping. Sect
5.1.1 - Answers D1D2D3
Chemical insulation stripping agents shall x1x2x3 be used only for what type of wire? Sect 5.1.1
- Answers D1D2D3 Solid
There shall x1x2x3 be no damage (scraped, nicked or severed) conductor strands. Sect 5.1.2 -
Answers N1P2P3
There shall x1x2x3 be no strand separation (birdcaging) greater than how many strand
diameters? Sect 5.1.2 - Answers A1P2D3 One
There shall x1x2x3 be no strand separation (birdcaging) be on the outside diameter of the
insulation. Sect 5.1.2 - Answers A1D2D3
Conductors and or wire strands shall not x1x2x3 be altered or cut to fit terminations. Sect 5.1.2 -
Answers A1D2D3
Regarding conductor strand damage, for plated strands a visual anomaly that does not expose
basis metal is... Table 5-1 - Answers ... not strand damage.
Portions of stranded wire conductors that will be soldered shall x1x2x3 be tinned prior to
installing when wire conductors will be formed for attachment to solder terminals. Sect 5.1.3 -
Answers N1D2D3
Stranded wire conductors shall not x1x2x3 be tinned when wire conductors will be used in crimp
terminations. Sect 5.1.3 - Answers D1D2D3
When tinning stranded wire conductors, solder wicking shall not x1x2x3 extend to a portion of
the wire that is required to remain flexible. Sect 5.1.3.1 - Answers D1D2D3
When tinning stranded wire conductors, the solder shall x1x2x3 wet the tinned portion of the
wire conductor and should penetrate to the inner strands. Sect 5.1.3.2 - Answers N1D2D3
When tinning stranded wire conductors, voids and non-wetting shall not x1x2x3 exceed what
percentage of the area required to be tinned? Sect 5.1.3.2 - Answers A1D2D3 5%
Terminals and solder cups shall not x1x2x3 be modified to accept oversized conductors. Sect
5.2 - Answers A1D2D3
The shank of the terminal shall not x1x2x3 have circumferential cracks or splits regardless of
extent. Sect 5.3.1 - Answers D1D2D3
