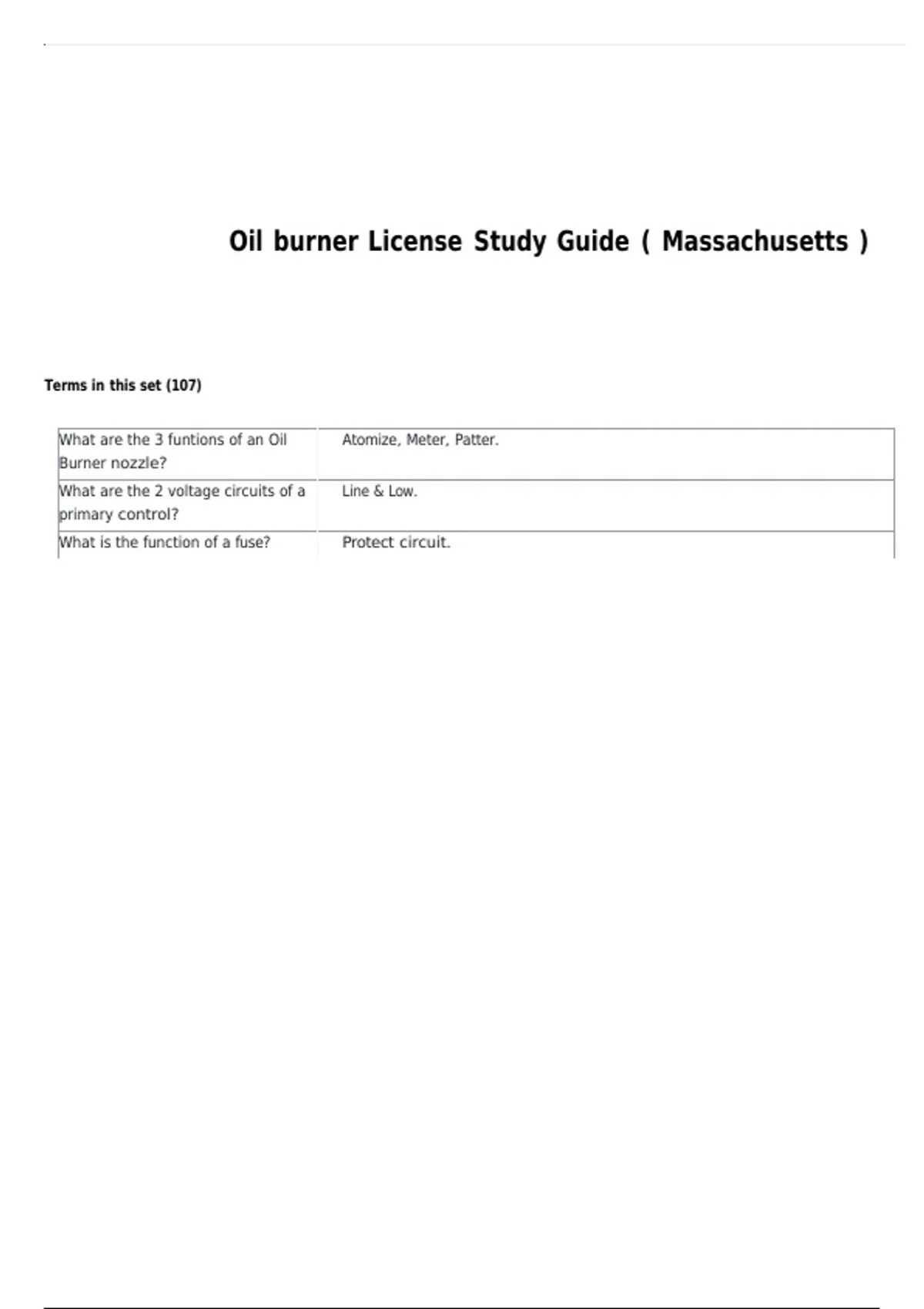

Oil burner License Study Guide ( Massachusetts )
Terms in this set (107)
What are the 3 funtions of an Oil Atomize, Meter, Patter.
Burner nozzle?
What are the 2 voltage circuits of a Line & Low.
primary control?
What is the function of a fuse? Protect circuit.
, What is the High Limit cut out? Max safe Temp or Pressure setting.
What is the High Limit cut in? Cut out minus Differential.
What is the "Max" Lockout time for 45 Seconds.
a burner with a 3 GPH Flow Rate?
What is the minimum stack 400 degrees F
temperature which will allow a
stack switch to work?
When do you apply a permit to 10 gallons.
store oil?
What is the "Main" function of an oil Prove Flame.
burner Primary Control?
Stack Relay must be reset after True.
lockout? True? or False?
What is the Required minimum 3 Feet.
height required for fill and vent
pipes?
What is the smallest vent pipe used 1 inch 1/4
for residential.
What size is the oil line for a 3/8
residential burner?
Largest oil capacity for residential 10,000 Gallons
without a license?
At what height ceiling would a 12'
second thermal switch be
required?
A typical residential oil burner is False
also s/u to run Kerosene True?
Or False?
Permit to install an oil burner is State Fire Marshall
issued by the?
Draft measurements are taken in Inches of water column
what?
Pressure Relief for a Hot Water 30 Psi
Boiler is?
Pressure Relief for a Steam Boiler is? 15 Psi
How many cubic feet of Air is 1,400
required for a 1 gallon nozzle?
If a power vent fails to start or Yes
shuts down during operation, will
this affect the burner? Yes? Or
No?
A Hot Water Boiler needs a low False
water cut off if over 300,000
B.T.U's?
What is the proper draft setting for .02 Inches WC
an oil burner?
