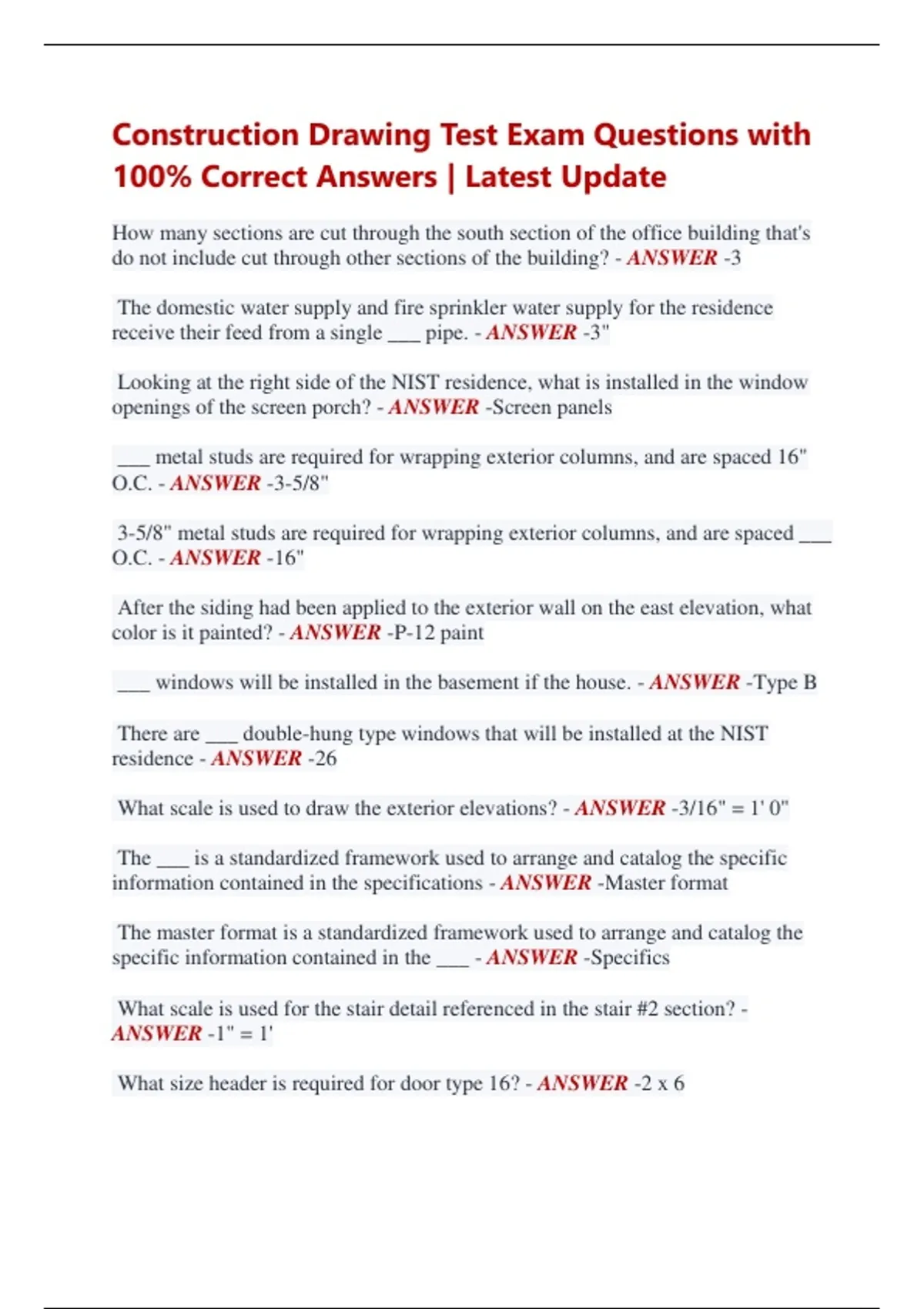

Construction Drawing Test Exam Questions with 100% Correct Answers | Latest Update How many sections are cut through the south section of the office building that's do not include cut through other sections of the building? - ANSWER -3 The domestic water supply and fire sprinkler water supply for the residence receive their feed from a single ___ pipe. - ANSWER -3" Looking at the right side of the NIST residence, what is installed in the window openings of the screen porch? - ANSWER -Screen panels ___ metal studs are required for wrapping exterior columns, and are spaced 16" O.C. - ANSWER -3-5/8" 3-5/8" metal studs are required for wrapping exterior columns, and are spaced ___ O.C. - ANSWER -16" After the siding had been applied to the exterior wall on the east elevation, what color is it painted? - ANSWER -P-12 paint ___ windows will be installed in the basement if the house. - ANSWER -Type B There are ___ double-hung type windows that will be installed at the NIST residence - ANSWER -26 What scale is used to draw the exterior elevations? - ANSWER -3/16" = 1' 0" The ___ is a standardized framework used to arrange and catalog the specific information contained in the specifications - ANSWER -Master format The master format is a standardized framework used to arrange and catalog the specific information contained in the ___ - ANSWER -Specifics What scale is used for the stair detail referenced in the stair #2 section? - ANSWER -1" = 1' What size header is required for door type 16? - ANSWER -2 x 6 You are designed to provide the electrical circuit for Domestic Water Heater 2 and need to gather information about the heater. Select the fact listed below that does not describe the water heater. - ANSWER -The input KW is 4.0 Because of the LEED building requirements, the estimated amount of waste on the rough carpentry on the NIST project is to remain ___ - ANSWER -10% or less What are the circuit voltage, the calculated load, and the size of the overcurrent protective device for the DWH-2? - ANSWER -Circuit Voltage = 240V Calculated Load = 14.6A Size of the overcurrent protective device = 20A HD fusible switches rated at 240v to 600v and sized 1200 amperes or less must have a lockable handle with the capacity to accept ___ padlocks - ANSWER -3 Electrical devices for instrument power must be ___ in color - ANSWER -Grey Using the 2004 edition of the MasterFormat, the section detailing specifications for a roof design that specifies concrete roof tiles is located in the ___ subgroup - ANSWER -Facility construction At ___ above the third stair tread is the bottom of the wall sconce mounted adjacent to the entry stairway - ANSWER -80" In the NIST residence master bedroom, which direction would you be looking when viewing the wall on interior elevation 2? - ANSWER -West Using the 2004 edition of the MasterFormat, the section listing site electrical utilities performance requirements is located in the ___ subgroup. - ANSWER General requirements ___ load-beating columns are used to support the breezeway roof. - ANSWER -4 A siding sample must be provided with the product submittal for each type, color, texture, and pattern required. - ANSWER -The siding sample must be the actual width and a 12" length The identification of lines another symbol on the construction drawing is called the - ANSWER -Legend On the drying a project is identified by the__________ found in the title block - ANSWER -Sheet title A dimension is a measurement written a - ANSWER -Number To clarify information that cannot be shown on the drawing the architectural and engineering firm will prepare - ANSWER -Specifications Grid lines are used to - ANSWER -Make it easier to refer to specific locations on the plan Site plans are developed using an - ANSWER -Engineers scale To avoid confusion the letters I and Q and the number one and zero are omitted from the - ANSWER -Gridlines system The architect scale is used for drawing - ANSWER -Floorplans Brake lines are used to show that - ANSWER -Only part of an object is represented to save space Information about the structure or assembly is provided in the - ANSWER -Title block Plan to use for work that has to do a good traction in or on the earth are called - ANSWER -Civil plans A Kino is a number or letter that is used with a leader and arrowhead to identify a specific it usually appears in - ANSWER -A square or circle The material to be used for wallaby found on the - ANSWER -Structural plans In the alphabet of line in area not included in the cut in line view shown with - ANSWER -Section cuts To clarify any discrepancies in the plan the foreman should use a - ANSWER RFI
