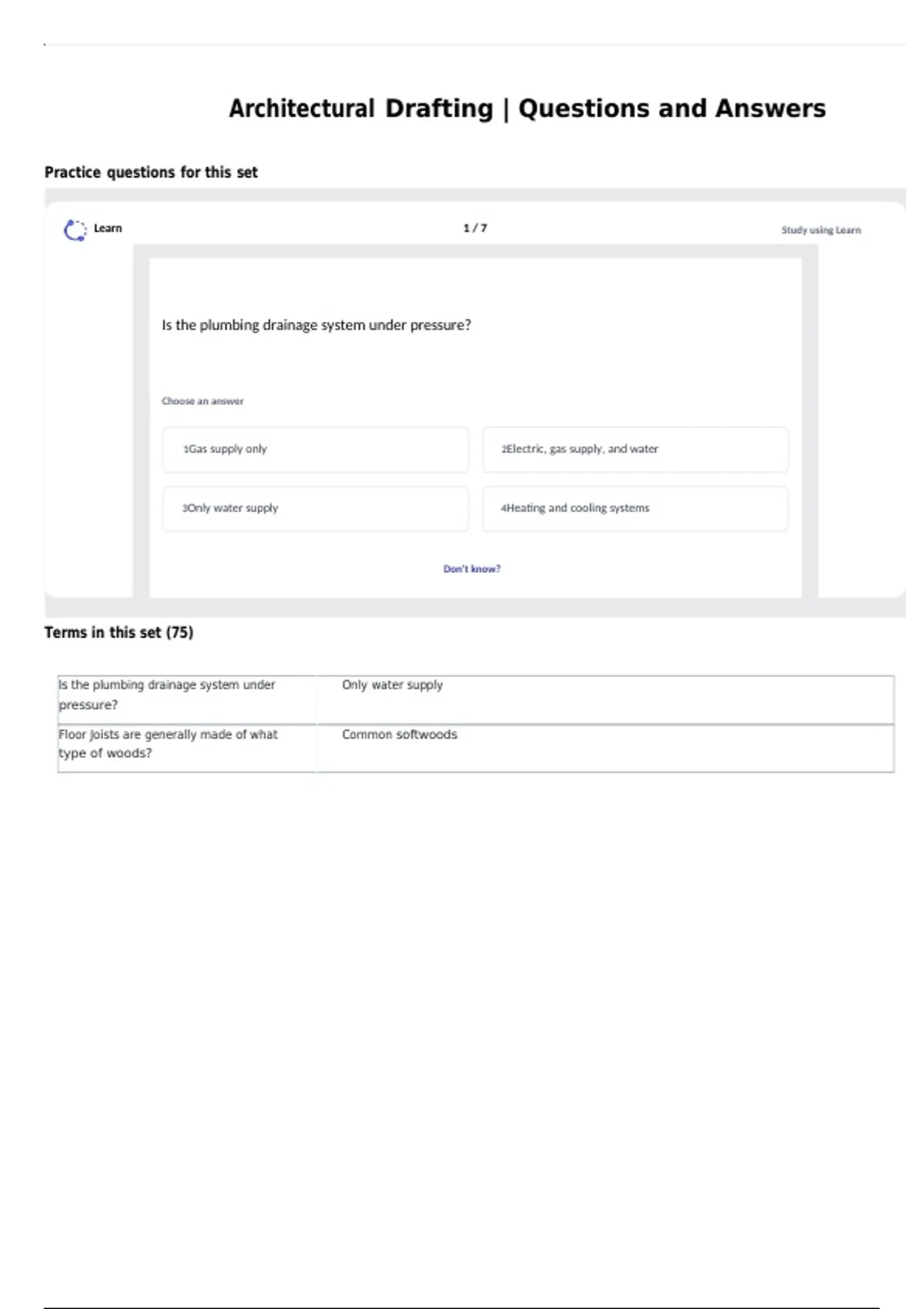

Architectural Drafting | Questions and Answers
Practice questions for this set
Learn 1/7 Study using Learn
Is the plumbing drainage system under pressure?
Choose an answer
1Gas supply only 2Electric, gas supply, and water
3Only water supply 4Heating and cooling systems
Don't know?
Terms in this set (75)
Is the plumbing drainage system under Only water supply
pressure?
Floor Joists are generally made of what Common softwoods
type of woods?
, Floor Joists are usually spaced at what 12,16 or 24" apart
intervals?
Between Beams and Girders, which carries Beams sit on Girders
which?
Joists usually are carried by? The beams that sit on girders
Columns carry mostly vertical loads Down to
directly to what part of the building? the
foundation
Bridging is used where to stiffen the floor Yes
and spread the loads.
The R-Value is a method of rating the For heat
resistance of what through building flow to prevent heat from coming thru the walls.
materials.
In a Post and Beam building , what role Only to hold up itself
does curtain walls play?
What is the chief advantage of a pocket requires no space along a wall when opened
door ?
A typical overhead garage door will 7' high for cars
usually be how high?
. A residence may have one of two 120 and 240 volt
voltage service which are?
Most convenience outlets are usually what 18" above the
certain height above the floor? floor
4. What device opens the circuit The
automatically on a predetermined circuit breaker
overload of current?
Landscaping will have what effect on a Keep if shaded and
building's inside comfort level? cooler
How does the color of roofing affect the The
efficiency of the temperature control lighter the less heat is absorbed needing more AC for comfort
system?
The service box is not the main distribution The electric
point for electricity in a residence. breaker panel is.
A presentation model is made for what For sales or marketing
purpose?
Weather stripping has what main benefit none
of heat gain or loss?
Is the R rating for insulation the inverse of yes
the U factor?
Passive solar systems use pumps or fans No fans or pumps needed
to distribute heat.
Isometric and oblique drawings are what Axonometric
types of drawings?
Name a type of 3D pictorial drawing perspective
commonly used for communication
purposes ?
