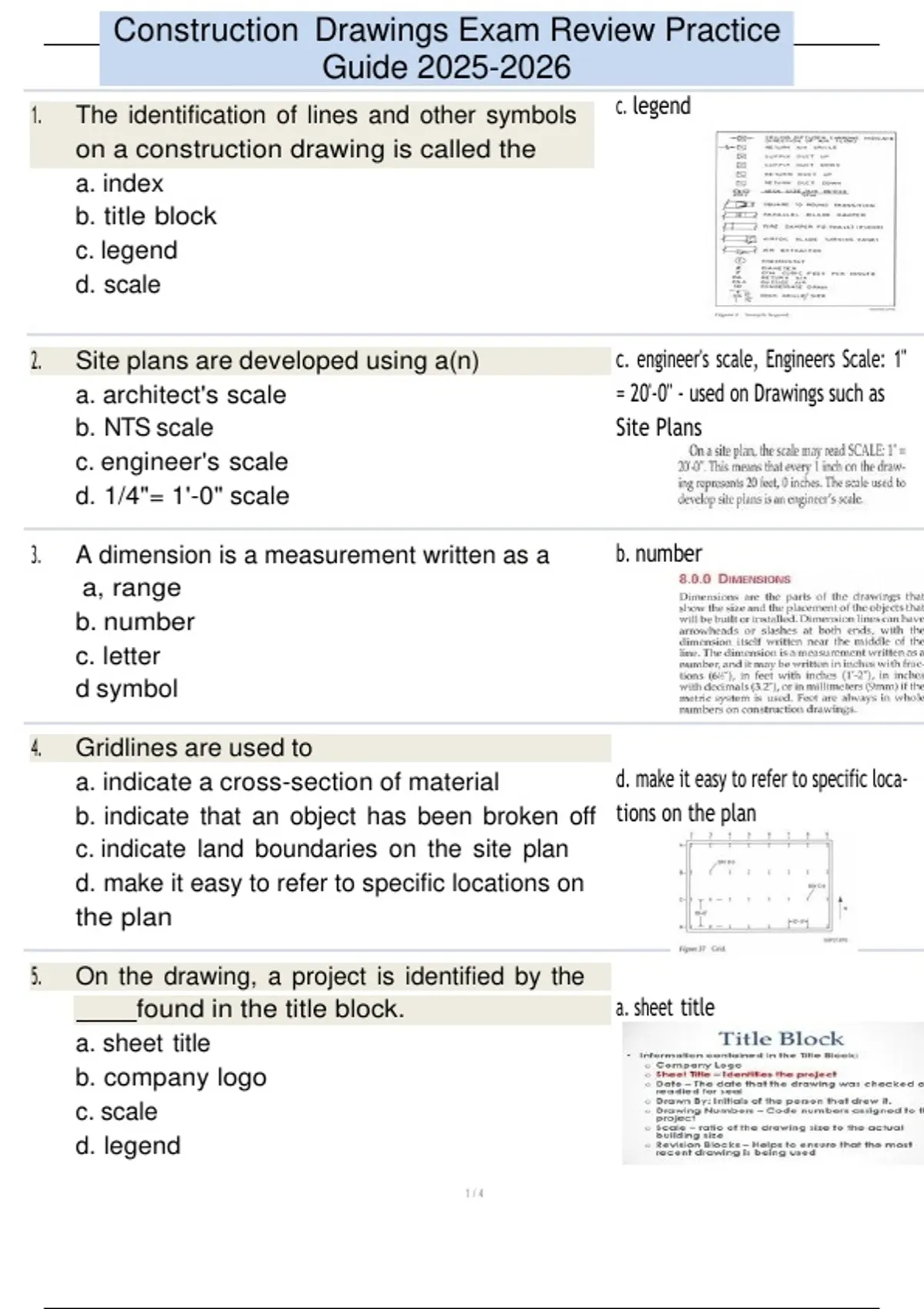

Construction Drawings Exam Review Practice
Guide 2025-2026
1. The identification of lines and other symbols c. legend
on a construction drawing is called the
a. index
b. title block
c. legend
d. scale
2. Site plans are developed using a(n) c. engineer's scale, Engineers Scale: 1"
a. architect's scale = 20'-0" - used on Drawings such as
b. NTS scale Site Plans
c. engineer's scale
d. 1/4"= 1'-0" scale
3. A dimension is a measurement written as a b. number
a, range
b. number
c. letter
d symbol
4. Gridlines are used to
a. indicate a cross-section of material d. make it easy to refer to specific loca-
b. indicate that an object has been broken off tions on the plan
c. indicate land boundaries on the site plan
d. make it easy to refer to specific locations on
the plan
5. On the drawing, a project is identified by the
found in the title block. a. sheet title
a. sheet title
b. company logo
c. scale
d. legend
1/4
