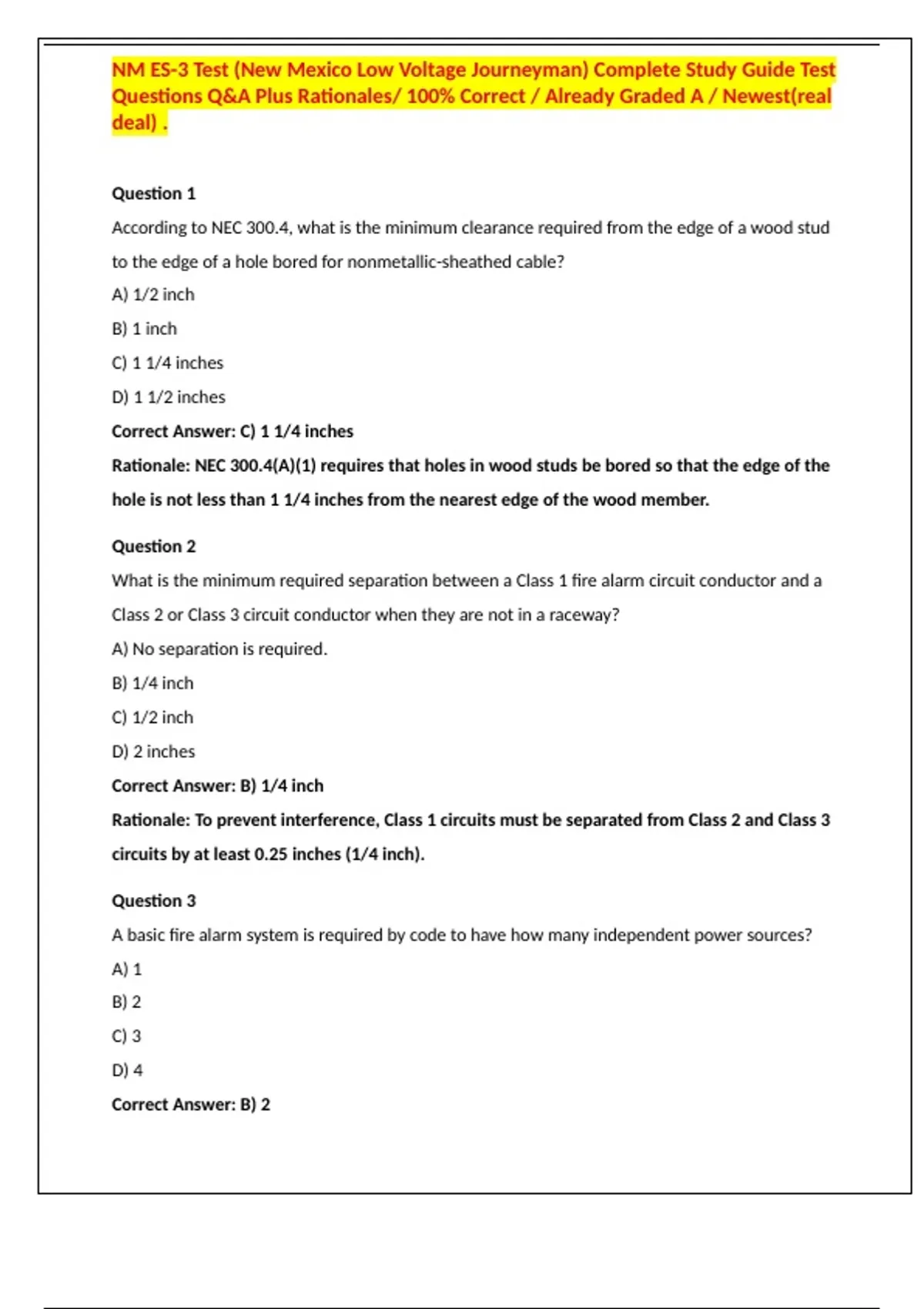

NM ES-3 Test (New Mexico Low Voltage Journeyman) Complete Study Guide Test Questions Q&A Plus Rationales/ 100% Correct / Already Graded A / Newest(real deal) .

NM ES-3 Test (New Mexico Low Voltage Journeyman) Complete Study Guide Test
Questions Q&A Plus Rationales/ 100% Correct / Already Graded A / Newest(real
deal) .


Question 1
According to NEC 300.4, what is the minimum clearance required from the edge of a wood stud
to the edge of a hole bored for nonmetallic-sheathed cable?
A) 1/2 inch
B) 1 inch
C) 1 1/4 inches
D) 1 1/2 inches
Correct Answer: C) 1 1/4 inches
Rationale: NEC 300.4(A)(1) requires that holes in wood studs be bored so that the edge of the
hole is not less than 1 1/4 inches from the nearest edge of the wood member.

Question 2
What is the minimum required separation between a Class 1 fire alarm circuit conductor and a
Class 2 or Class 3 circuit conductor when they are not in a raceway?
A) No separation is required.
B) 1/4 inch
C) 1/2 inch
D) 2 inches
Correct Answer: B) 1/4 inch
Rationale: To prevent interference, Class 1 circuits must be separated from Class 2 and Class 3
circuits by at least 0.25 inches (1/4 inch).

Question 3
A basic fire alarm system is required by code to have how many independent power sources?
A) 1
B) 2
C) 3
D) 4
Correct Answer: B) 2

,Rationale: Fire alarm systems require a primary power source (usually commercial AC power)
and a secondary power source (such as batteries or a generator) to ensure operation during a
power failure.

Question 4
What is the minimum required clearance between an uninsulated 250-volt electrical line and a
receiving antenna?
A) 1 Foot
B) 2 Feet
C) 3 Feet
D) 6 Feet
Correct Answer: B) 2 Feet
Rationale: NEC 810.13 specifies a minimum clearance of 2 feet between receiving antennas
and open conductors of electric light or power circuits not exceeding 250 volts.

Question 5
According to NEC 800.44(A)(4), what is the minimum separation distance that must be
maintained between communications cables and electric, light, or power conductors?
A) 1/4 inch
B) 1 inch
C) 2 inches
D) 6 inches
Correct Answer: C) 2 inches
Rationale: A minimum separation of 2 inches must be maintained between communication
cables and power conductors to prevent electrical interference and potential hazards.

Question 6
What is the maximum flash rate for a fire alarm strobe light, as specified by NFPA 72?
A) 1 flash per second
B) 2 flashes per second
C) 3 flashes per second

,D) 4 flashes per second
Correct Answer: B) 2 flashes per second
Rationale: NFPA 72 18.5.2.1 limits the maximum flash rate to two flashes per second (2 Hz) to
prevent triggering photosensitive seizures.

Question 7
According to NFPA 72, a voice alarm system must repeat an evacuation message a minimum of
how many times?
A) 1
B) 2
C) 3
D) 4
Correct Answer: B) 2
Rationale: NFPA 72 24.4.1.2.1 requires that a voice message for evacuation be repeated at
least two times to ensure occupants hear and understand the instructions.

Question 8
What is the minimum required mounting height from the floor to the activating part of a
manual fire alarm pull station?
A) 3 feet (36 inches)
B) 3 1/2 feet (42 inches)
C) 4 feet (48 inches)
D) 5 feet (60 inches)
Correct Answer: B) 3 1/2 feet (42 inches)
Rationale: To be accessible, the operable part of a manual pull station must be located at least
42 inches and not more than 48 inches above the finished floor.

Question 9
An overhead feeder conductor must have a minimum clearance of how many feet from
chimneys, radio, and television antennas?
A) 1 Foot

, B) 2 Feet
C) 3 Feet
D) 5 Feet
Correct Answer: C) 3 Feet
Rationale: NEC 225.19(B) requires overhead conductors to have a vertical clearance of not less
than 3 feet above or below building features like antennas.

Question 10
The National Electrical Code (NEC) defines a "Continuous Load" as a load where the maximum
current is expected to continue for how many hours or more?
A) 1 hour
B) 2 hours
C) 3 hours
D) 8 hours
Correct Answer: C) 3 hours
Rationale: The NEC defines a continuous load as one that runs at its maximum current for 3
hours or more. This is important for calculating conductor and overcurrent protection sizes.

Question 11
What is the minimum required headroom of working space above service equipment or
panelboards?
A) 6 feet
B) 6 feet, 3 inches
C) 6.5 feet (6 feet, 6 inches)
D) 7 feet
Correct Answer: C) 6.5 feet (6 feet, 6 inches)
Rationale: The NEC requires a minimum headroom of 6.5 feet, or the height of the
equipment, whichever is greater, in the working space around electrical equipment.

Question 12
What is the minimum required separation between communication cables and lightning
