1|Page

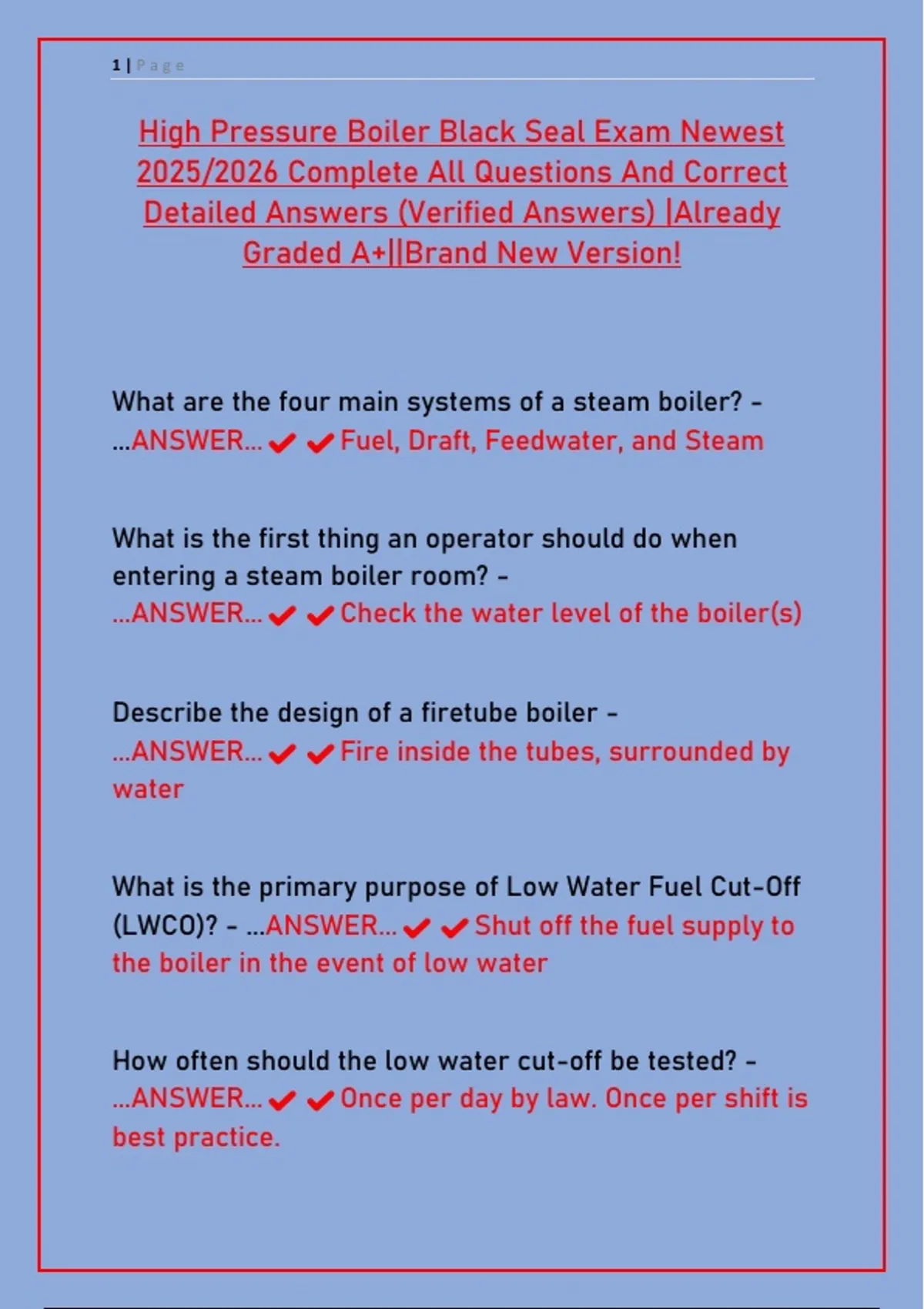

High Pressure Boiler Black Seal Exam Newest
2025/2026 Complete All Questions And Correct
Detailed Answers (Verified Answers) |Already
Graded A+||Brand New Version!
What are the four main systems of a steam boiler? -
...ANSWER...✔✔Fuel, Draft, Feedwater, and Steam
What is the first thing an operator should do when
entering a steam boiler room? -
...ANSWER...✔✔Check the water level of the boiler(s)
Describe the design of a firetube boiler -
...ANSWER...✔✔Fire inside the tubes, surrounded by
water
What is the primary purpose of Low Water Fuel Cut-Off
(LWCO)? - ...ANSWER...✔✔Shut off the fuel supply to
the boiler in the event of low water
How often should the low water cut-off be tested? -
...ANSWER...✔✔Once per day by law. Once per shift is
best practice.
,2|Page
What is an alternative way to verify water level without
using the gauge glass? - ...ANSWER...✔✔Using the
Try Cocks
What is sensible heat? - ...ANSWER...✔✔A change in
temperature without a change in matter
What unit is used in our industry to measure heat? -
...ANSWER...✔✔BTU's
Describe thermal expansion - ...ANSWER...✔✔The
tendency of matter to change in volume in response to
a change in temperature
What is the most important rule of safe boiler
operation? - ...ANSWER...✔✔Maintain water level
What type of heat is a larger exchange of BTU's and
results in a change in matter without changing
temperature? - ...ANSWER...✔✔Latent Heat
Which temperature scale is used by the majority of the
world? - ...ANSWER...✔✔Celcius
,3|Page
How often, by law, must a boiler be inspected? -
...ANSWER...✔✔Annually
A change in temperature is an example of: -
...ANSWER...✔✔Sensible heat
How many BTU's does it take to change one pound of
water into one pound of steam? -
...ANSWER...✔✔970.3
What type of heat is a larger exchange of BTU's? -
...ANSWER...✔✔Latent Heat
What is the most common fuel oil used in boilers? -
...ANSWER...✔✔#2
What are the 4 fundamentals of combustion? -
...ANSWER...✔✔Mixture, Atomization, Time,
Temperature
What PH level is ideal in boiler operation? -
...ANSWER...✔✔10-11.5
, 4|Page
Visible black smoke coming from the boiler stack would
most likely be an indication of: - ...ANSWER...✔✔A
lack of air in the combustion process
Which type of valve allows the flow of feedwater in one
direction only? - ...ANSWER...✔✔Check Valve
Which two minerals contribute to scale? -
...ANSWER...✔✔Calcium and Magnesium
What device is used to measure draft? -
...ANSWER...✔✔Manometer
What is the purpose of a safety valve? -
...ANSWER...✔✔Prevent overpressure of the boiler
What type of draft fan would be located in between the
chimney and the boiler furnace? -
...ANSWER...✔✔Induced Draft Fan
What valve is allowed between the safety valve and the
boiler? - ...ANSWER...✔✔No Valve Ever
